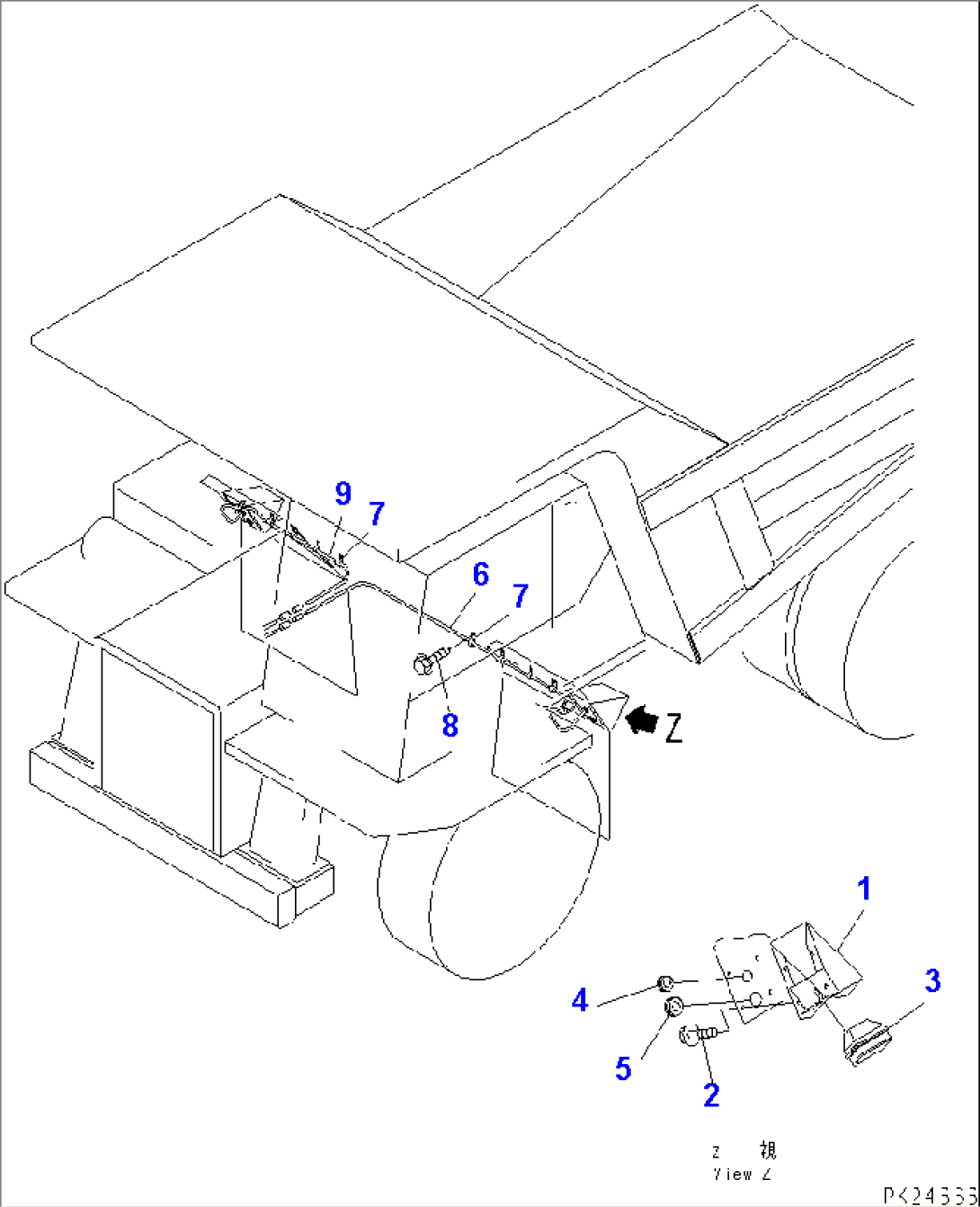

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-85-61311 | COVER | 1001- | |
| 2 | 01435-01220 | BOLT | 1001- | |
| 3 | 203-06-56140 | LAMP ASS'Y | 1001- | |
| 4 | 09415-02512 | CAP | 1001- | |
| 5 | 09415-05016 | CAP | 1001- | |
| 6 | 567-85-71140 | WIRING HARNESS | 1001- | |
| 7 | 04434-50810 | CLIP | 1001- | |
| 8 | 01435-01016 | BOLT | 1001- | |
| 9 | 567-85-71150 | WIRING HARNESS | 1001- |
