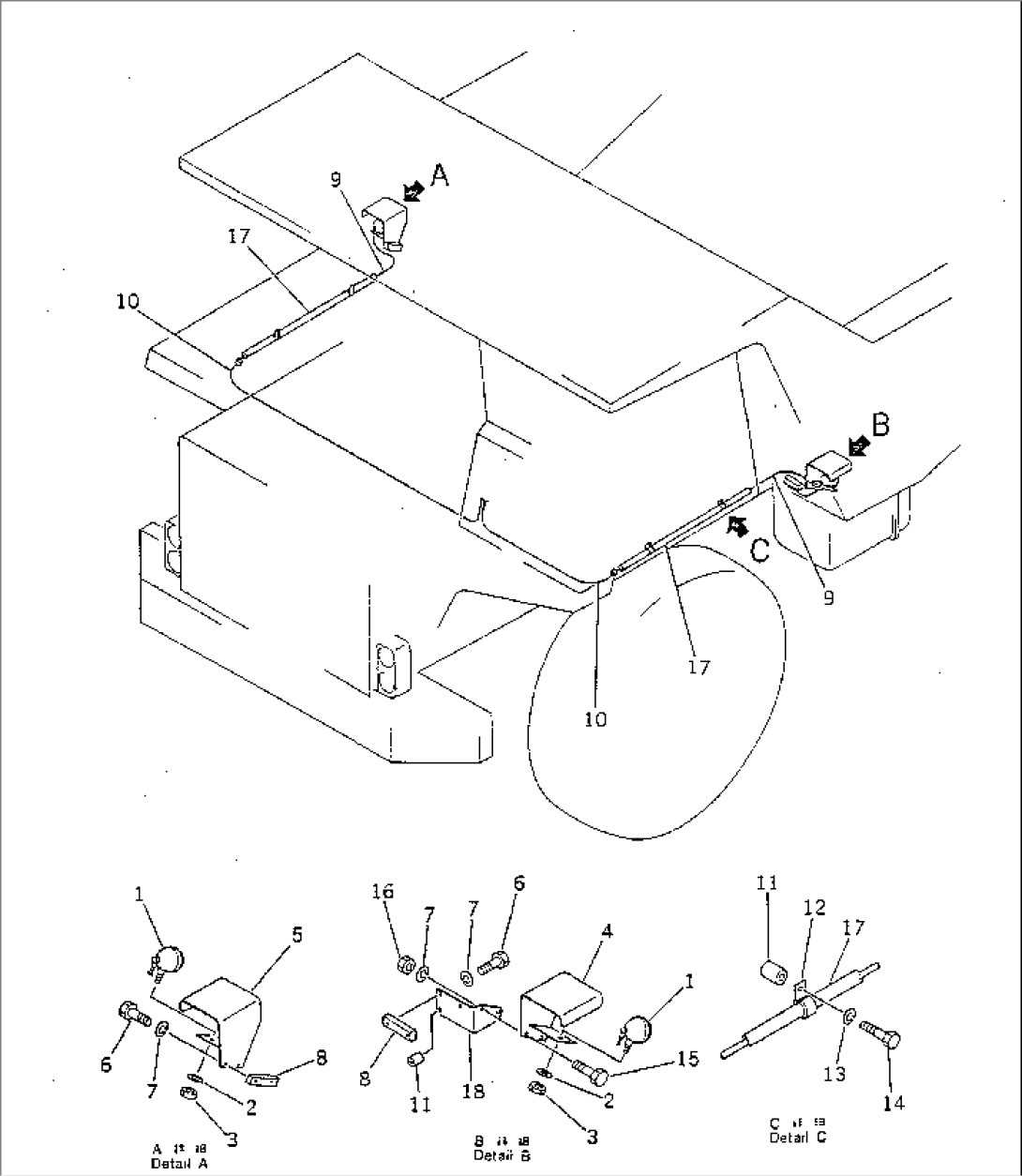

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 281-06-13600 | LAMP ASS'Y | 1002- | |
| 281-06-13330 | BULB | 1002- | ||
| 2 | 01643-31032 | WASHER | 1002- | |
| 3 | 01580-11008 | NUT | 1002- | |
| 4 | 566-95-41310 | BRACKET | 1002- | |
| 5 | 566-95-41410 | BRACKET | 1002- | |
| 6 | 01010-51025 | BOLT | 1002- | |
| 7 | 01602-21030 | WASHER | 1002- | |
| 8 | 566-54-12640 | SEAT | 1002- | |
| 9 | 567-95-14121 | CABLE | 1002- | |
| 10 | 565-06-11480 | CABLE | 1002- | |
| 11 | 01571-01016 | SEAT | 1002- | |
| 12 | 08036-11214 | CLIP | 1002- | |
| 13 | 01602-21030 | WASHER | 1002- | |
| 14 | 01010-51016 | BOLT | 1002- | |
| 15 | 01010-51030 | BOLT | 1002- | |
| 16 | 01580-11008 | NUT | 1002- | |
| 17 | 566-95-41350 | PIPE | 1002- | |
| 18 | 567-95-14140 | PLATE | 1002- |
