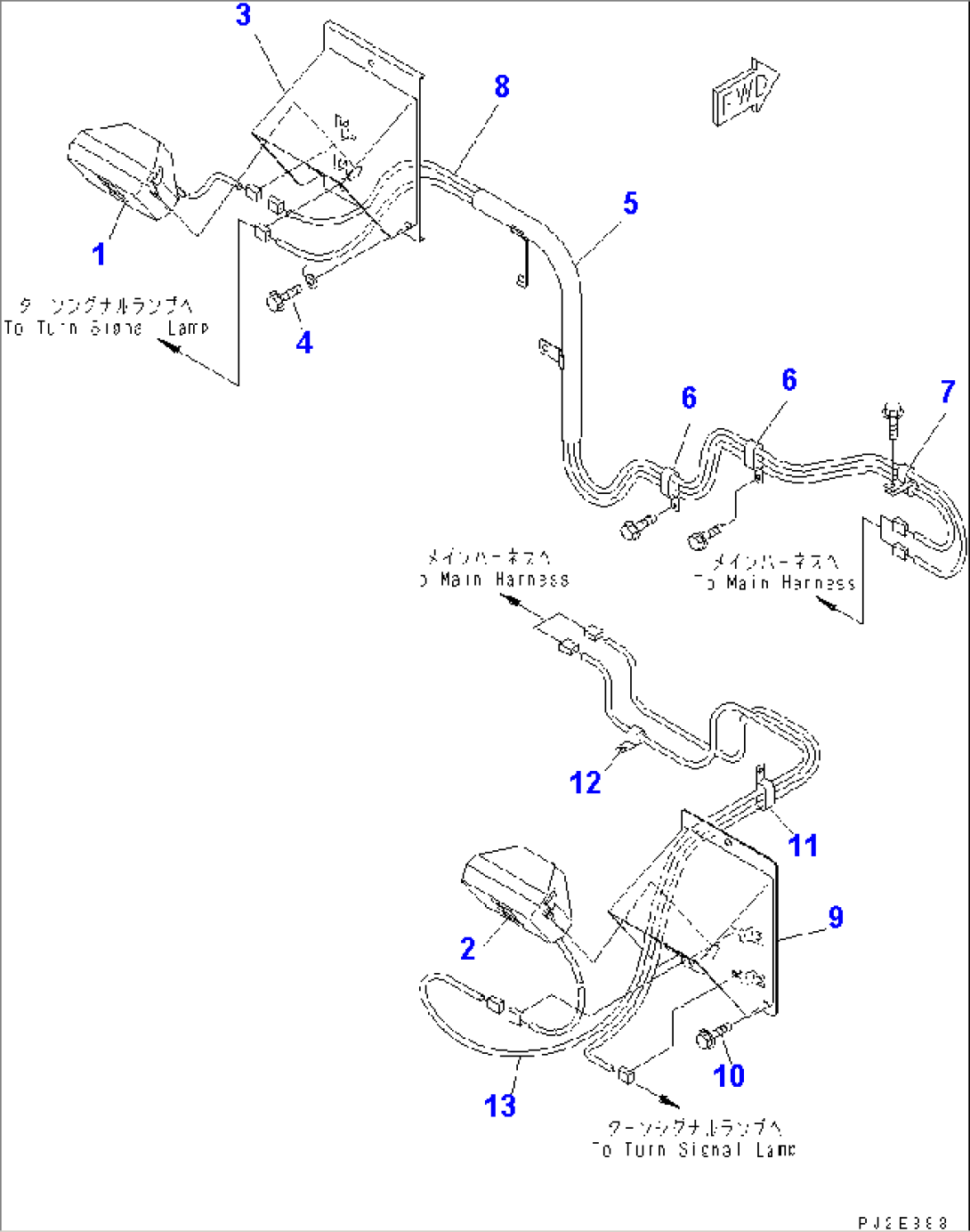

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-23310 | LAMP ASS'Y,L.H. | 1001- | |
| 421-06-23340 | LENS | 1001- | ||
| 421-06-23330 | BULB¤ 70W | 1001- | ||
| 01582-11411 | NUT | 1001- | ||
| 01602-21442 | WASHER,SPRING | 1001- | ||
| 01643-31445 | WASHER | 1001- | ||
| 08056-00271 | CONNECTOR | 1001- | ||
| 2 | 421-06-23310 | LAMP ASS'Y,R.H. | 1001- | |
| 421-06-23340 | LENS | 1001- | ||
| 421-06-23330 | BULB¤ 70W | 1001- | ||
| 01582-11411 | NUT | 1001- | ||
| 01602-21442 | WASHER,SPRING | 1001- | ||
| 01643-31445 | WASHER | 1001- | ||
| 08056-00271 | CONNECTOR | 1001- | ||
| 3 | 56B-86-11122 | COVER | 1001- | |
| 4 | 01435-01016 | BOLT | 1001- | |
| 5 | 56D-85-11130 | COVER | 1001- | |
| 6 | 04435-51010 | CLIP | 1001- | |
| 7 | 04434-51010 | CLIP | 1001- | |
| 8 | 56D-85-11420 | WIRING HARNESS | 1001- | |
| 9 | 56D-85-11120 | COVER | 1001- | |
| 10 | 01435-01016 | BOLT | 1001- | |
| 11 | 04435-51010 | CLIP | 1001- | |
| 12 | 04434-51010 | CLIP | 1001- | |
| 13 | 56D-85-11410 | WIRING HARNESS | 1001- |
