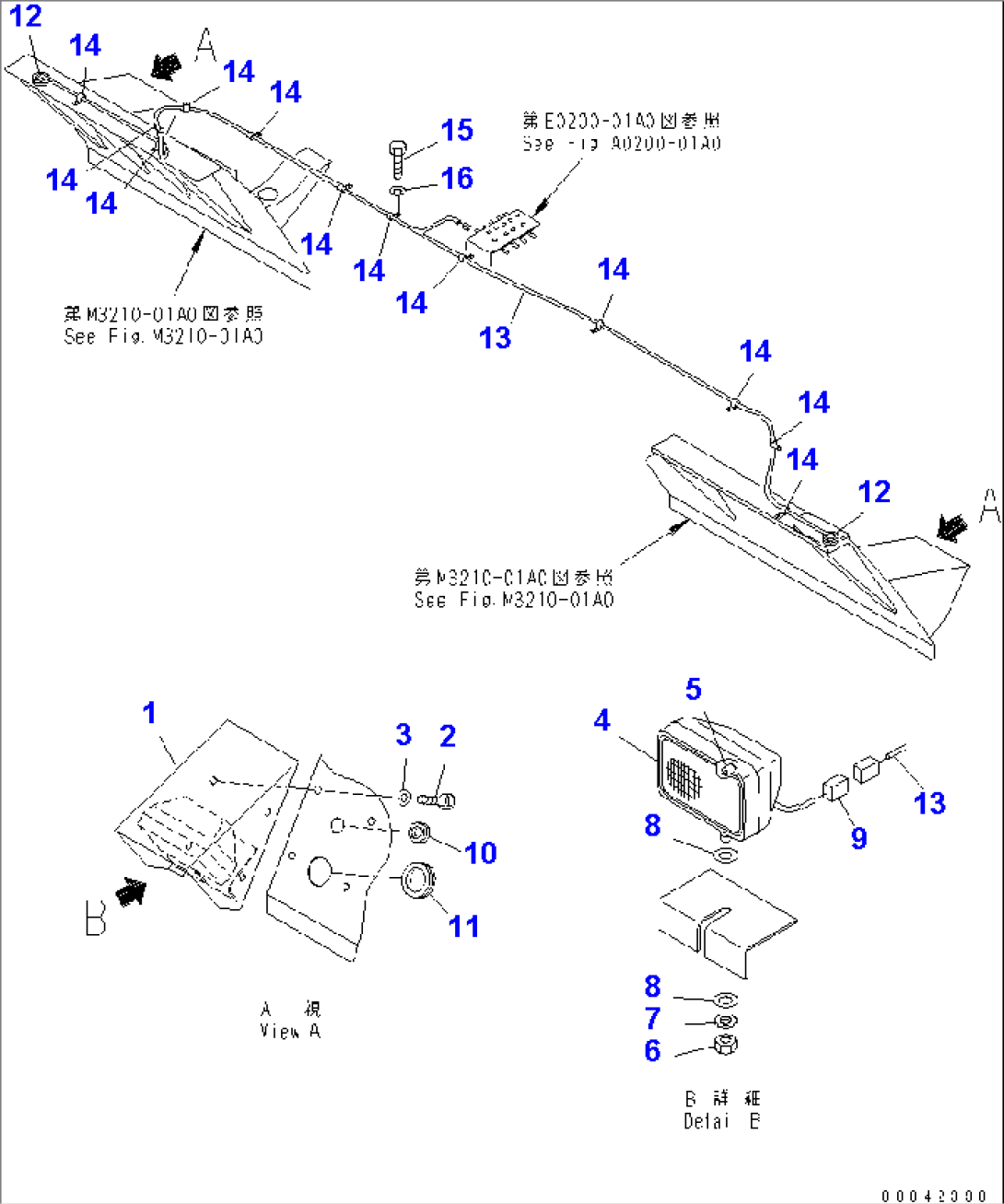

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-85-81110 | COVER | 3001- | |
| 2 | 01010-81220 | BOLT | 3001- | |
| 3 | 01643-31232 | WASHER | 3001- | |
| 421-06-23310 | LAMP ASS'Y | 3001- | ||
| 4 | 421-06-23340 | LENS | 3001- | |
| 5 | 421-06-23330 | BULB, 70W,24V 70W | 3001- | |
| 6 | 01582-11411 | NUT | 3001- | |
| 7 | 01602-21442 | WASHER | 3001- | |
| 8 | 01643-31445 | WASHER | 3001- | |
| 9 | 08056-00271 | CONNECTOR | 3001- | |
| 10 | 09415-02512 | CAP | 3001- | |
| 11 | 09415-05016 | CAP | 3001- | |
| 12 | 08037-02512 | GROMMET | 3001- | |
| 13 | 566-85-81110 | WIRING HARNESS | 3001- | |
| 14 | 04434-50810 | CLIP | 3001- | |
| 15 | 01010-81016 | BOLT | 3001- | |
| 16 | 01643-31032 | WASHER | 3001- |
