| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-54-17310 | MIRROR,REAR VIEW | 1001-1172 | |
| 2 | 56B-54-17112 | BRACKET | 1001-1172 | |
| 3 | 07283-34346 | CLIP | 1001-1172 | |
| 4 | 01597-01009 | NUT | 1001-1172 | |
| 5 | 01643-31032 | WASHER | 1001-1172 | |
| 6 | 56B-54-17170 | GUARD | 1001-1172 |
- Главная
- Каталог запчастей
- Самосвалы
- Hm300 1 s/n 1001 up
- Platform and related parts
- Side mirror(#1001 1172)
Поиск по каталогу

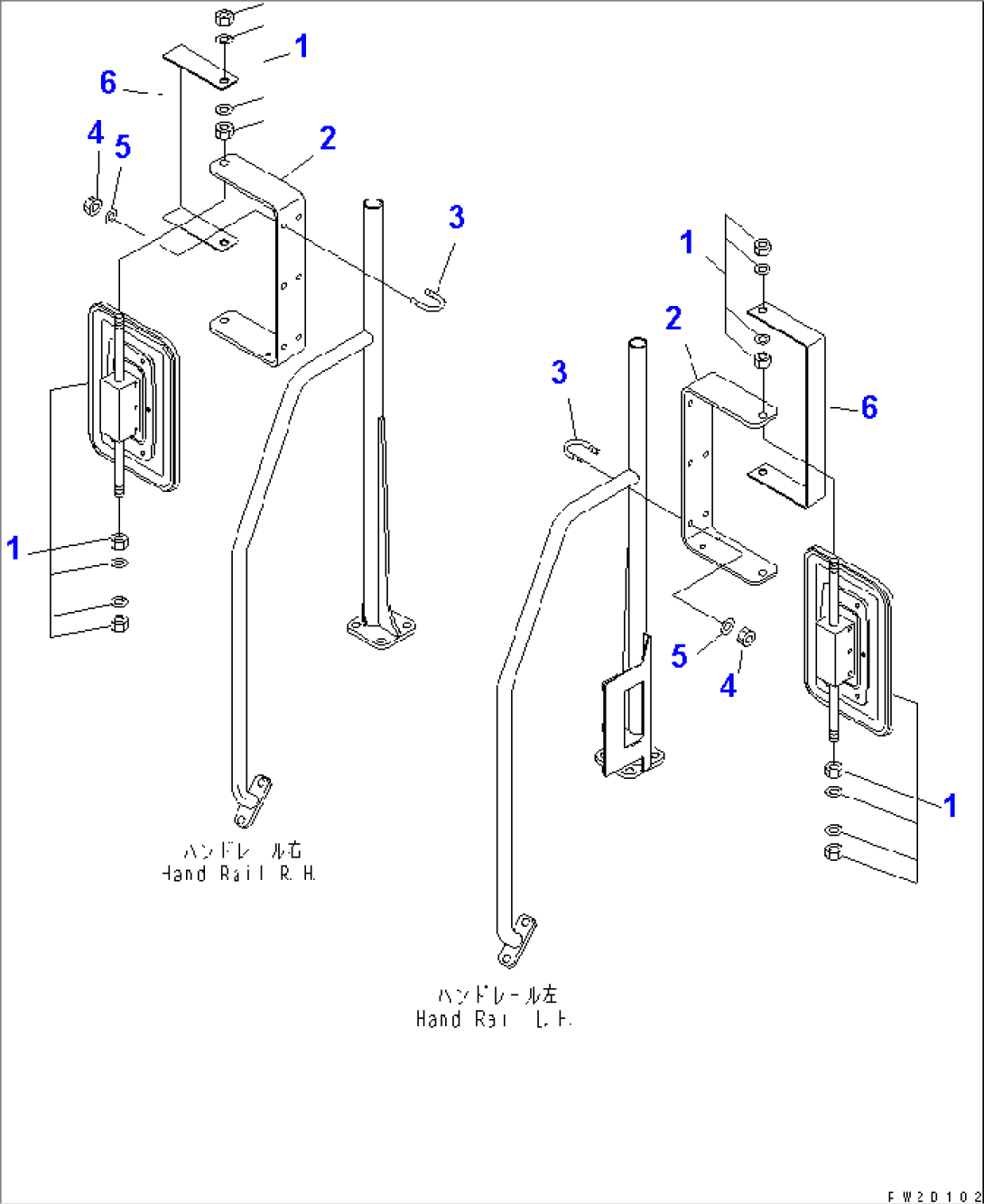

SIDE MIRROR(#1001-1172)
