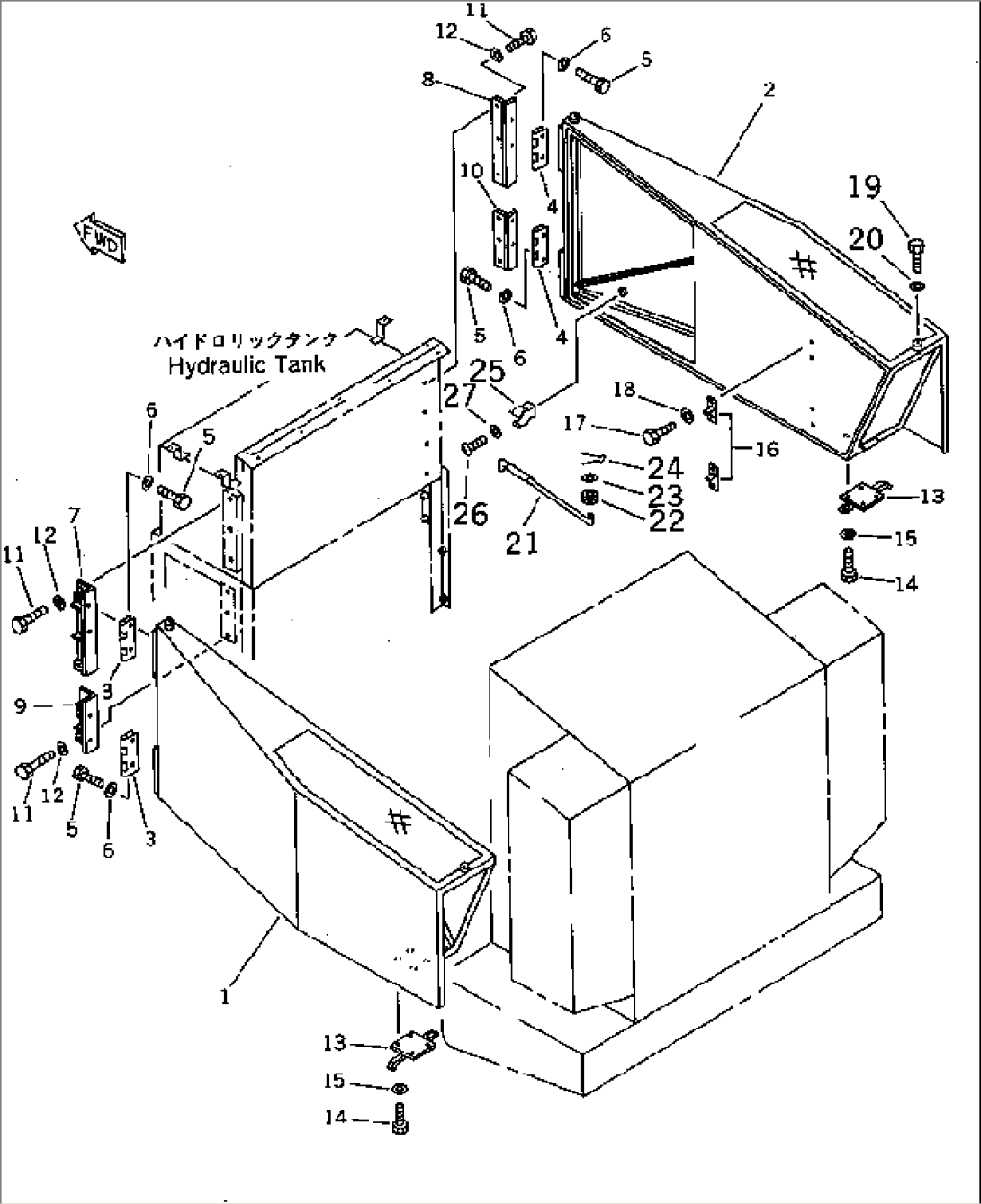

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 262-54-52191 | PANEL,SIDE¤ L.H. | 11009- | |
| 2 | 262-54-52211 | PANEL,SIDE¤ R.H. | 11009- | |
| 3 | 262-54-52220 | HINGE,L.H. | 11009- | |
| 4 | 262-54-52230 | HINGE,R.H. | 11009- | |
| 5 | 01010-51225 | BOLT | 11009- | |
| 6 | 01643-31232 | WASHER | 11009- | |
| 7 | 262-54-52721 | BRACKET,L.H. | 11009- | |
| 8 | 262-54-52741 | BRACKET,R.H. | 11009- | |
| 9 | 262-54-52711 | BRACKET,L.H. | 11009- | |
| 10 | 262-54-52731 | BRACKET,R.H. | 11009- | |
| 11 | 01010-51240 | BOLT | 11009- | |
| 12 | 01643-51232 | WASHER | 11009- | |
| 13 | 262-54-52240 | CATCHER | 11009- | |
| 14 | 01010-51025 | BOLT | 11009- | |
| 15 | 234-54-13252 | WASHER | 11009- | |
| 16 | 262-54-52751 | BRACKET | 11009- | |
| 17 | 01010-51030 | BOLT | 11009- | |
| 18 | 01643-31032 | WASHER | 11009- | |
| 19 | 01010-51220 | BOLT | 11009- | |
| 20 | 01643-31232 | WASHER | 11009- | |
| 21 | 235-54-21760 | BAR | 11009- | |
| 22 | 08037-01008 | GROMMET | 11009- | |
| 23 | 01643-31032 | WASHER | 11009- | |
| 24 | 04050-13018 | PIN,COTTER | 11009- | |
| 25 | 283-06-17130 | CLIP | 11009- | |
| 26 | 01220-40610 | SCREW | 11009- | |
| 27 | 01643-30623 | WASHER | 11009- |
