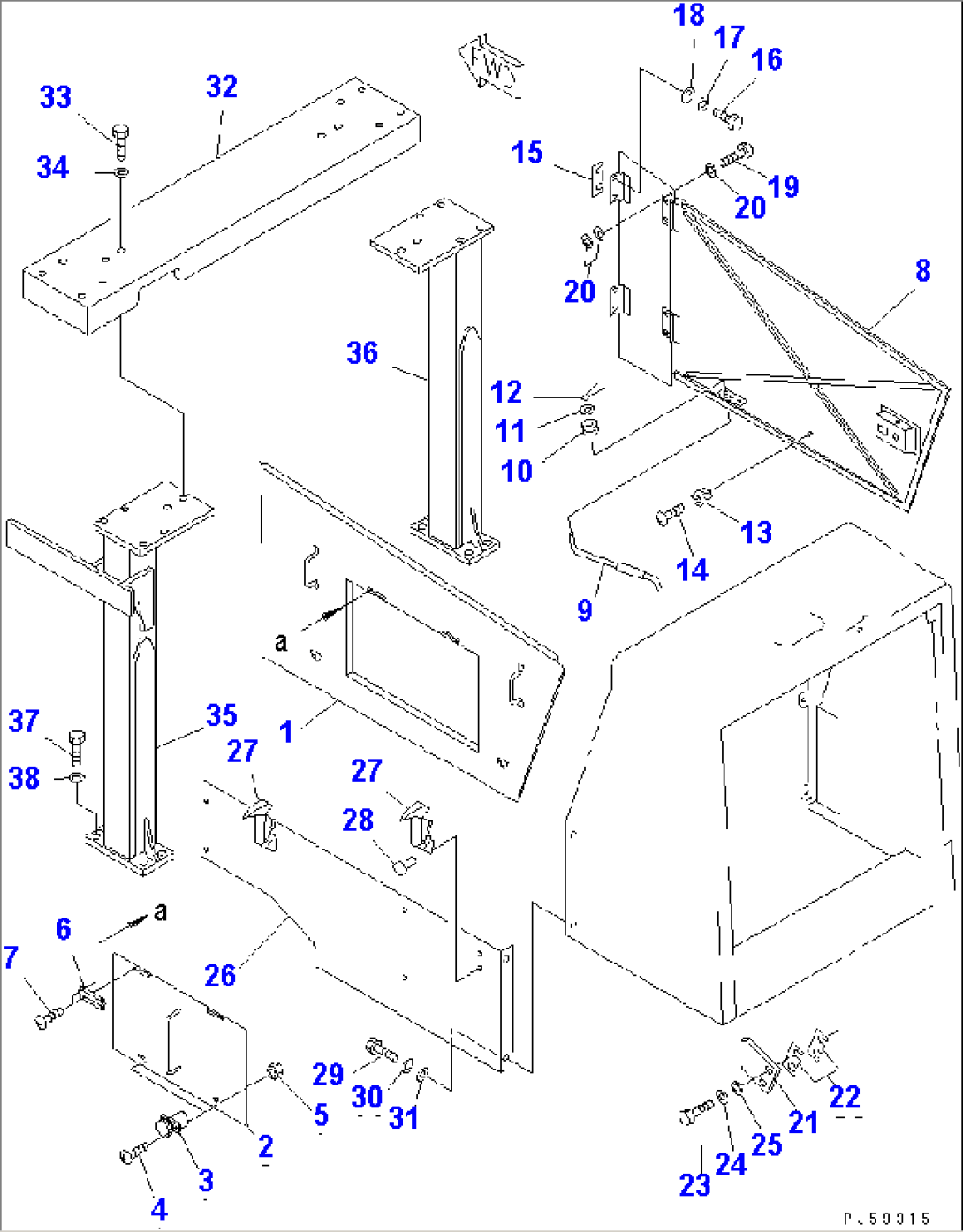

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23B-54-13121 | PANEL,SIDE¤ L.H. | 4701- | |
| 2 | 23F-972-1480 | COVER | 4701- | |
| 3 | 278-54-11360 | CATCH | 4701- | |
| 4 | 01220-40510 | SCREW | 4701- | |
| 5 | 01580-10504 | NUT | 4701- | |
| 6 | 23F-972-1530 | HINGE | 4701- | |
| 7 | 01023-10510 | SCREW | 4701- | |
| 8 | 23B-972-1670 | PANEL,SIDE¤ R.H. | 4701- | |
| 421-54-11364 | LOCK ASS'Y | 4701- | ||
| 9 | 235-54-21760 | BAR | 4701- | |
| 10 | 08037-01008 | GROMMET | 4701- | |
| 11 | 01643-31032 | WASHER | 4701- | |
| 12 | 04050-13018 | PIN,COTTER | 4701- | |
| 13 | 283-06-17130 | CLIP | 4701- | |
| 14 | 01023-10610 | SCREW | 4701- | |
| 15 | 23B-54-15930 | PLATE | 4701- | |
| 16 | 01010-51020 | BOLT | 4701- | |
| 17 | 01643-31032 | WASHER | 4701- | |
| 18 | 234-54-13252 | WASHER | 4701- | |
| 19 | 01010-51020 | BOLT | 4701- | |
| 20 | 01643-31032 | WASHER | 4701- | |
| 21 | 23E-54-11680 | PLATE | 4701- | |
| 22 | 23E-54-11670 | SHIM¤ 1.2MM | 4701- | |
| 23 | 01010-51025 | BOLT | 4701- | |
| 24 | 01643-31032 | WASHER | 4701- | |
| 25 | 234-54-13252 | WASHER | 4701- | |
| 26 | 23B-54-13150 | PLATE,LOWER¤ L.H. | 4501- | |
| 27 | 232-54-12230 | CATCHER | 4501- | |
| 28 | 238-54-12640 | RIVET | 4501- | |
| 29 | 01010-51025 | BOLT | 4501- | |
| 30 | 01643-31032 | WASHER | 4501- | |
| 31 | 234-54-13252 | WASHER | 4501- | |
| 32 | 23B-972-1273 | BRACKET | 4701- | |
| 33 | 01010-51635 | BOLT | 4501- | |
| 34 | 01643-31645 | WASHER | 4501- | |
| 35 | 23B-972-1251 | BRACKET | 4501- | |
| 36 | 23B-972-1262 | BRACKET | 4501- | |
| 37 | 01010-51640 | BOLT | 4501- | |
| 38 | 01643-31645 | WASHER | 4501- |
