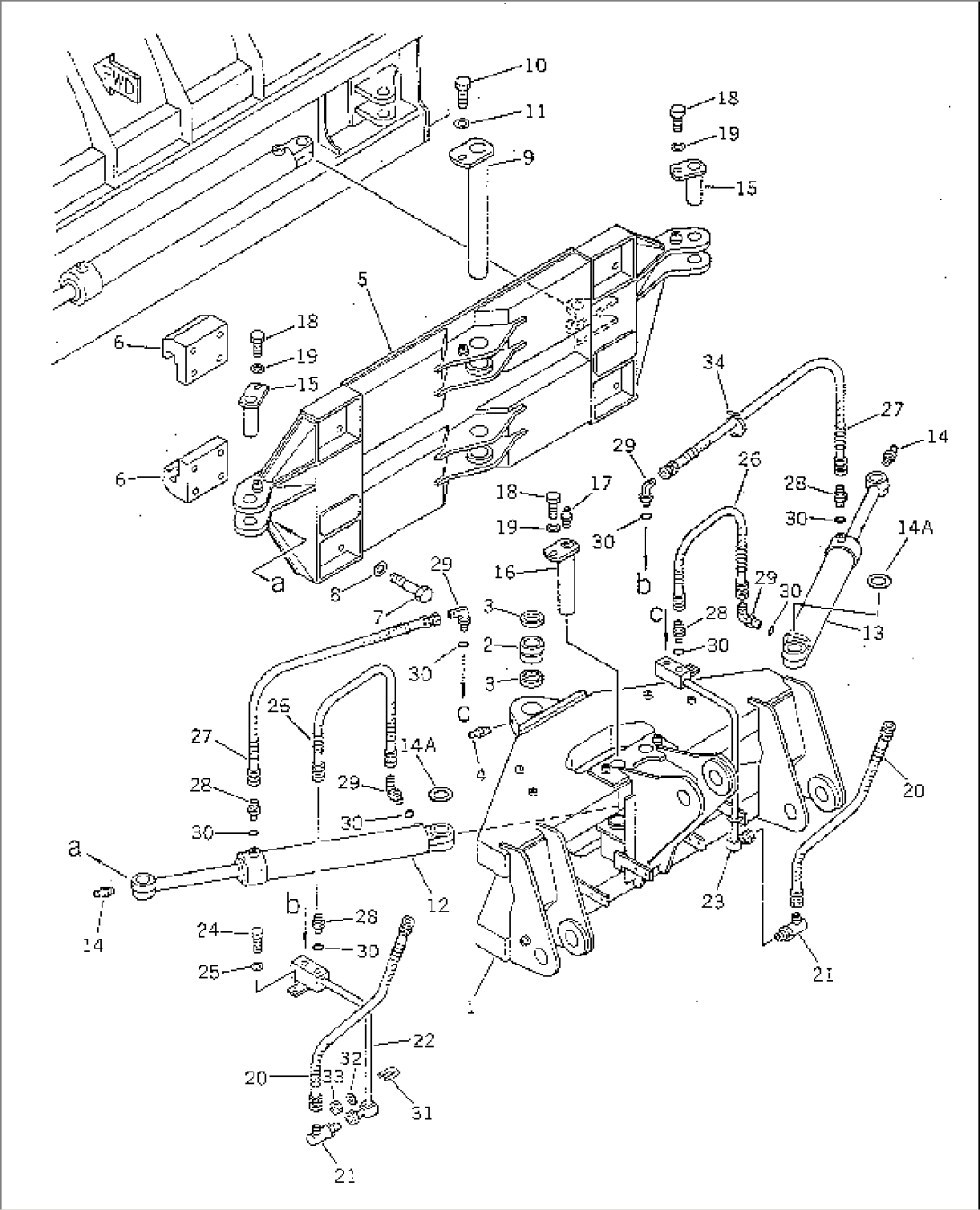

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-905-1152 | CARRIER | 10001- | |
| 2 | 07144-10503 | BUSHING | 10001- | |
| 3 | 07145-00050 | SEAL,DUST | 10001- | |
| 4 | 07020-00000 | FITTING,GREASE | 10001- | |
| 5 | 416-905-1171 | FRAME,GUIDE | 10001- | |
| 6 | 416-905-1180 | GUIDE | 10001- | |
| 7 | 01010-31655 | BOLT | 10001- | |
| 8 | 01643-31645 | WASHER | 10001- | |
| 9 | 416-905-1220 | PIN | 10001- | |
| 10 | 01010-31220 | BOLT | 10001- | |
| 11 | 175-54-34170 | WASHER | 10001- | |
| 12 | (707-00-80061) | CYLINDER ASS'Y,L.H. | 10001- | |
| 13 | (707-00-80071) | CYLINDER ASS'Y,R.H. | 10001- | |
| 14 | 07020-00000 | FITTING,GREASE | 10001- | |
| 14A | 416-904-1160 | SHIM¤ 2.3MM | 10001- | |
| 15 | 416-905-1240 | PIN | 10001- | |
| 16 | 416-904-1210 | PIN | 10001- | |
| 17 | 07020-00000 | FITTING,GREASE | 10001- | |
| 18 | 01010-31220 | BOLT | 10001- | |
| 19 | 175-54-34170 | WASHER | 10001- | |
| 20 | 416-904-1220 | HOSE | .- | |
| 07123-20408 | HOSE | 10001-. | ||
| 21 | 41H-914-1250 | JOINT,SWIVEL | .- | |
| 07129-00400 | JOINT,SWIVEL | 10001-. | ||
| 22 | 416-904-1311 | TUBE,L.H. | .- | |
| 416-904-1310 | TUBE,L.H. | 10001-. | ||
| 23 | 416-904-1321 | TUBE,R.H. | .- | |
| 416-904-1320 | TUBE,R.H. | 10001-. | ||
| 24 | 01010-31020 | BOLT | 10001- | |
| 25 | 01643-31032 | WASHER | 10001- | |
| 26 | 07123-20307 | HOSE | 10001- | |
| 27 | 07123-20311 | HOSE | 10001- | |
| 28 | 07230-10315 | UNION | 10001- | |
| 29 | 07235-10315 | ELBOW | 10001- | |
| 30 | 07002-12034 | O-RING | 10001- | |
| 31 | 07283-22236 | CLIP | 10001- | |
| 32 | 01643-31032 | WASHER | 10001- | |
| 33 | 01599-01011 | NUT | 10001- | |
| 34 | 08034-00823 | BAND | 10001- |
