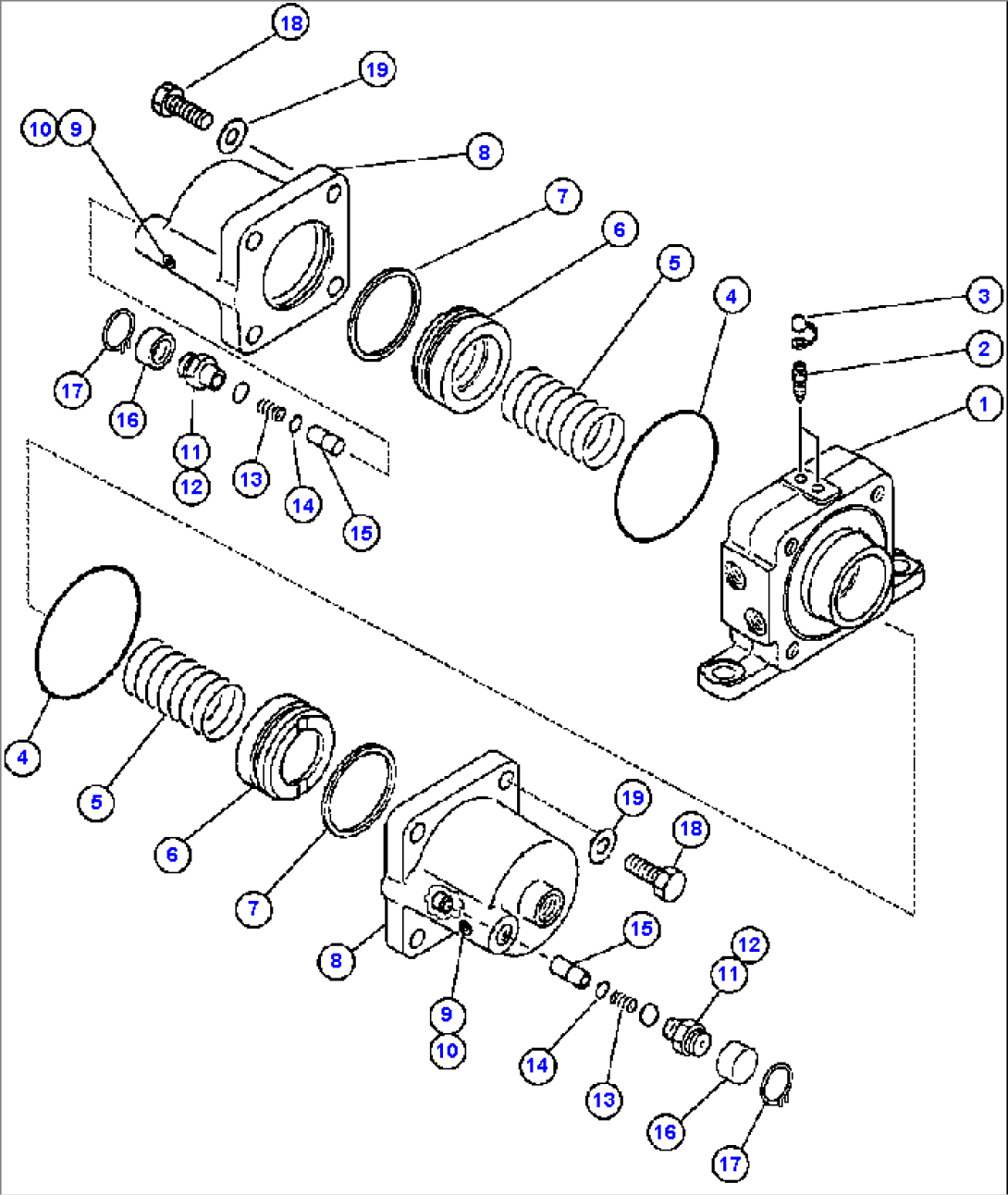

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BODY (1) | |||
| 2 | 424-35-15270 | VALVE | ||
| 3 | 232-32-11350 | CAP, BREATHER | ||
| 4 | 426-35-15280 | O-RING | ||
| 5 | 561-35-62120 | SPRING | ||
| 6 | 426-35-15220 | PISTON | ||
| 7 | 426-35-15240 | SEAL ASSEMBLY | ||
| 7 | 566-35-43710 | CYLINDER ASSEMBLY | ||
| 8 | 566-35-43711 | CYLINDER (1) | ||
| 9 | SEAT (1) | |||
| 10 | PLUG (1) | |||
| 11 | CAP (1) | |||
| 12 | 428-43-35150 | O-RING (1) | ||
| 13 | 566-35-43720 | SPRING | ||
| 14 | 424-35-15280 | O-RING | ||
| 15 | VALVE (1) | |||
| 16 | 426-35-15250 | COVER | ||
| 17 | 426-35-15260 | RING, RETAINER | ||
| 18 | 01010-81440 | CAPSCREW | ||
| 19 | 01643-31445 | FLAT WASHER | ||
| NS|21 | NOTE: (1) NOT SERVICED SEPARATELY. |
