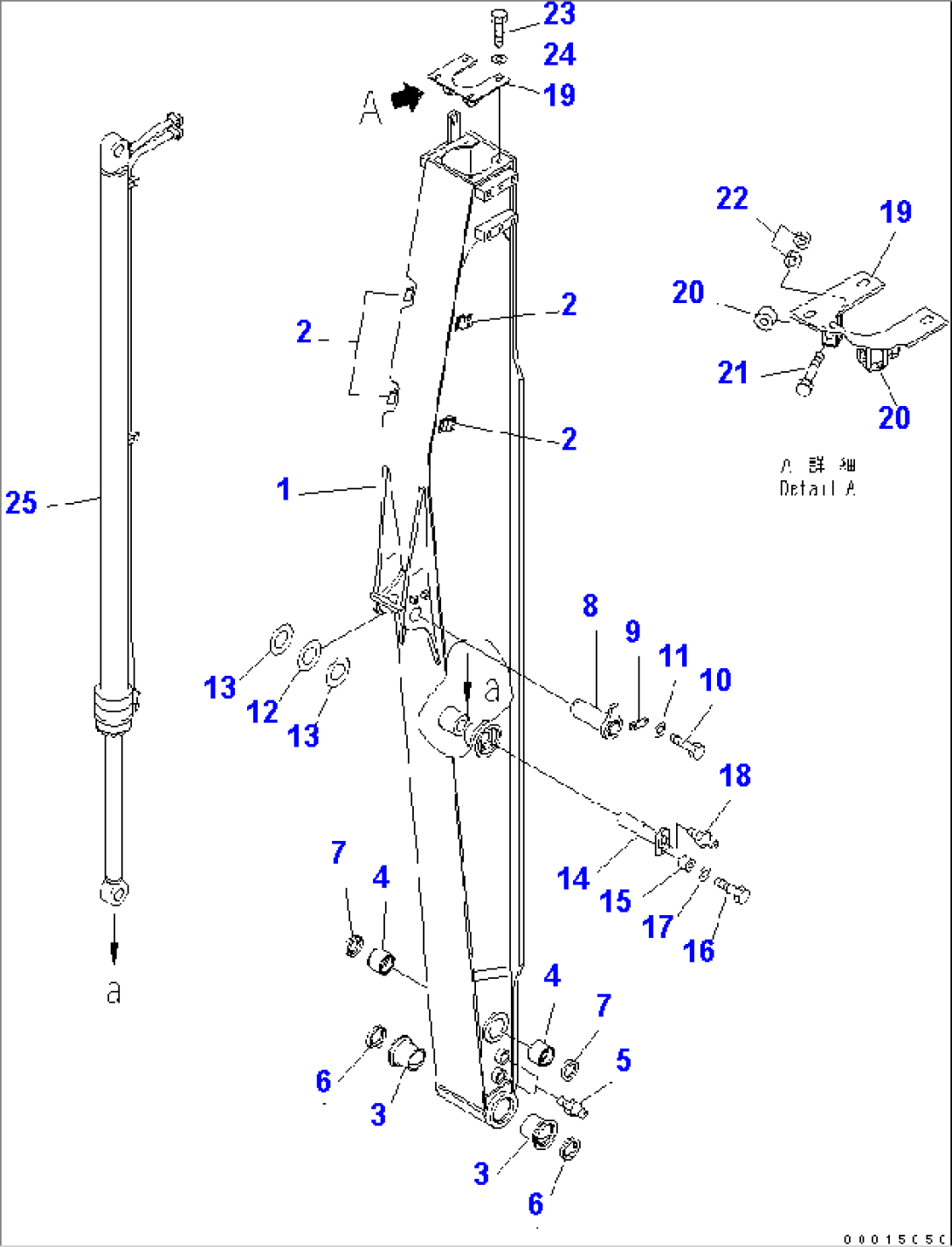

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22U-70-23210NK | ARM | 30001- | |
| 2 | KVB5204230 | BRACKET (WELDED) | 30001- | |
| 3 | 205-70-72130 | BUSHING | 30001- | |
| 4 | 20Y-70-32371 | BUSHING | 30001- | |
| 5 | 07020-00000 | FITTING | 30001- | |
| 6 | 205-70-62150 | SEAL | 30001- | |
| 7 | 20Y-70-23220 | SEAL | 30001- | |
| 8 | 22U-70-21381NK | PIN | 30001- | |
| 9 | 205-70-66580 | PLATE | 30001- | |
| 10 | 01010-81230 | BOLT | 30001- | |
| 11 | 01643-31232 | WASHER | 30001- | |
| 12 | 20Y-70-11290 | SPACER¤ 0.8MM | 30001- | |
| 13 | 20Y-70-11310 | SPACER¤ 1.5MM | 30001- | |
| 14 | KVB5201040NK | PIN | 30001- | |
| 15 | KVB5201330 | SPACER | 30001- | |
| 16 | 01010-81235 | BOLT | 30001- | |
| 17 | 01643-31232 | WASHER | 30001- | |
| 18 | 07020-00000 | FITTING | 30001- | |
| 19 | KVB5201230NK | BRACKET | 30001- | |
| 20 | KVB5201220 | ROLLER | 30001- | |
| 21 | 01090-51875 | BOLT | 30001- | |
| 22 | 01583-11811 | NUT | 30001- | |
| 23 | 01010-81640 | BOLT | 30001- | |
| 24 | 01643-31645 | WASHER | 30001- | |
| 25 | (\8\205-63-X9180) | CYLINDER GROUP | 30001- |
