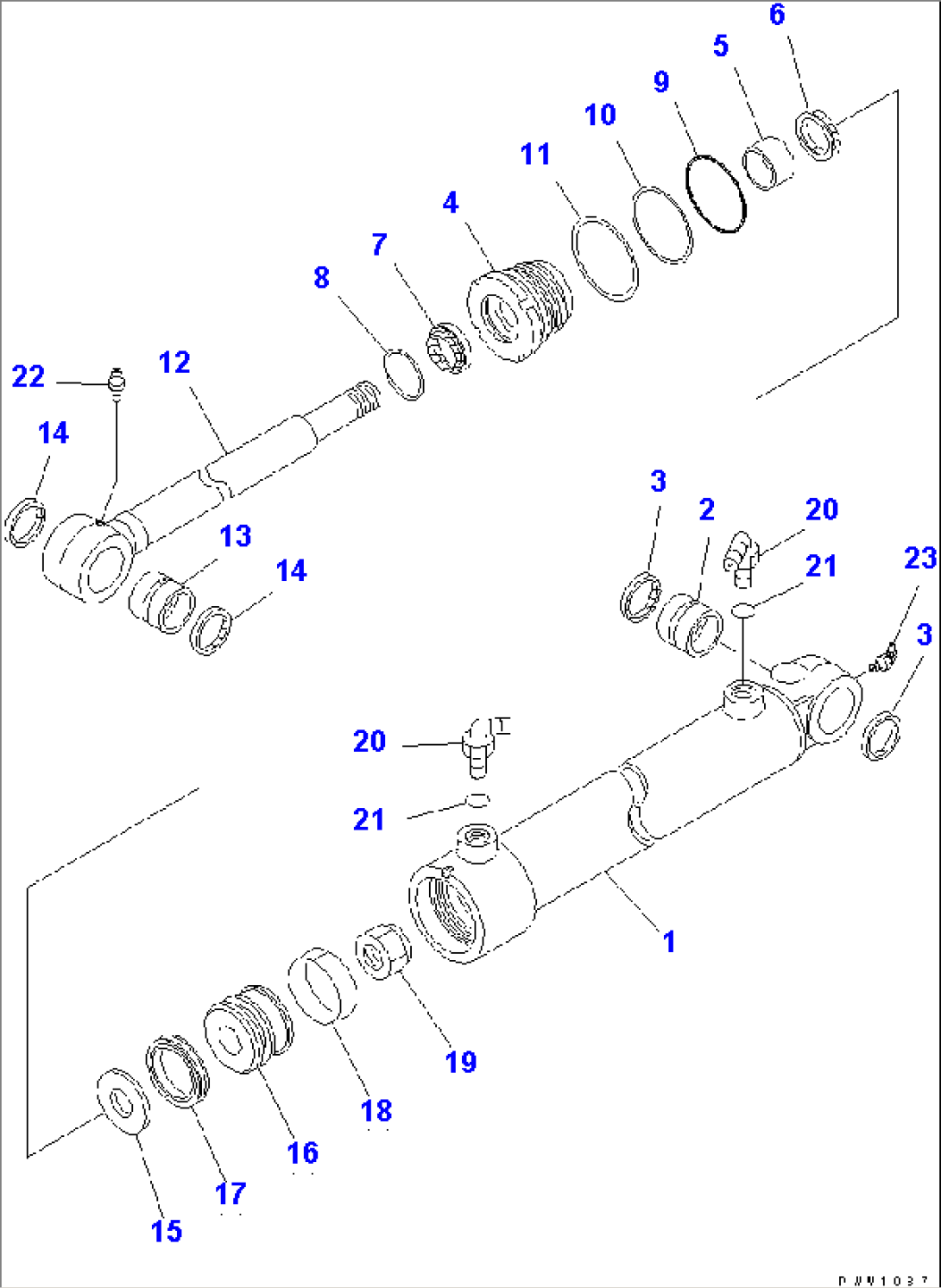

| Item | Part No. | Part Name | Qty | Serial No. |
| G1 | (\8\707-00-X7310) | CYLINDER GROUP,SLIDE | 55001- | |
| ==================== | ||||
| 707-00-02210 | CYLINDER ASS'Y | 53001- | ||
| 1 | 707-11-70520 | CYLINDER | 53001- | |
| 2 | 07144-10404 | BUSHING | 53001- | |
| 3 | 07145-00040 | SEAL,DUST (KIT) | 53001- | |
| 4 | 707-29-70280 | HEAD,CYLINDER | 53001- | |
| 5 | 07177-04025 | BUSHING | 53001- | |
| 6 | 707-51-40030 | PACKING,ROD (KIT) | 53001- | |
| 7 | 198-63-75190 | SEAL,DUST (KIT) | 53001- | |
| 8 | 07179-12052 | RING,SNAP | 53001- | |
| 9 | 07000-12075 | O-RING (KIT) | 53001- | |
| 10 | 07001-02075 | RING,BACK-UP (KIT) | 53001- | |
| 11 | 707-45-70010 | WASHER,LOCK | 53001- | |
| 12 | 707-58-40440 | ROD,PISTON | 53001- | |
| 13 | 07144-10404 | BUSHING | 53001- | |
| 14 | 07145-00040 | SEAL,DUST (KIT) | 53001- | |
| 15 | 707-40-70280 | RETAINER | 53001- | |
| 16 | 707-36-70280 | PISTON | 53001- | |
| 17 | 707-44-70180 | RING,PISTON (KIT) | 53001- | |
| 18 | 07155-00720 | RING,WEAR (KIT) | 53001- | |
| 19 | 07165-13033 | NUT,NYLON | 53001- | |
| 20 | 07235-10422 | ELBOW | 55001- | |
| 21 | 07002-12034 | O-RING | 55001- | |
| 22 | 07020-00000 | FITTING,GREASE | 55001- | |
| 23 | 07020-00900 | FITTING,GREASE | 55001- | |
| ==================== | ||||
| SERVICE KIT | ||||
| KIT | 707-99-14660 | SERVICE KIT,SLIDE CYLINDER | 53001- |
