| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE6628 | NUT | ||
| 2 | NAME PLATE (1) | |||
| 3 | VS6752 | COIL, SOLENOID | ||
| 4 | VE1730 | HOUSING, COIL | ||
| 5 | PLATE, COVER (1) | |||
| 6 | VE1729 | VALVE ASSEMBLY | ||
| 7 | VE4127 | BODY, VALVE | ||
| NS|8 | NOTE: (1) NOT SERVICED SEPARATELY. |
- Главная
- Каталог запчастей
- Самосвалы
- Afe47 am 730e s/n a30123 a30124 (andina)
- Brake valve sub assembly 1 (bf2463)
- Solenoid valve assembly (pb7242)
Поиск по каталогу

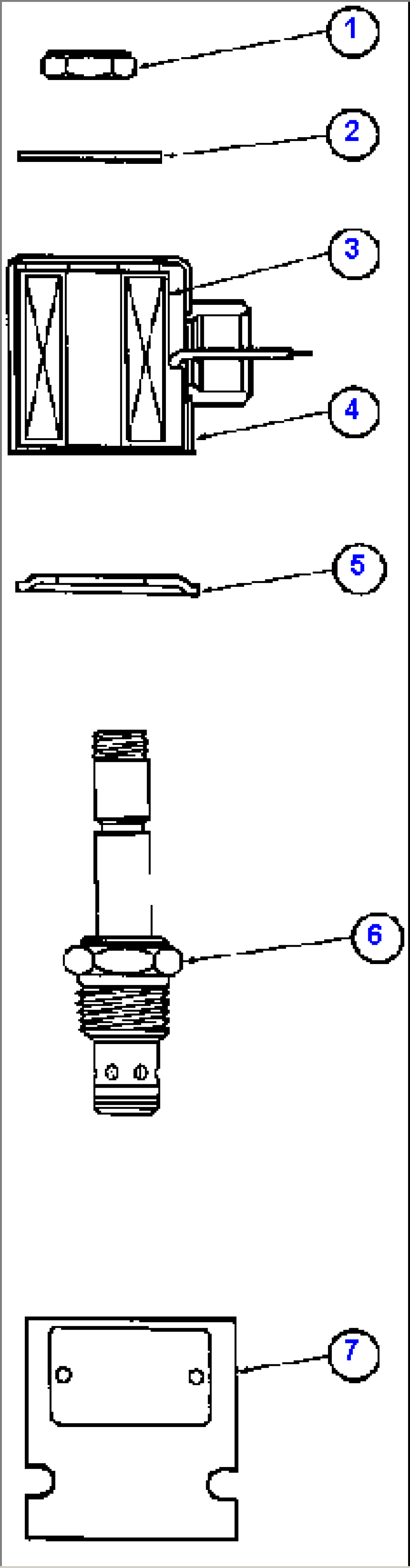

SOLENOID VALVE ASSEMBLY (PB7242)
