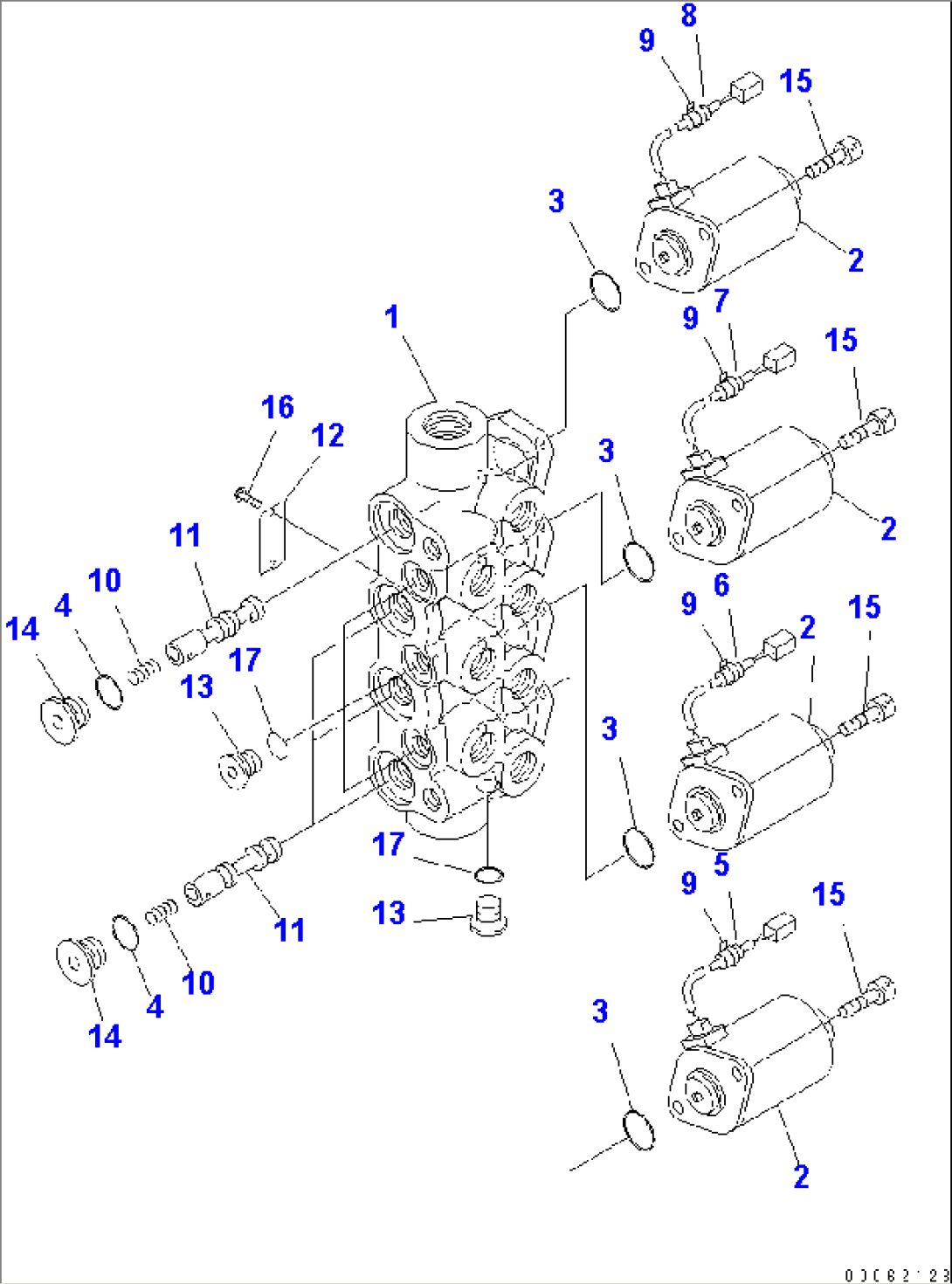

| Item | Part No. | Part Name | Qty | Serial No. |
| 8224-60-2520 | SOLENOID VALVE | 1001- | ||
| 1 | \6\ | BLOCK | 1001- | |
| 2 | 20Y-60-32120 | SOLENOID ASS'Y | 1001- | |
| 3 | 20Y-60-31240 | O-RING | 1001- | |
| 4 | 20Y-60-31250 | O-RING | 1001- | |
| 5 | NY07880-10500 | TUBE | 1001- | |
| 6 | NY07880-10600 | TUBE | 1001- | |
| 7 | NY07880-10700 | TUBE | 1001- | |
| 8 | NY07880-10800 | TUBE | 1001- | |
| 9 | NY89103-00090 | BAND | 1001- | |
| 10 | NY06339-10200 | SPRING | 1001- | |
| 11 | NY07493-10200 | SPOOL | 1001- | |
| 12 | NY09000-11400 | PLATE | 1001- | |
| 13 | NY80000-02100 | PLUG | 1001- | |
| 14 | NY80000-02200 | PLUG | 1001- | |
| 15 | NY81416-05012 | BOLT | 1001- | |
| 16 | NY84110-00248 | SCREW | 1001- | |
| 17 | 07000-11008 | O-RING | 1001- |
