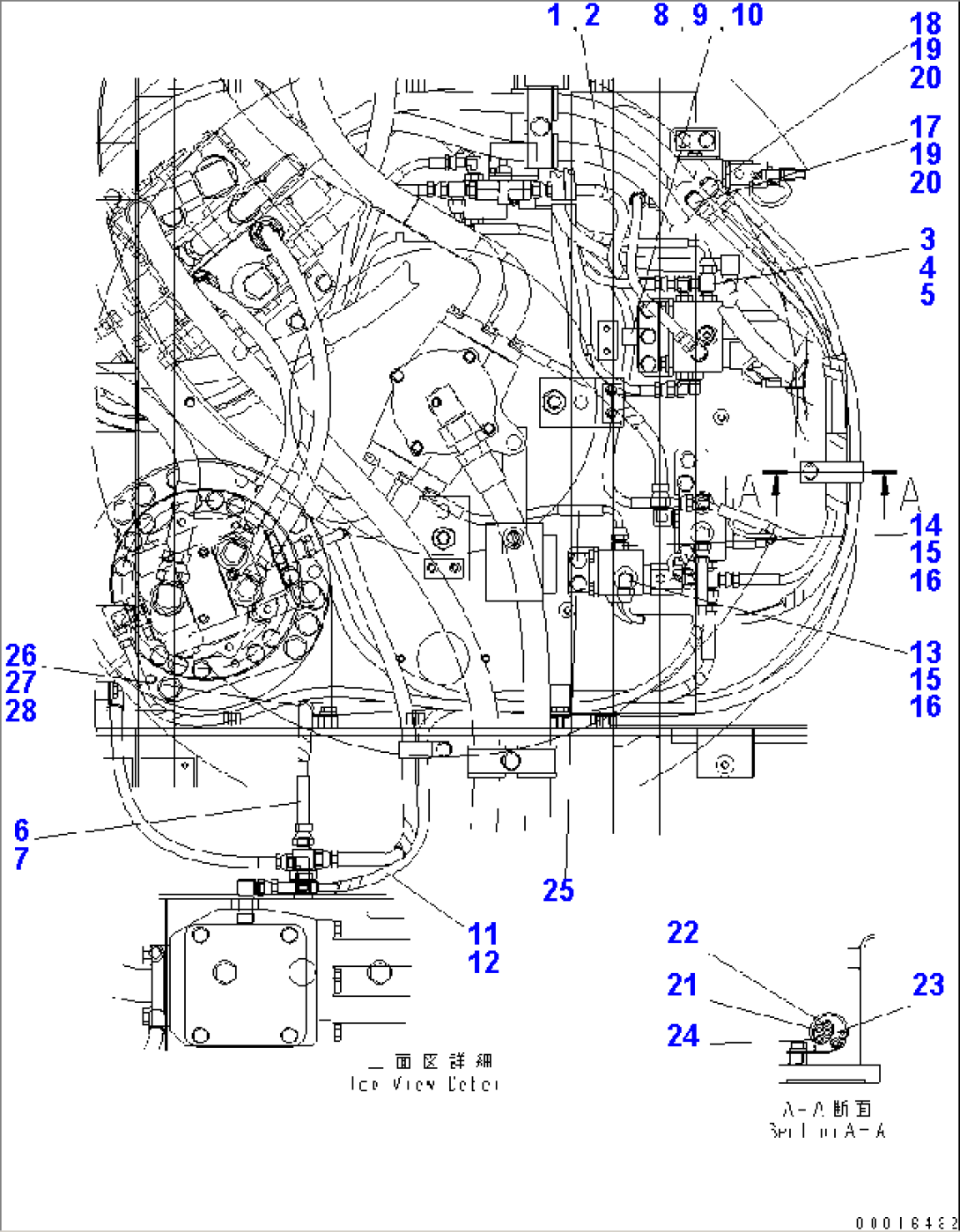

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02760-00203 | HOSE | 1501- | |
| 2 | 08210-01202 | SPIRAL TUBE | 1501- | |
| 3 | 20U-62-41741 | TEE | 1501- | |
| 4 | 07000-12011 | O-RING | 1501- | |
| 5 | 02896-11008 | O-RING | 1501- | |
| 6 | 02760-00310 | HOSE | 1501- | |
| 7 | 08210-01209 | SPIRAL TUBE | 1501- | |
| 8 | 04434-51212 | CLIP | 1501- | |
| 9 | 01010-81020 | BOLT | 1501- | |
| 10 | 01643-31032 | WASHER | 1501- | |
| 14S-62-22290 | HOSE ASS'Y | 1501- | ||
| 11 | \6\ | HOSE, 1780MM | 1501- | |
| 12 | 08210-01216 | SPIRAL TUBE | 1501- | |
| 13 | 02782-10210 | ELBOW | 1501- | |
| 14 | 02781-0021D | UNION | 1501- | |
| 15 | 07002-11423 | O-RING | 1501- | |
| 16 | 02896-11008 | O-RING | 1501- | |
| 17 | 21W-62-43980 | ELBOW | 1504- | |
| 17 | 21W-62-43980 | ELBOW | 1501-1503 | |
| 18 | 21W-62-43990 | ELBOW | 1504- | |
| 19 | 07000-12011 | O-RING | 1501- | |
| 20 | 02896-11008 | O-RING | 1501- | |
| 21 | 02760-002A6 | HOSE,BLACK | 1501- | |
| 21 | 21U-62-34720 | BAND, BLACK | 1501- | |
| 22 | 02761-00207 | HOSE,YELLOW | 1501- | |
| 22 | 21U-62-34710 | BAND, YELLOW | 1501- | |
| 23 | 02761-00209 | HOSE,BLUE | 1501- | |
| 23 | 21U-62-34750 | BAND, BLUE | 1501- | |
| 24 | 02761-00209 | HOSE,RED | 1501- | |
| 24 | 21U-62-34760 | BAND, RED | 1501- | |
| 25 | 02761-002A3 | HOSE | 1504- | |
| 25 | 02761-00203 | HOSE | 1501-1503 | |
| 26 | 04434-51512 | CLIP | 1501- | |
| 27 | 01010-81020 | BOLT | 1501- | |
| 28 | 01643-31032 | WASHER | 1501- |
