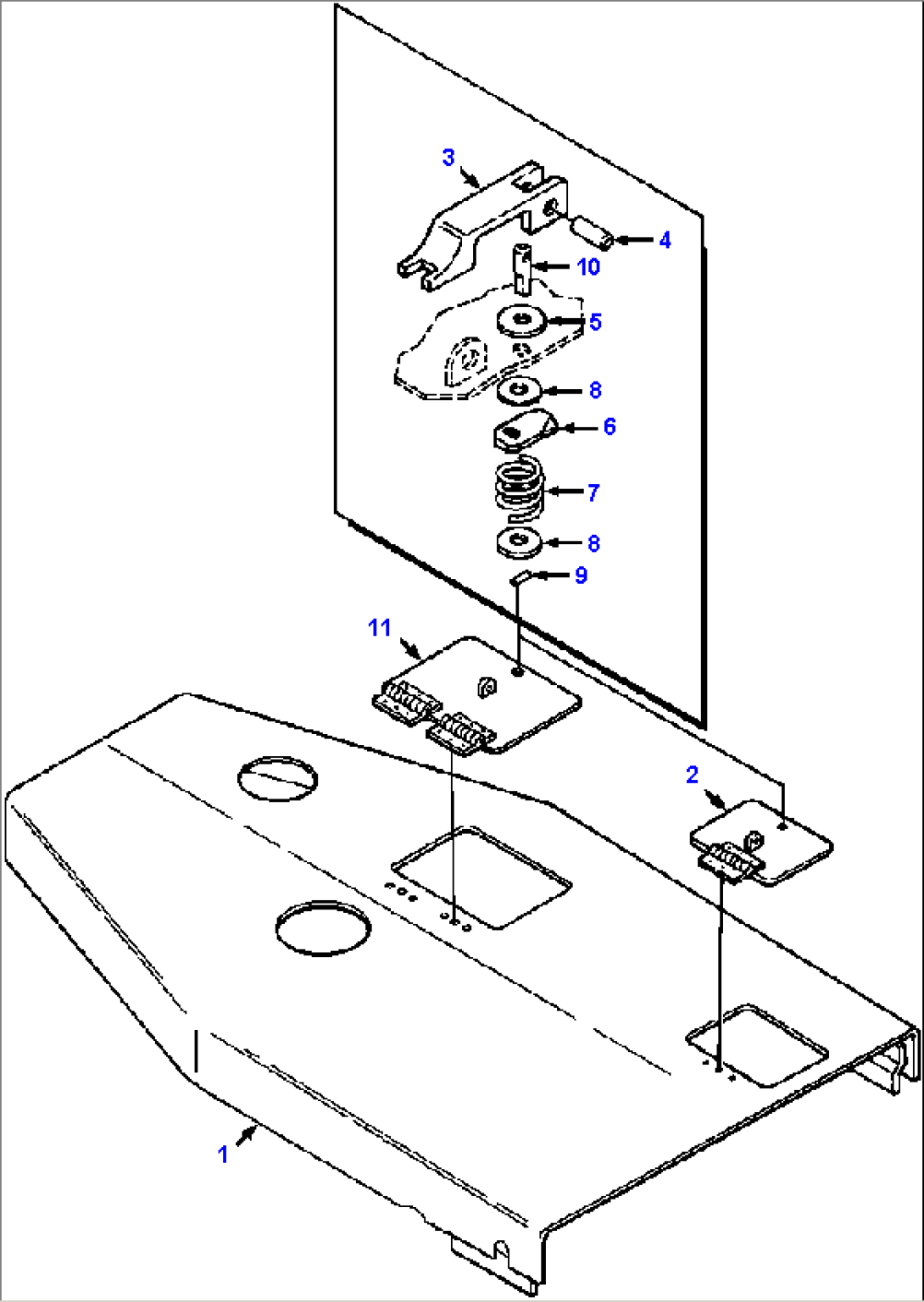

| Item | Part No. | Part Name | Qty | Serial No. |
| (1278 608 H91) | HOOD ASSY, SOLID | |||
| 1 | 1278 609 H91 | HOOD, SOLID | ||
| 2 | 742 467 C1 | DOOR, HOOD ACCESS | ||
| 24 840 R1 | BOLT, MOUNTING - 3/8NCx1 | |||
| 25 534 R1 | WASHER, FLAT - 3/8 | |||
| 25 522 R1 | NUT, HEX - 3/8NC | |||
| 3 | 1207 143 H1 | HANDLE, LATCH | ||
| 4 | 20 895 R1 | PIN, SPRING - 1/4x1 | ||
| 5 | 120 390 | WASHER, FLAT - 1/2 | ||
| 6 | 1234 733 H1 | PAWL, LATCH | ||
| 7 | 1207 694 H1 | SPRING, TENSION | ||
| 8 | 25 536 R1 | WASHER, FLAT - 1/2 | ||
| 9 | 19 494 R1 | PIN, SPRING | ||
| 10 | 1234 731 H1 | PIN, LATCH | ||
| 11 | 1278 611 H91 | DOOR ASSY | ||
| 24 840 R1 | BOLT, MOUNTING - 3/8NCx1 | |||
| 25 534 R1 | WASHER, FLAT - 3/8 | |||
| 25 522 R1 | NUT, HEX - 3/8NC | |||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. | ||||
