| Item | Part No. | Part Name | Qty | Serial No. |

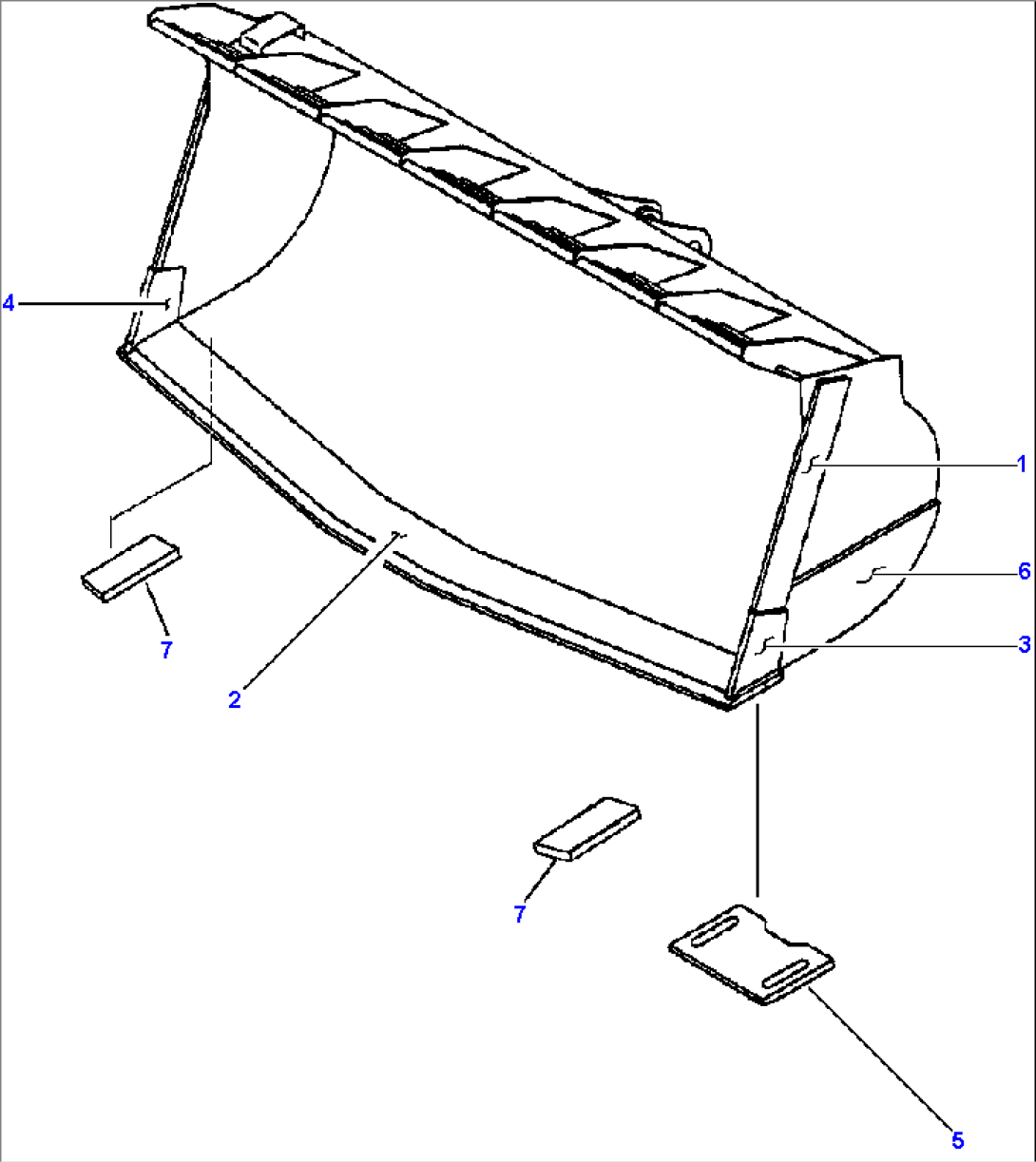

| 425-809-1410 | BUCKET ASSEMBLY, 4.0 m³ (5.2 yd³), SPADE NOSE | |||
| 1 | 425-70-12132 | PLATE, BAR SIDE CUTTER | ||
| 2 | 425-809-1121 | EDGE, BLADE CUTTING | ||
| 3 | 425-809-1350 | PLATE, LH CORNER | ||
| 4 | 425-809-1360 | PLATE, RH CORNER | ||
| 5 | 425-70-12141 | PLATE, SKID | ||
| 6 | 425-809-1340 | PLATE, SIDE STRENGTH | ||
| 7 | 425-809-1A70 | PLATE | ||
| F1 - ORDER ON MACHINE ORDER FORM | ||||
