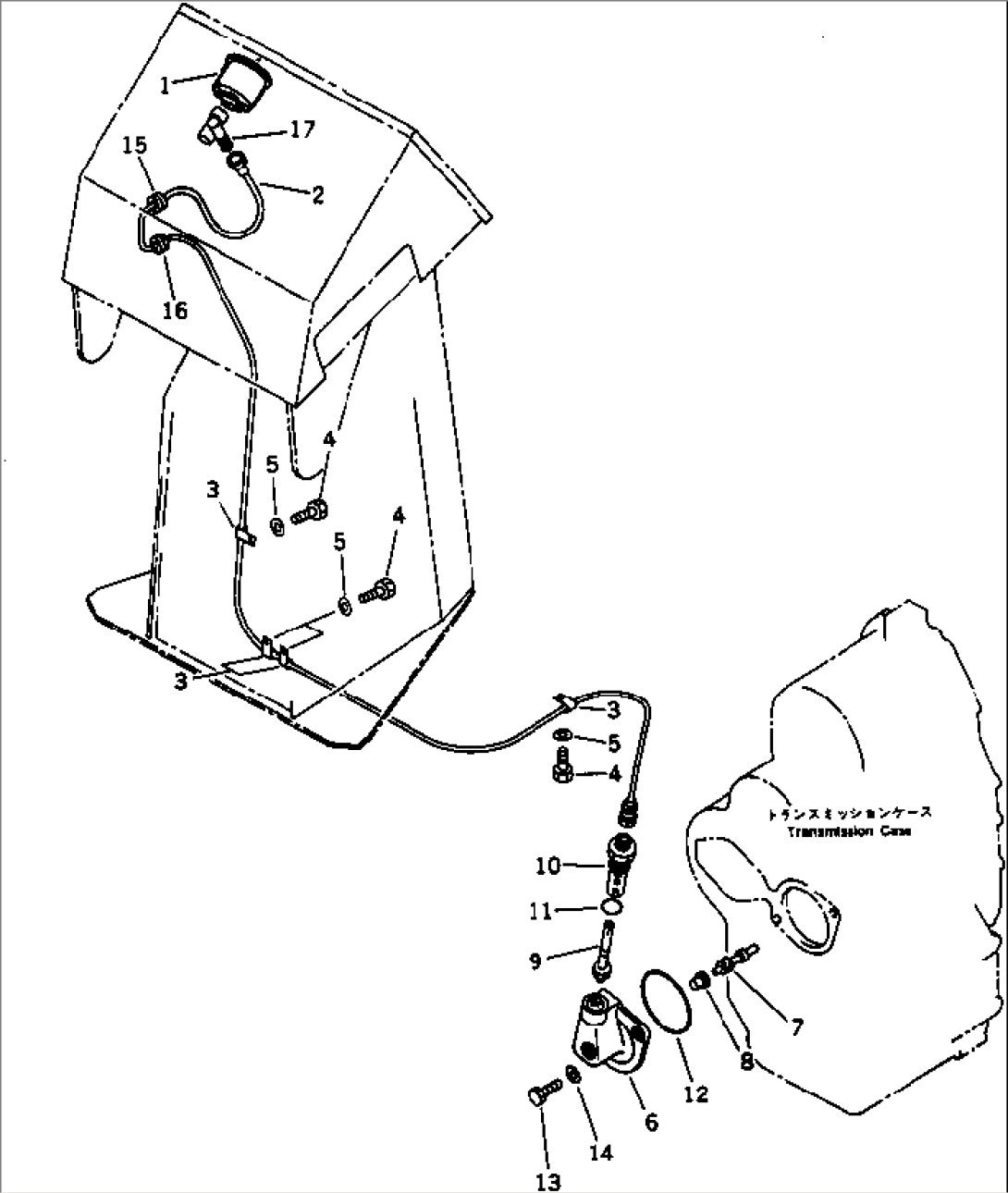

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-15141 | SPEEDOMETER,(KMPH) | 10001- | |
| 1 | 417-V41-1110 | SPEEDOMETER,(MPH) | 10001- | |
| 1 | 08111-02430 | BULB, 3W | 10001- | |
| 2 | 41A-06-15110 | CABLE | 10001- | |
| 3 | 424-06-12730 | CLIP | 10001- | |
| 4 | 01010-51020 | BOLT | 10001- | |
| 5 | 01643-31032 | WASHER | 10001- | |
| 6 | 417-15-13452 | COVER | 10001- | |
| 7 | 417-15-13511 | GEAR,WORM | 10001- | |
| 8 | 417-15-13460 | BUSHING | 10001- | |
| 9 | 417-15-13521 | GEAR | 10001- | |
| 10 | 417-15-13432 | SLEEVE | 10001- | |
| 11 | 07002-02434 | O-RING | 10001- | |
| 12 | 07000-02075 | O-RING | 10001- | |
| 13 | 01010-31235 | BOLT | 10001- | |
| 14 | 01643-31232 | WASHER | 10001- | |
| 15 | 08037-02512 | GROMMET | 10001- | |
| 16 | 08037-03614 | GROMMET | 10001- | |
| 17 | 417-06-15240 | ADAPTER | 10001- |
