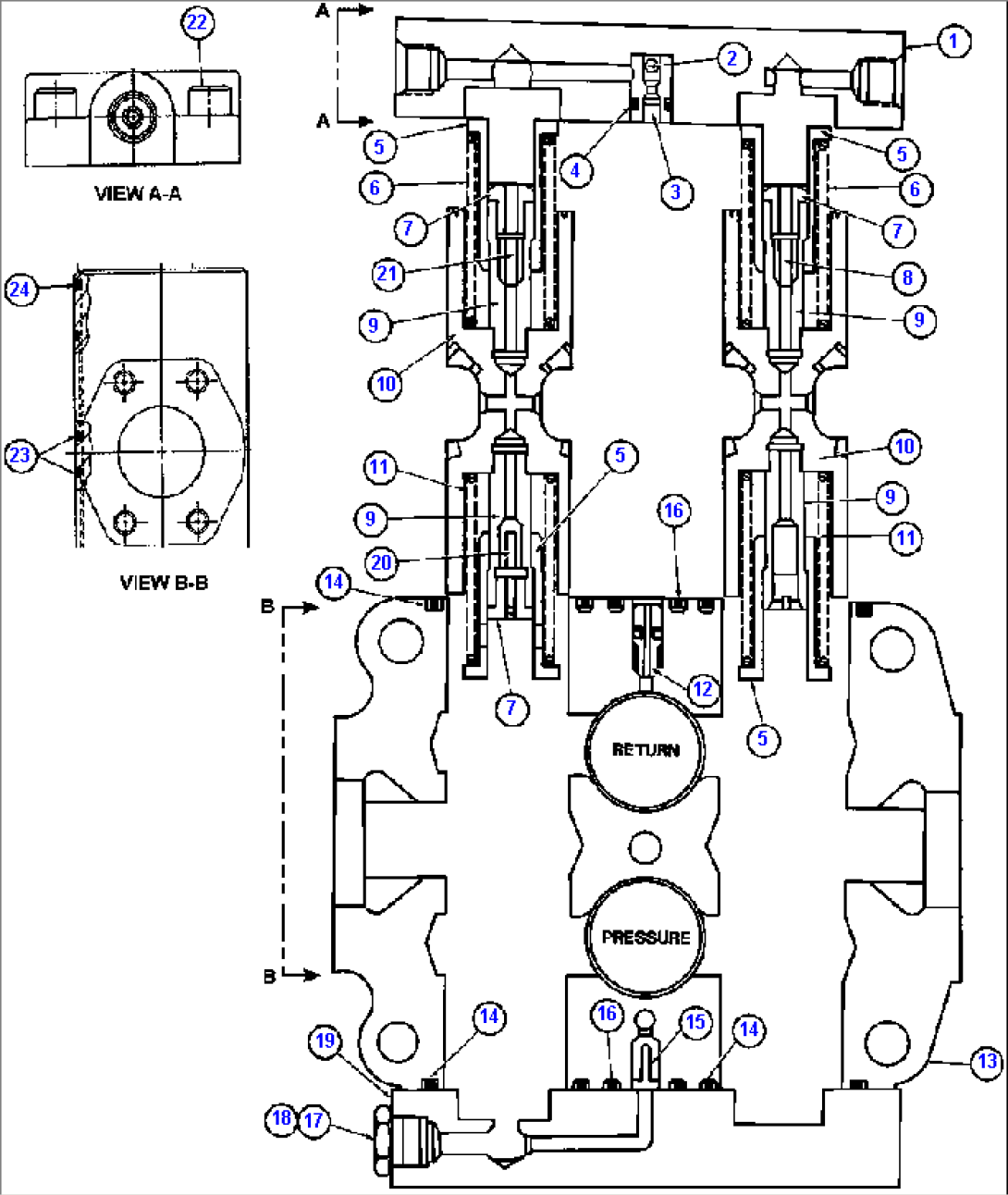

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE3543 | COVER, SPOOL | ||
| 2 | VE3535 | BALL (1)/(2) | ||
| 3 | VE3536 | POPPET (1) | ||
| 4 | VE3527 | O-RING (1)/(2) | ||
| 5 | VE3548 | SEAT, SPRING | ||
| 6 | VE3541 | SPRING | ||
| 7 | VE3545 | PLUG | ||
| 8 | VE3539 | POPPET (1) | ||
| 9 | VE3546 | END, SPOOL | ||
| 10 | VE3547 | SPOOL | ||
| 11 | VE3542 | SPRING | ||
| 12 | VE5472 | POPPET | ||
| 13 | VE7619 | HOUSING, SPOOL | ||
| 14 | VE3533 | O-RING (1)/(2) | ||
| 15 | VE3603 | POPPET (1) | ||
| 16 | VJ2946 | O-RING (1)/(2) | ||
| 17 | VJ1983 | PLUG | ||
| 18 | VE3549 | O-RING (1)/(2) | ||
| 19 | VE3544 | COVER, SPOOL | ||
| 20 | VE3538 | POPPET (1) | ||
| 21 | VE3540 | POPPET (1) | ||
| 22 | VJ1987 | CAPSCREW | ||
| 23 | VE3528 | O-RING (1)/(2) | ||
| 24 | VE3534 | O-RING (1)/(2) | ||
| NS|25 | BF3253 | NOTE: (1) INCLUDED IN BF3253 MAJOR SERVICE KIT. | ||
| NS|26 | BF3252 | (2) INCLUDED IN BF3252 MINOR SERVICE KIT. |
