| Item | Part No. | Part Name | Qty | Serial No. |

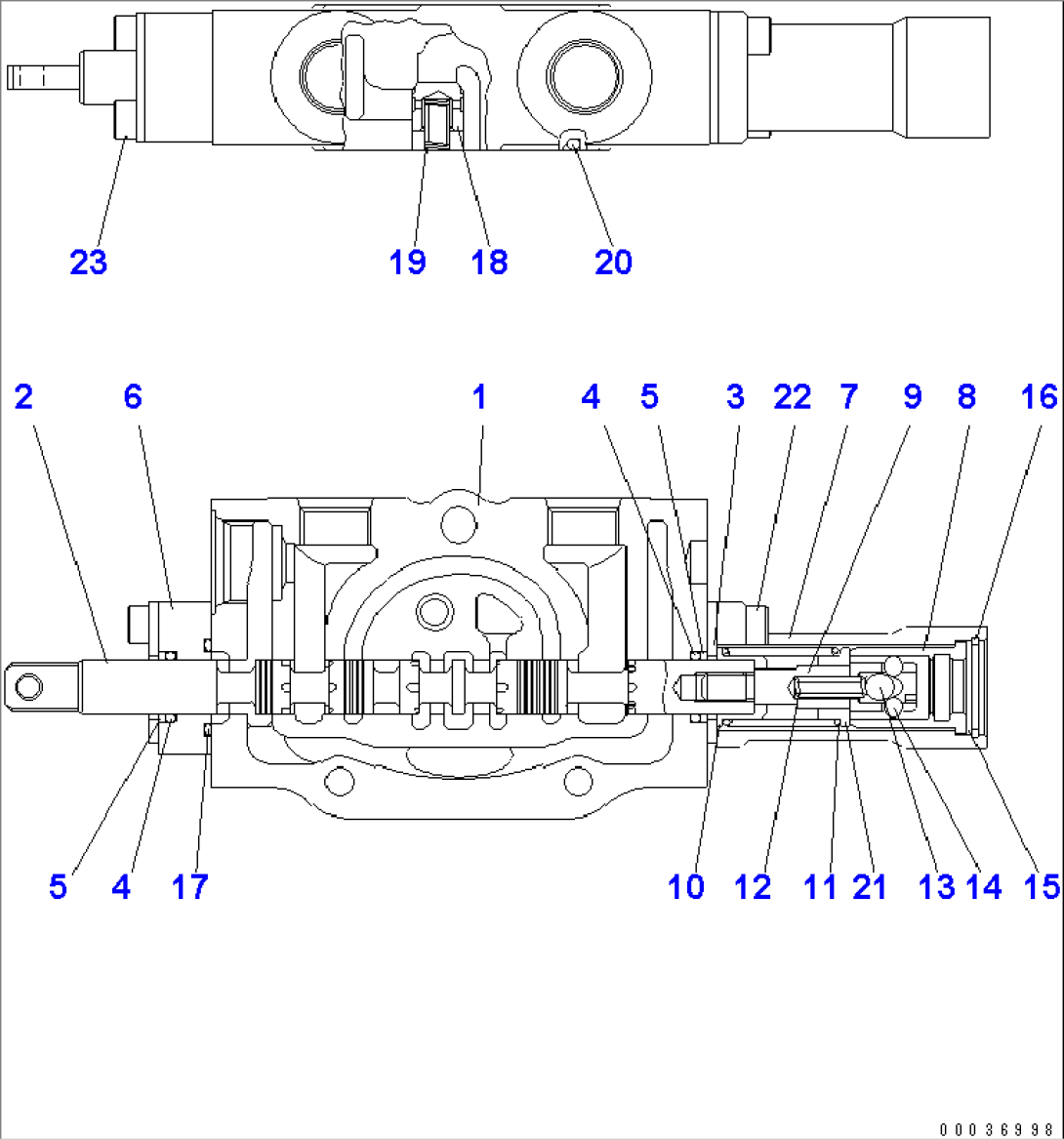

| 415-64-23120 | SPOOL SECTION ASS'Y | 10001- | ||
| 1 | \6\ | HOUSING | 10001- | |
| 2 | \6\ | SPOOL | 10001- | |
| 3 | KB21011-31702 | PLATE | 10001- | |
| 4 | KB21001-00689 | O-RING | 10001- | |
| 5 | KB21011-32801 | WIPER | 10001- | |
| 6 | KB21011-30925 | SPACER | 10001- | |
| 7 | KB21011-31013 | CAP | 10001- | |
| 8 | KB21011-31835 | SLEEVE | 10001- | |
| 9 | KB21011-30529 | PIN | 10001- | |
| 10 | KB21011-30707 | SEAT | 10001- | |
| 11 | KB21011-30603 | SPRING | 10001- | |
| 12 | KB21011-30609 | SPRING | 10001- | |
| 13 | KB21011-33002 | BALL | 10001- | |
| 14 | KB21011-33003 | BALL | 10001- | |
| 15 | KB21011-33403 | SPACER | 10001- | |
| 16 | KB21011-33501 | RING | 10001- | |
| 17 | KB95131-01400 | O-RING | 10001- | |
| 18 | KB21011-32404 | POPPET | 10001- | |
| 19 | KB21011-30604 | SPRING | 10001- | |
| 20 | KB21001-00106 | O-RING | 10001- | |
| 21 | KB21011-30708 | SEAT | 10001- | |
| 22 | KB92703-06181 | BOLT | 10001- | |
| 23 | KB92703-06251 | BOLT | 10001- |
