| Item | Part No. | Part Name | Qty | Serial No. |
| (425-22-10007) | FRONT AXLE ASS'Y | 20001- | ||
| (425-22-10003) | FRONT AXLE ASS'Y | 10511-19999 | ||
| \0\425-22-10002 | FRONT AXLE ASS'Y | 10277-10510 | ||
| \0\425-22-10001 | FRONT AXLE ASS'Y | 10001-10276 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.3101 TO 3147. | ||||
| (425-32-15001) | PARKING BRAKE ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3141 TO 3147. | ||||

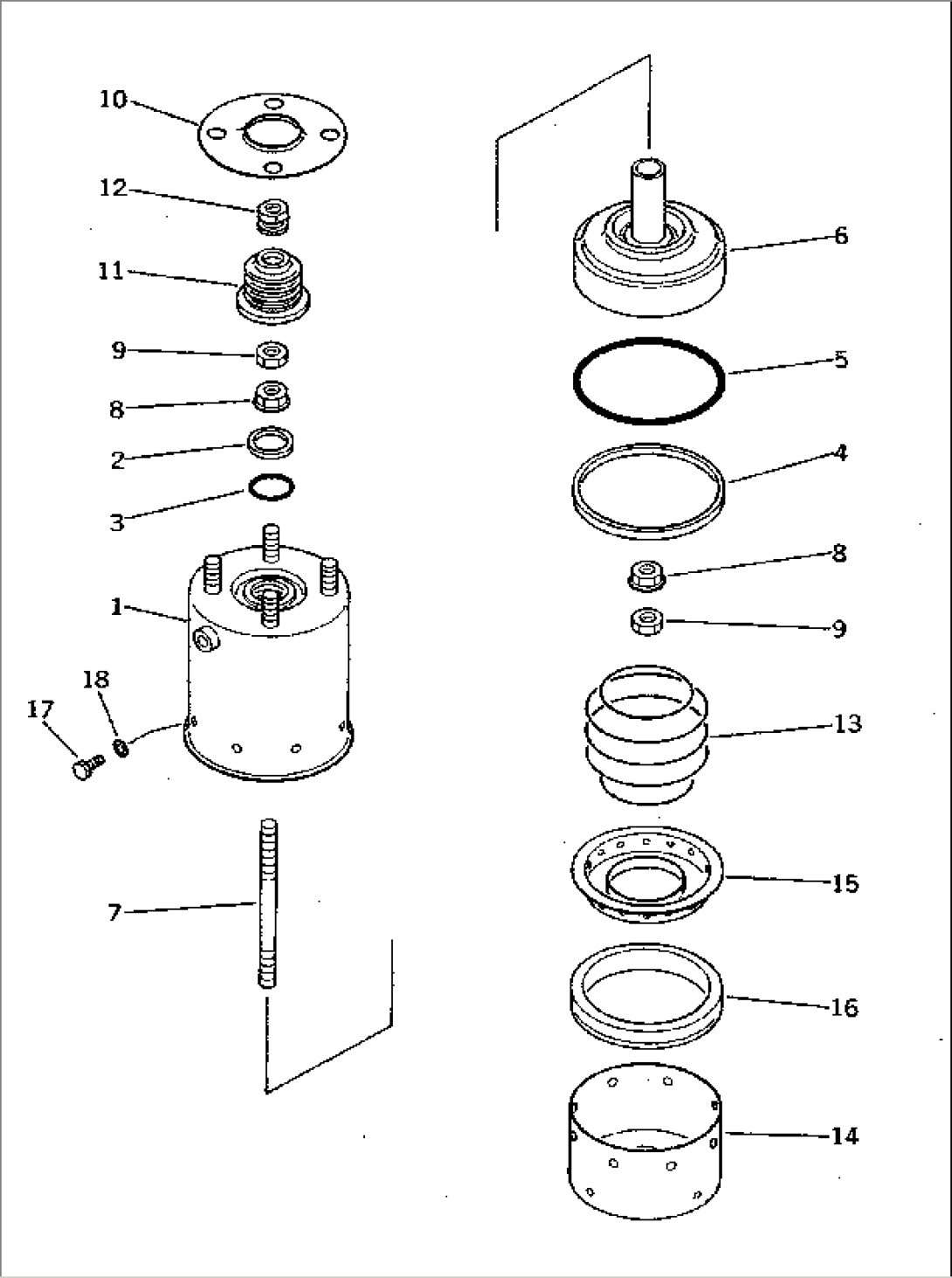

| 426-32-15500 | SPRING CYLINDER A. | 10001- | ||
| 1 | 566-43-17650 | CYLINDER | 10001- | |
| 566-43-05010 | SERVICE KIT | 10001- | ||
| 2 | \6\ | RING | 10001- | |
| 3 | \6\ | O-RING | 10001- | |
| 4 | \6\ | RING | 10001- | |
| 5 | \6\ | O-RING | 10001- | |
| 6 | 566-43-17680 | PISTON | 10001- | |
| 7 | 425-32-15510 | ROD | 10001- | |
| 8 | 568-43-17760 | NUT | 10001- | |
| 9 | 566-43-17760 | NUT | 10001- | |
| 10 | 566-43-17860 | RETAINER | 10001- | |
| 11 | 566-43-17830 | BOOT | 10001- | |
| 12 | 566-43-17840 | NUT | 10001- | |
| 13 | 568-43-17770 | SPRING | 10001- | |
| 14 | 566-43-17810 | COVER | 10001- | |
| 15 | 566-43-17780 | HOLDER | 10001- | |
| 16 | 566-43-17790 | FILTER | 10001- | |
| 17 | 566-43-17820 | BOLT | 10001- | |
| 18 | 566-43-17850 | WASHER | 10001- |
