| Item | Part No. | Part Name | Qty | Serial No. |
| 561-34-41000 | MOUNTING ASS'Y,PARKING BRAKE | 1501- | ||

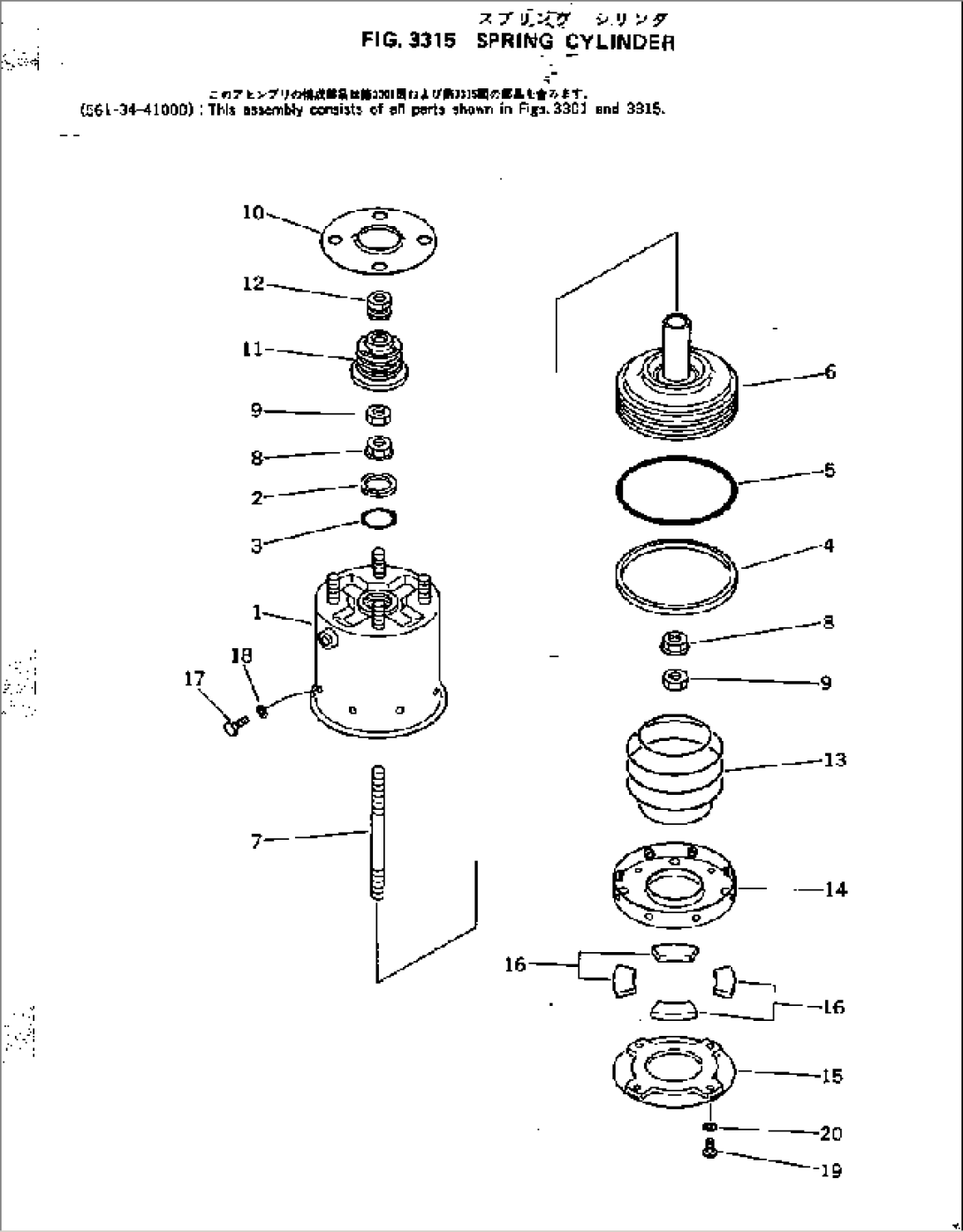

| 426-32-15501 | SPRING CYLINDER A. | 1501- | ||
| 1 | 426-32-15520 | CYLINDER | 1501- | |
| 566-43-05010 | SERVICE KIT | 1501- | ||
| 2 | \6\ | RING | 1501- | |
| 3 | \6\ | O-RING | 1501- | |
| 4 | \6\ | RING | 1501- | |
| 5 | \6\ | O-RING | 1501- | |
| 6 | 566-43-17680 | PISTON | 1501- | |
| 7 | 425-32-15510 | ROD | 1501- | |
| 8 | 566-43-17760 | NUT | 1501- | |
| 9 | 566-43-17760 | NUT | 1501- | |
| 10 | 566-43-17860 | RETAINER | 1501- | |
| 11 | 566-43-17830 | BOOT | 1501- | |
| 12 | 566-43-17840 | NUT | 1501- | |
| 13 | 568-43-17770 | SPRING | 1501- | |
| 14 | 566-32-15550 | COVER | 1501- | |
| 15 | 426-32-15530 | HOLDER | 1501- | |
| 16 | 426-32-15540 | FILTER | 1501- | |
| 17 | 566-43-17820 | BOLT | 1501- | |
| 18 | 566-43-17850 | WASHER | 1501- | |
| 19 | 426-32-15560 | SCREW | 1501- | |
| 20 | 426-32-15570 | WASHER | 1501- |
