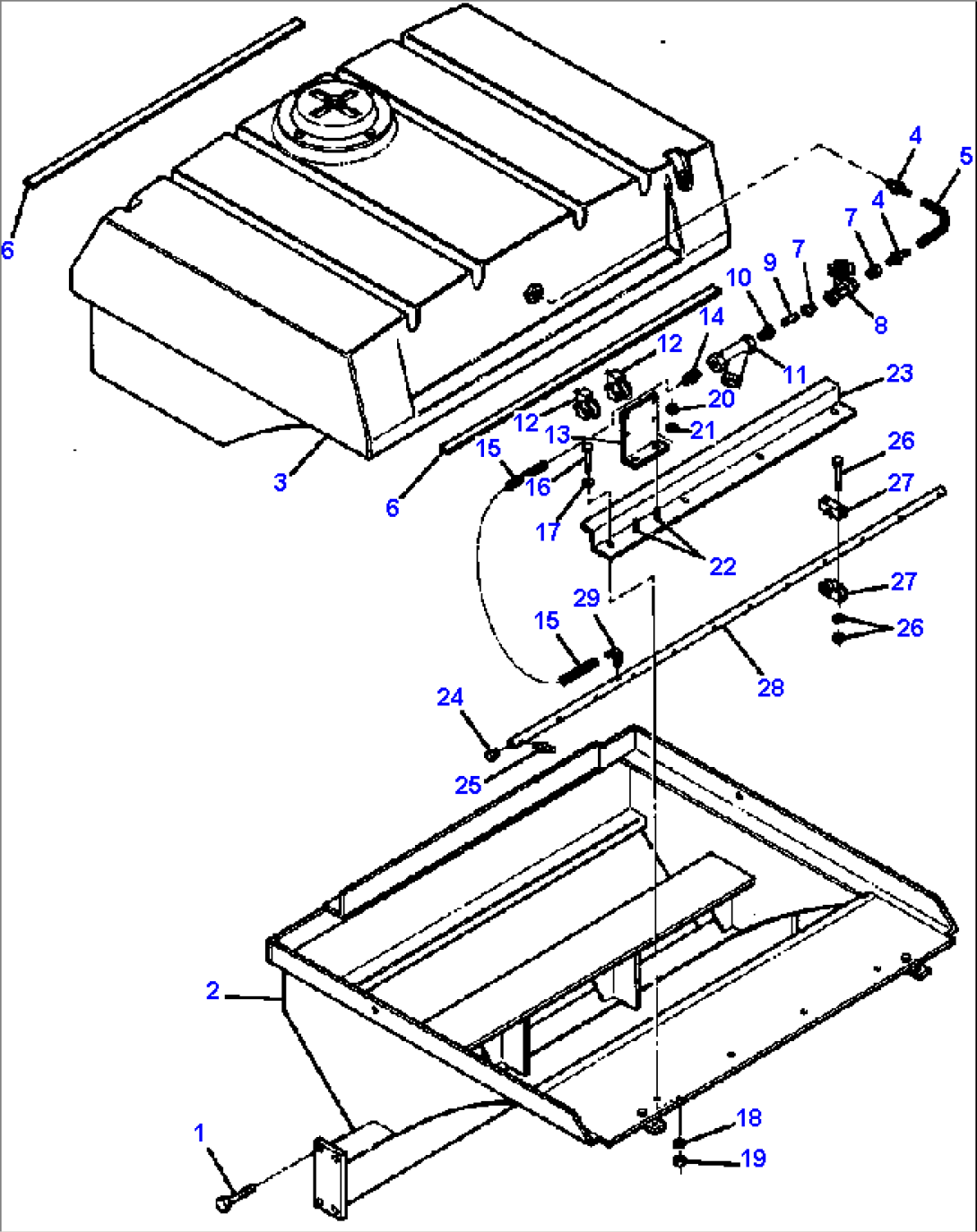

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 29 920 | BOLT | ||
| 33 387 | WASHER, LOCK | |||
| 76 040 | NUT, HEX | |||
| 2 | 128 012 | SUPPORT, TANK | ||
| 3 | TANK, WATER (SEE PG 17-006) | |||
| 4 | 163 356 | CONNECTOR, BARBED | ||
| 5 | 67 420 | HOSE | ||
| 6 | 124 730 | STRIP, SEAL | ||
| 7 | 126 138 | BUSHING | ||
| 8 | 141 683 | VALVE | ||
| 9 | 126 133 | NIPPLE | ||
| 10 | 138 915 | BUSHING | ||
| 11 | STRAINER (SEE PG 17-022) | |||
| 12 | 1277 830 H91 | CLAMP | ||
| 13 | 141 363 | BRACKET | ||
| 14 | 158 423 | ADAPTER | ||
| 15 | 158 428 | HOSE | ||
| 16 | 70 106 | BOLT | ||
| 17 | 76 732 | WASHER, PLAIN | ||
| 18 | 33 384 H45 | WASHER, LOCK | ||
| 19 | 44 870 | NUT, HEX | ||
| 20 | 44 870 | NUT, HEX | ||
| 21 | 33 384 H45 | WASHER, LOCK | ||
| 22 | 48 204 | STUD | ||
| 23 | 119 769 | BRACKET, RETAINING | ||
| 24 | 155 982 | PLUG, PIPE | ||
| 25 | 1431 173 H91 | NOZZLE | ||
| 26 | 82 078 | BOLT | ||
| 48 015 | WASHER, LOCK | |||
| 82 151 | NUT, HEX | |||
| 27 | 119 402 | CLAMP | ||
| 118 448 | BUSHING | |||
| 28 | 1431 171 H1 | BAR, SPRINKLER PIPE | ||
| 29 | 154 857 | ELBOW, BARBED |
