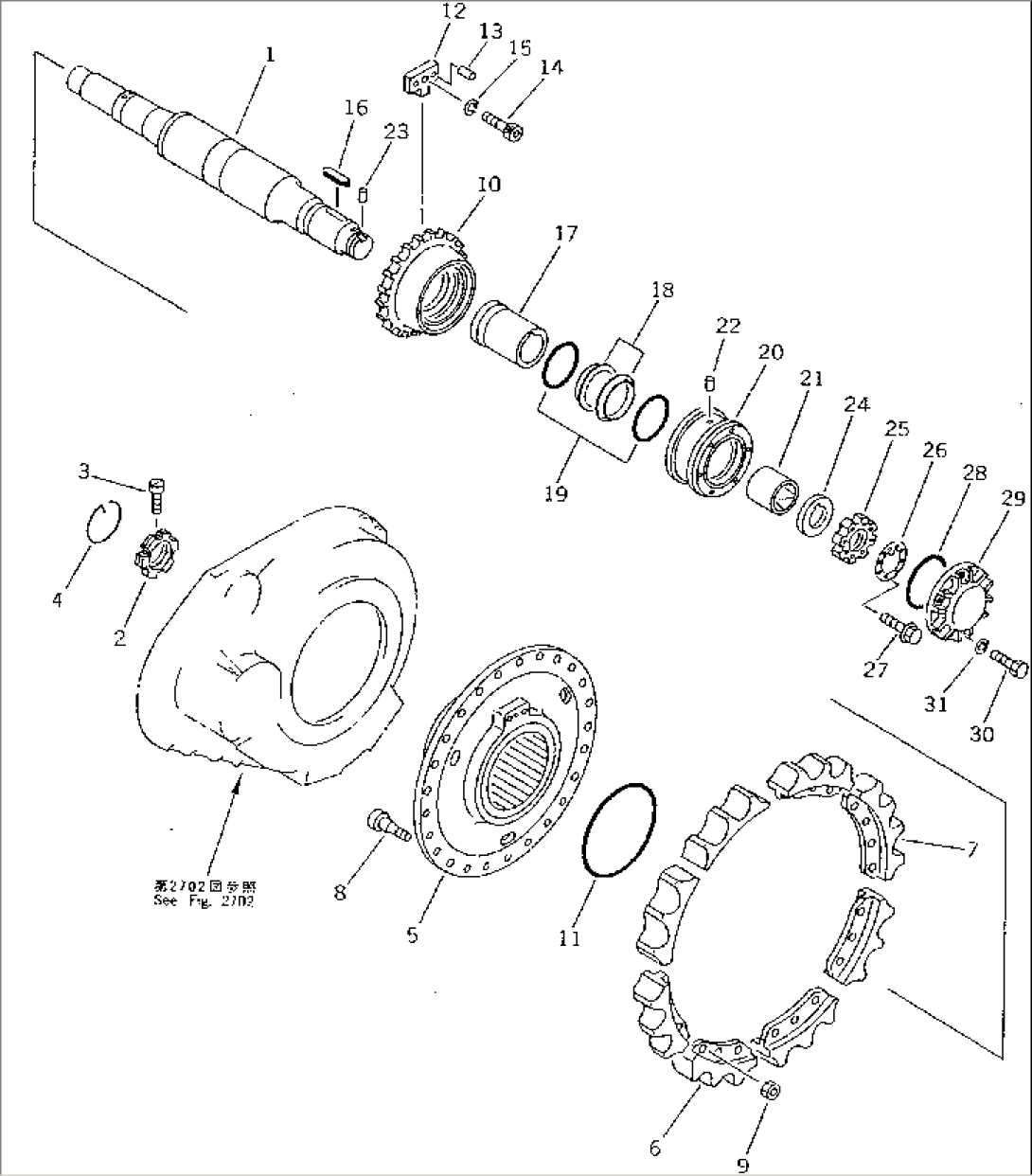

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 15A-27-11110 | SHAFT | 10301- | |
| 2 | 170-27-12472 | NUT | 10301- | |
| 3 | 09243-01230 | PIN | 10301- | |
| 4 | 170-27-12480 | RING | 10301- | |
| 5 | 15A-27-11170 | BOSS,SPROCKET | 10301- | |
| 6 | 15A-27-11180 | TEETH,SPROCKET, 3-TEETH | 10301- | |
| 7 | 15A-27-11190 | TEETH,SPROCKET, 4-TEETH | 10301- | |
| 8 | 178-27-11150 | BOLT | 10301- | |
| 9 | 01803-12430 | NUT,SHOE | 10301- | |
| 10 | 175-27-22150 | NUT,HUB | 10301- | |
| 11 | 07000-05315 | O-RING | 10301- | |
| 12 | 175-27-31480 | STOPPER | 10301- | |
| 13 | 170-27-12250 | PIN,DOWEL | 10301- | |
| 14 | 01252-41635 | BOLT | 10301- | |
| 15 | 01602-01648 | WASHER,SPRING | 10301- | |
| 16 | 04000-01580 | KEY | 10301- | |
| 17 | 175-27-31411 | SPACER | 10301- | |
| 21T-30-00110 | FLOATING SEAL ASS'Y | 10301- | ||
| 18 | \6\ | RING | 10301- | |
| 19 | \6\ | O-RING | 10301- | |
| 175-27-00082 | SUPPORT ASS'Y | 10301- | ||
| 20 | \6\ | SUPPORT,SPROCKET | 10301- | |
| 21 | 175-27-31441 | BUSHING | 10301- | |
| 22 | 04020-01638 | PIN,DOWEL | 10301- | |
| 23 | 175-27-32510 | PIN,DOWEL | 10301- | |
| 24 | 175-27-22255 | WASHER | 10301- | |
| 25 | 175-27-22272 | NUT | 10301- | |
| 26 | 175-27-31550 | PLATE | 10301- | |
| 27 | 01435-01220 | BOLT | 10301- | |
| 28 | 07000-05185 | O-RING | 10301- | |
| 29 | 175-27-22242 | COVER | 10301- | |
| 30 | 01010-51645 | BOLT | 10301- | |
| 31 | 01643-31645 | WASHER | 10301- |
