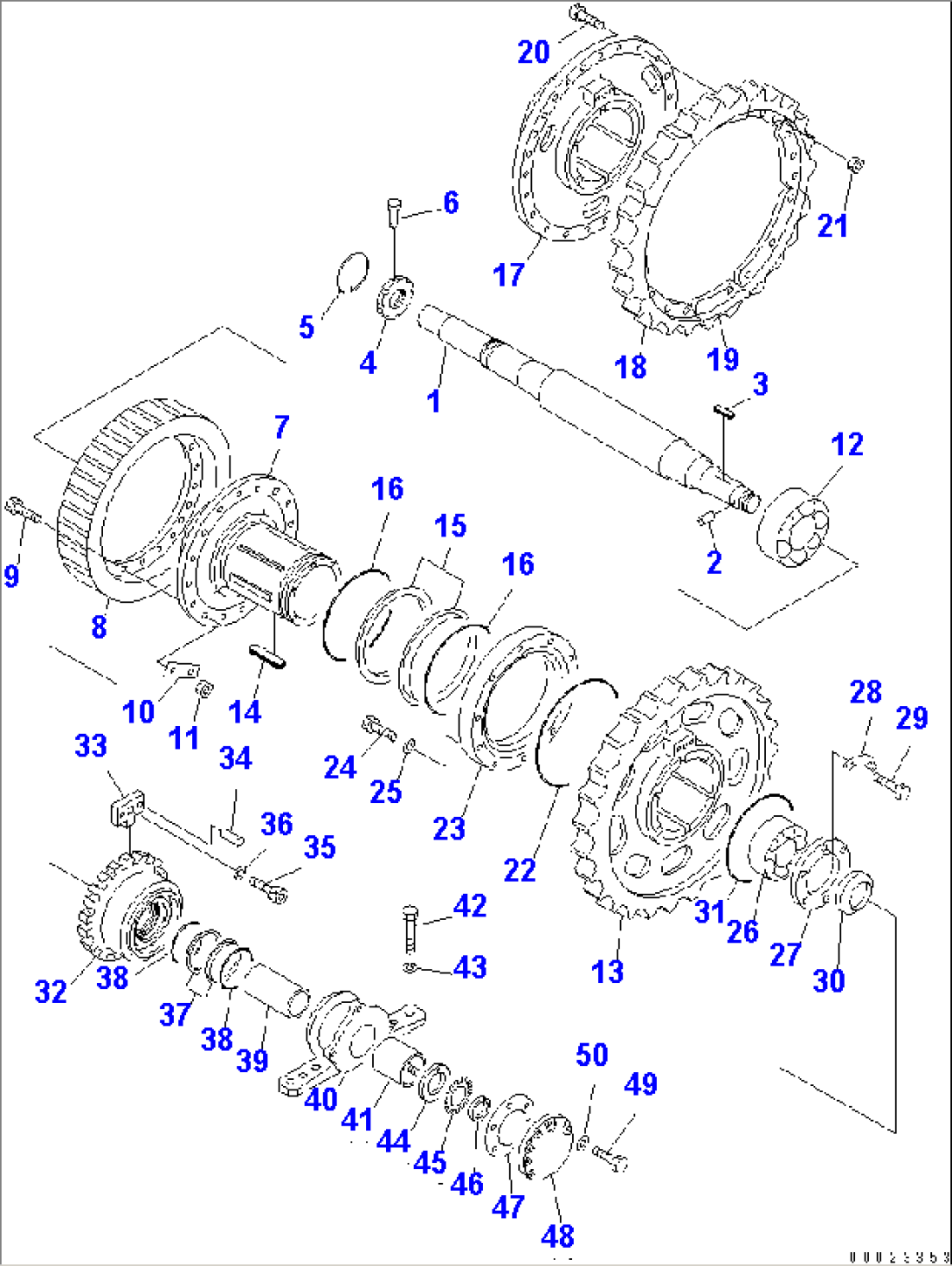

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-27-15190 | SHAFT | 1007- | |
| 2 | 170-27-12420 | PIN | 1001- | |
| 3 | 04000-01280 | KEY | 1001- | |
| 4 | 170-27-12472 | NUT | 1001- | |
| 5 | 170-27-12480 | RING | 1001- | |
| 6 | 170-27-12491 | PIN | 1001- | |
| 7 | 154-27-15180 | HUB | 1007- | |
| 8 | 154-27-12110 | GEAR | 1001- | |
| 9 | 175-27-12181 | BOLT | 1001- | |
| 10 | 175-27-12190 | LOCK | 1001- | |
| 11 | 01582-02419 | NUT | 1001- | |
| 12 | 150-09-13220 | BEARING | 1007- | |
| 13 | 154-27-12214 | SPROCKET | 1007- | |
| 14 | 170-27-12150 | KEY | 1001- | |
| 170-27-00021 | FLOATING SEAL ASS'Y | 1001- | ||
| 15 | 170-27-00111 | SEAL RING ASS'Y | 1001- | |
| 15 | \6\ | RING | 1001- | |
| 16 | 170-27-00120 | O-RING ASS'Y | 1001- | |
| 16 | \6\ | O-RING | 1001- | |
| 17 | 155-27-12172 | BOSS | 1001- | |
| 18 | 154-27-12271 | TEETH | 1001- | |
| 19 | 154-27-12281 | TEETH | 1001- | |
| 20 | 155-27-12181 | BOLT | 1001- | |
| 21 | 01803-02228 | NUT | 1001- | |
| 22 | 07000-05410 | O-RING | 1001- | |
| 23 | 154-27-12162 | COVER | 1007- | |
| 24 | 01010-31230 | BOLT | 1007- | |
| 25 | 01602-01236 | WASHER | 1001- | |
| 26 | 06030-23222 | BEARING | 1001- | |
| 27 | 170-27-12181 | RETAINER | 1001- | |
| 28 | 170-27-12210 | WASHER | 1001- | |
| 29 | 01010-31440 | BOLT | 1001- | |
| 30 | 154-27-12380 | SPACER | 1001- | |
| 31 | 07000-05315 | O-RING | 1001- | |
| 32 | 170-27-12232 | NUT | 1001- | |
| 33 | 170-27-12241 | STOPPER | 1001- | |
| 34 | 170-27-12250 | PIN | 1001- | |
| 35 | 01252-31635 | BOLT | 1001- | |
| 36 | 01602-01648 | WASHER | 1001- | |
| 198-30-00070 | FLOATING SEAL ASS'Y | 1001- | ||
| 37 | 198-30-00080 | SEAL RING ASS'Y | 1001- | |
| 37 | \6\ | RING, SEAL | 1001- | |
| 38 | 170-27-00080 | O-RING ASS'Y | 1001- | |
| 38 | \6\ | O-RING | 1001- | |
| 39 | 154-27-12350 | SPACER | 1001- | |
| 154-27-00291 | SUPPORT ASS'Y | 1001- | ||
| 40 | \6\ | SUPPORT | 1001- | |
| 41 | 154-27-12340 | BUSHING | 1001- | |
| 42 | 01010-32460 | BOLT | 1001- | |
| 43 | 01602-02472 | WASHER | 1001- | |
| 44 | 154-27-12421 | SPACER | 1001- | |
| 45 | 154-27-12430 | WASHER | 1001- | |
| 46 | 154-27-12410 | NUT | 1001- | |
| 47 | 154-27-12370 | GASKET | 1001- | |
| 48 | 154-27-12360 | COVER | 1001- | |
| 49 | 01010-31645 | BOLT | 1001- | |
| 50 | 01602-01648 | WASHER | 1001- |
