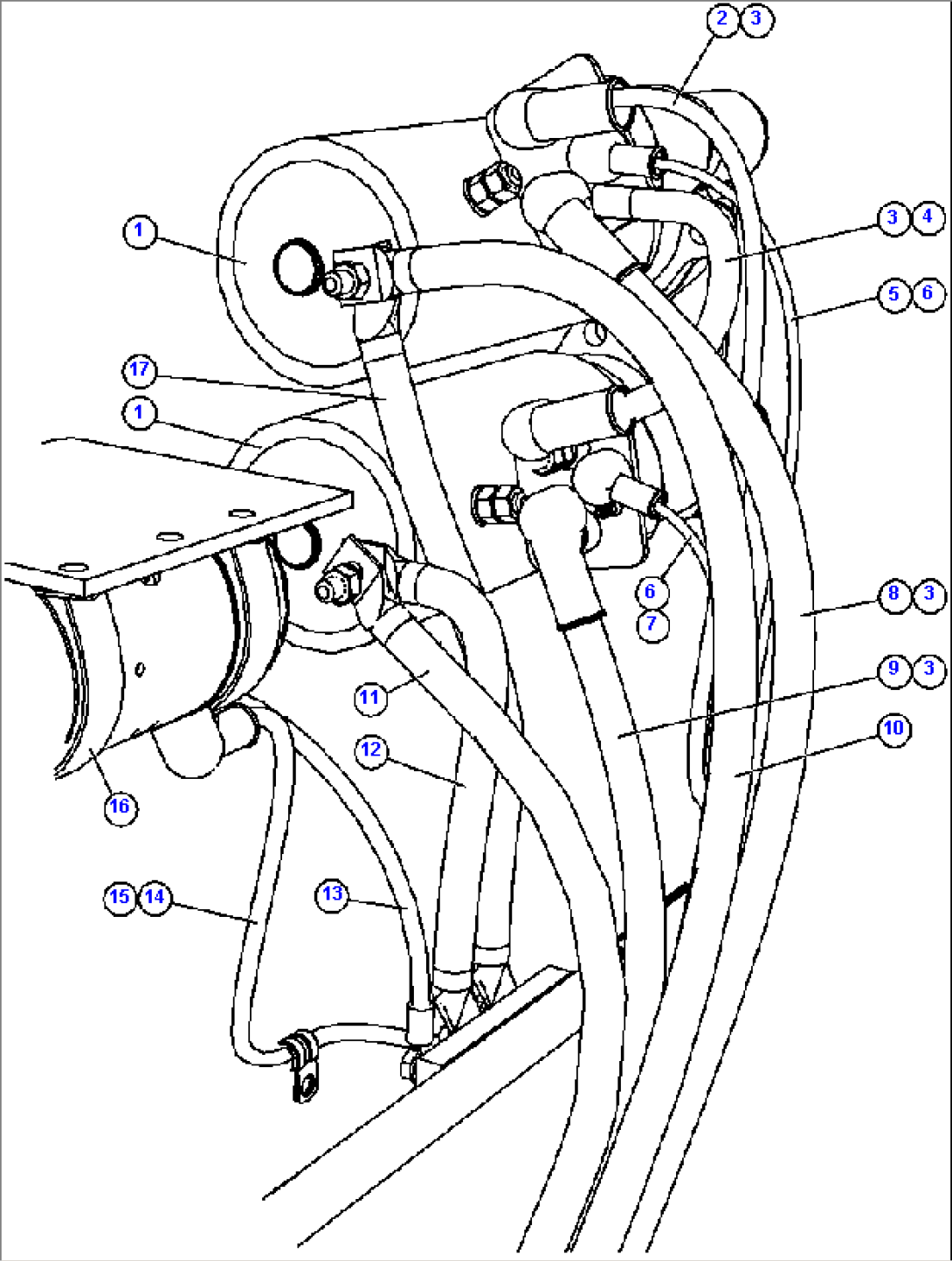

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XA4424 | MOTOR, CRANKING | ||
| 2 | CH4461 | CABLE (RED) | ||
| 3 | 08038-00035 | CAP, TERMINAL | ||
| 4 | CH4605 | CABLE (RED) | ||
| 5 | CH4176 | CABLE (RED) | ||
| 6 | 08038-02027 | CAP, TERMINAL | ||
| 7 | CH4177 | CABLE (RED) | ||
| 8 | CH3866 | CABLE (RED) | ||
| 9 | CH3838 | CABLE (RED) | ||
| 10 | CH4046 | CABLE (BLACK) | ||
| 11 | CH4032 | CABLE (BLACK) | ||
| 12 | CH5722 | CABLE (BLACK) | ||
| 13 | CH4322 | CABLE (BLACK) | ||
| 14 | EM5604 | FUSABLE LINK - 300 AMP | ||
| 15 | 08038-04030 | CAP, TERMINAL | ||
| 16 | MOTOR, PRE-LUBE | |||
| 17 | CH4007 | CABLE (BLACK) |
