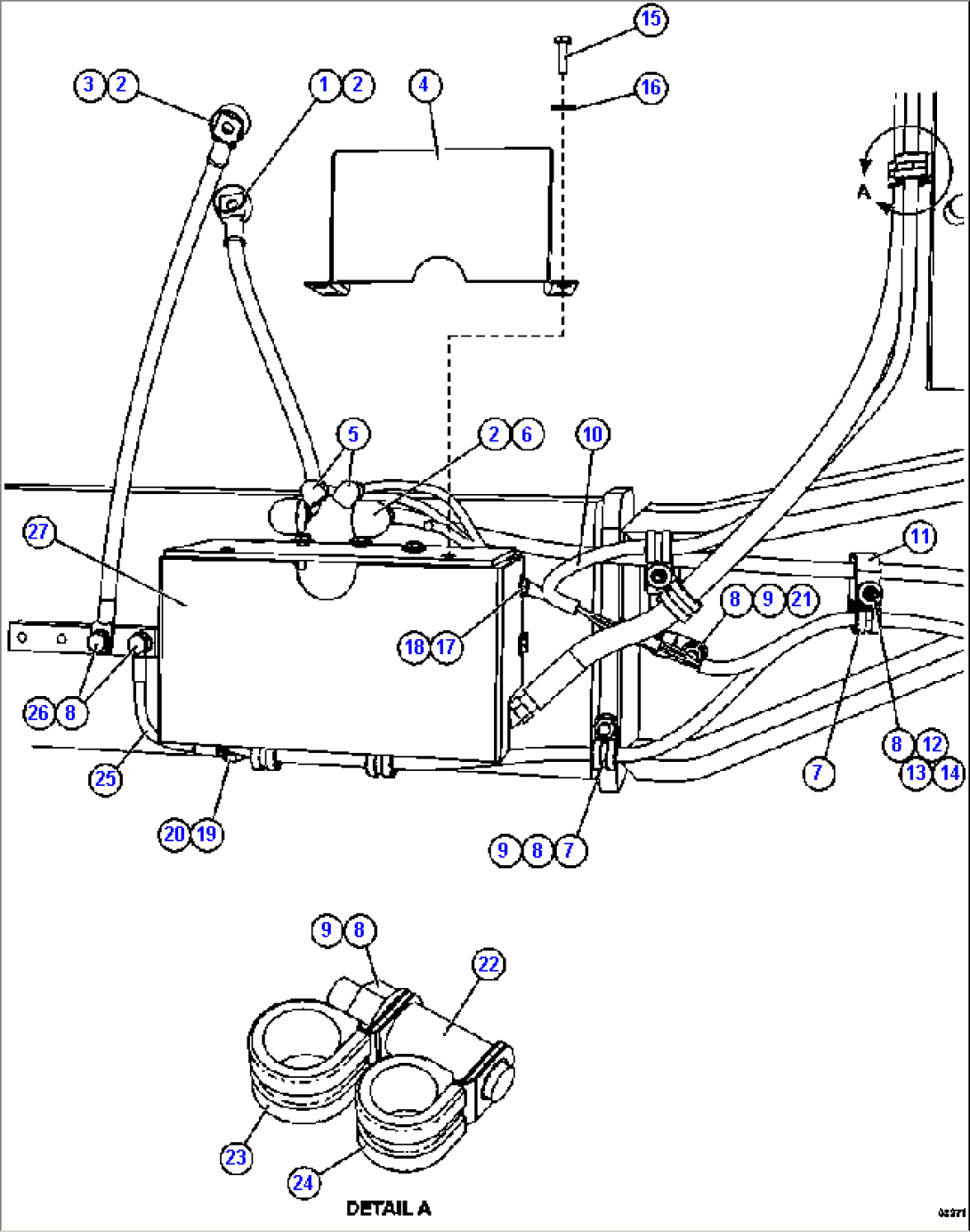

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | CH4452 | CABLE - RED | ||
| 2 | 08038-02027 | CAP, TERMINAL | ||
| 3 | CH4327 | CABLE - BLACK | ||
| 4 | XB9062 | COVER (PRELUBE TIMER & RELAY) | ||
| 5 | 08038-00519 | CAP, TERMINAL | ||
| 6 | EM6151 | LINK, FUSABLE | ||
| 7 | WB1300 | CLAMP, CUSHIONED - 5/8" | ||
| 8 | MM0461 | FLAT WASHER - M10 | ||
| 9 | MM0178 | NUT - M10 X 1.50 | ||
| 10 | EM6152 | HARNESS, PRE LUBE | ||
| 11 | EK7154 | CLAMP | ||
| 12 | EM3364 | ROD, THREADED - M6 X 1.00 X 50 | ||
| 13 | MM0459 | FLAT WASHER - M6 | ||
| 14 | MM0176 | NUT - M6 X 1.00 | ||
| 15 | TR1306 | CAPSCREW - 1/4" - 20NC X 1" | ||
| 16 | C1546 | FLAT WASHER - 1/4" | ||
| 17 | TD1809 | CAPSCREW - 1/4" - 20NC X 3/4" | ||
| 18 | TR1307 | FLAT WASHER - 1/4" | ||
| 19 | TC1234 | CAPSCREW - 3/8" - 16NC X 3/4" | ||
| 20 | TR4436 | FLAT WASHER - 3/8" | ||
| 21 | 08193-21012 | CLIP | ||
| 22 | EM1398 | SPACER | ||
| 23 | WB3092 | CLAMP, CUSHIONED - 7/8" | ||
| 24 | WB1303 | CLAMP, CUSHIONED - 3/4" | ||
| 25 | CH3423 | CABLE | ||
| 26 | MM0036 | CAPSCREW - M10 X 1.50 X 20 | ||
| 27 | EJ5625 | COVER | ||
| NS|28 | NOTE: NS = NOT SHOWN |
