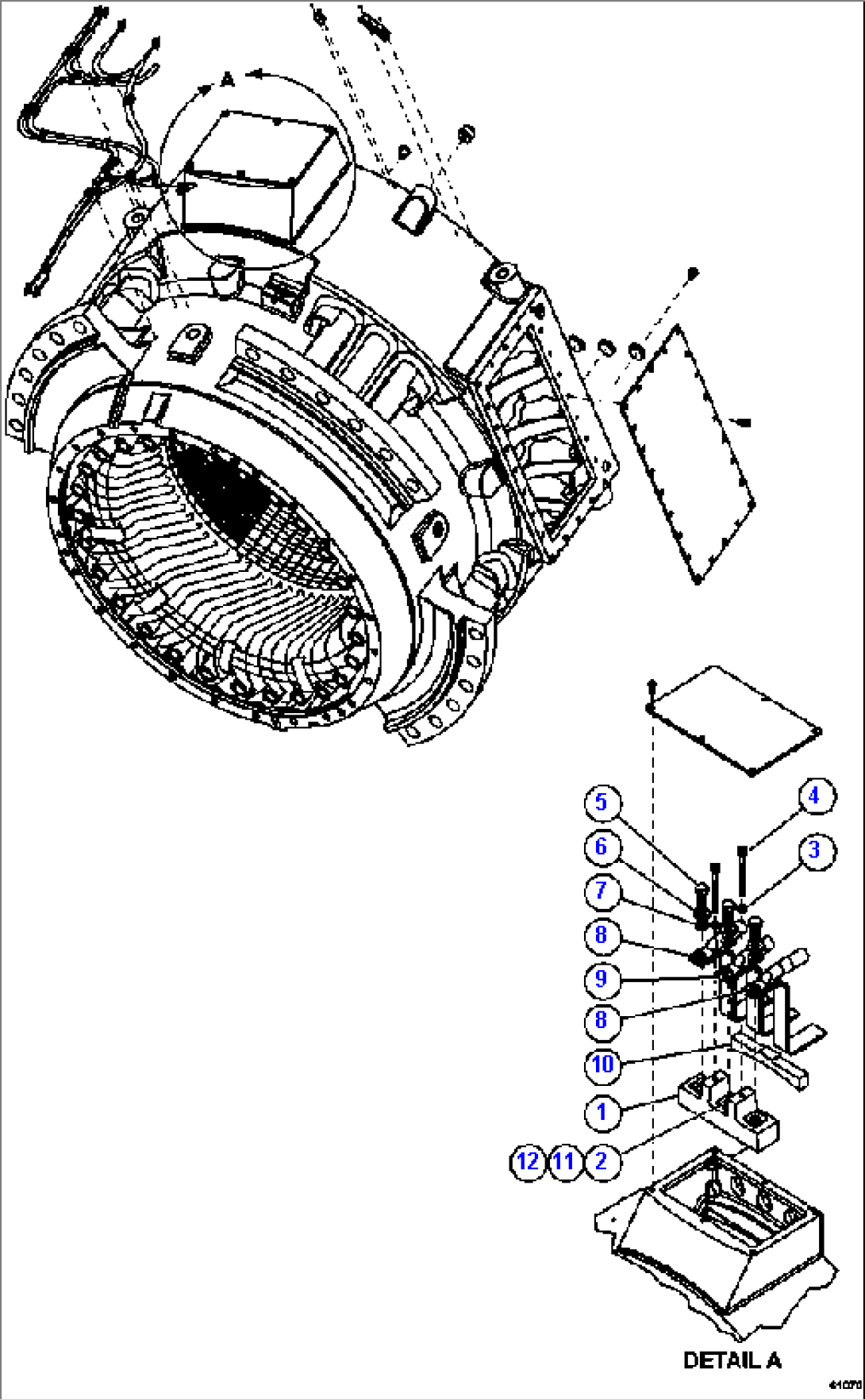

| Item | Part No. | Part Name | Qty | Serial No. |
| 0 | XA5331 | STATOR | ||
| 1 | XA4748 | INSULATOR, TERMINAL POST | ||
| 2 | XA4758 | TAPE | ||
| 3 | XA4751 | WASHER - M8 | ||
| 4 | SCREW - M8 X 20 | |||
| 5 | SCREW - M16 X 40 | |||
| 6 | XA4836 | LOCKWASHER - M16 | ||
| 7 | WASHER - M16 | |||
| 8 | XA4658 | BAR, CONNECTING - U1/W1 | ||
| 9 | XA4657 | BAR, CONNECTING - V1 | ||
| 10 | XA4672 | SPACER | ||
| 11 | XA4764 | FLAT | ||
| 12 | XA4765 | FLAT | ||
| NS|14 | NOTE: (1) PART OF WHEEL MOTOR HARNESS. |
