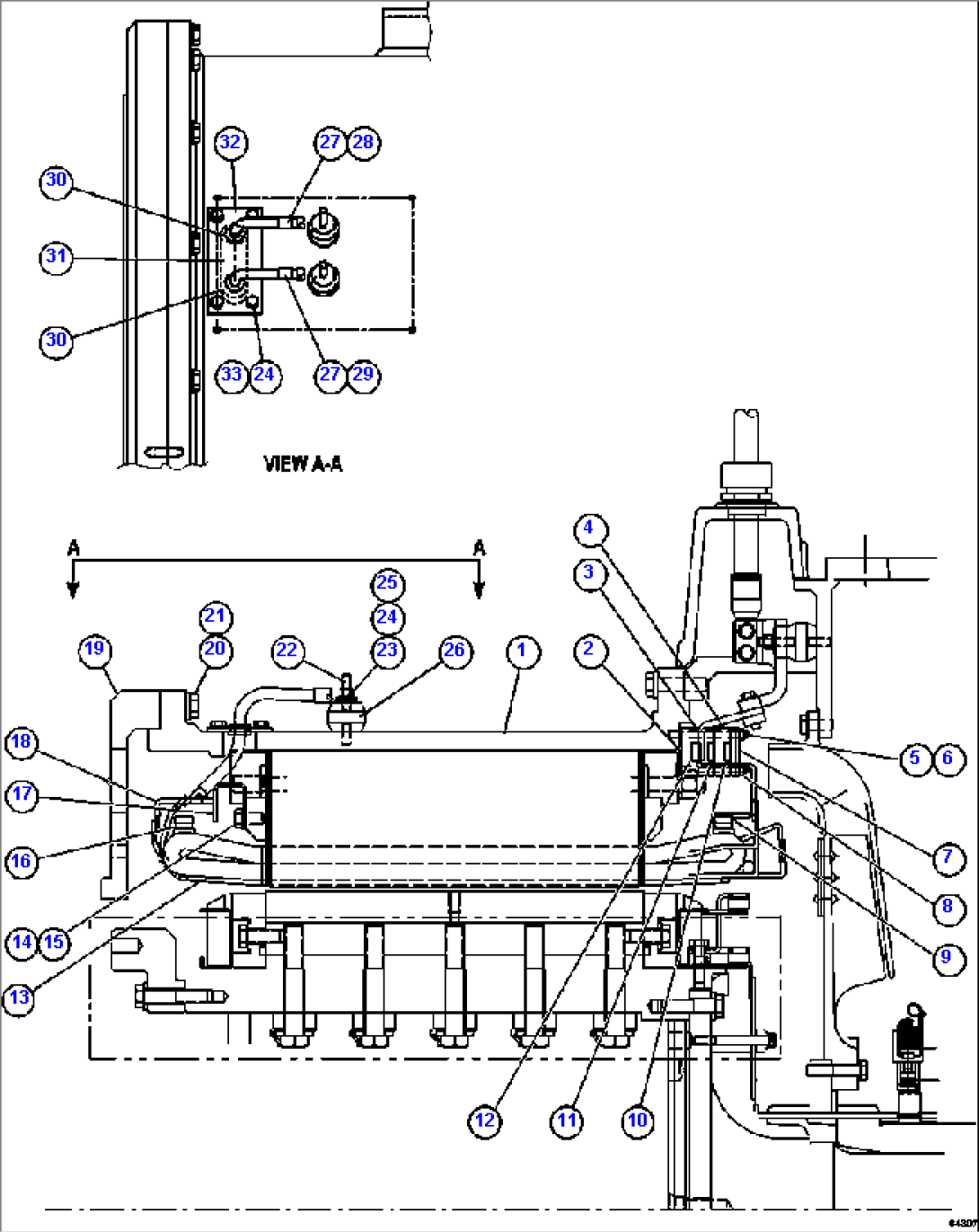

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | GE1132 | STATOR FRAME & CORE ASSEMBLY | | |
| 2 | GE1135 | BRACKET ASSEMBLY | | |
| 3 | GE1137 | C-CLAMP, BUS RING | | |
| 4 | GE1136 | SLEEVE, INSULATED | | |
| 5 | GE1340 | STUD - 1/4" - 20NC X 3 3/4" | | |
| 6 | VE4481 | LOCKNUT - 1/4" - 20NC | | |
| 7 | GE1139 | BAR, CLAMP | | |
| 8 | GE1138 | CLAMP, BUS RING | | |
| 9 | GE1134 | BUS RING, INSULATED | | |
| 10 | GE1142 | BUS RING, INSULATED (T3) | | |
| 11 | GE1141 | BUS RING, INSULATED (T2) | | |
| 12 | GE1140 | BUS RING, INSULATED (T1) | | |
| 13 | GE1131 | REWIND KIT, STATOR | | |
| 14 | VE5185 | FLAT WASHER - 1/2" | | |
| 15 | VE4542 | CAPSCREW - 1/2" - 13NC X 1" | | |
| 16 | GE1133 | TIE RING, INSULATED | | |
| 17 | VE4342 | BRACKET | | |
| 18 | GE1143 | STRAP, NEUTRALIZING | | |
| 19 | GE1378 | ADAPTER, FRAME | | |
| 20 | VS6852 | CAPSCREW - 5/8" - 11NC X 2 1/2" | | |
| 21 | VJ8959 | FLAT WASHER - 5/8" | | |
| 22 | VS6813 | STUD, INSULATED | | |
| 23 | TC1233 | NUT - 3/8" - 16NC | | |
| 24 | VE4687 | LOCKWASHER - 3/8" | | |
| 25 | VE4515 | FLAT WASHER - 3/8" | | |
| 26 | VE4750 | INSULATOR W/STUD | | |
| 27 | XA4422 | CABLE | | |
| 28 | GE1168 | CABLE MARKER | | |
| 29 | GE1169 | CABLE MARKER | | |
| 30 | VE1200 | GROMMET | | |
| 31 | GE1347 | PAD | | |
| 32 | XA4107 | COVER | | |
| 33 | TC1234 | CAPSCREW - 3/8" - 16NC X 3/4" | | |
