| Item | Part No. | Part Name | Qty | Serial No. |
| (19M-979-0011) | STEEL CAB ASS'Y | 10012- | ||
| (\0\19M-979-0010) | STEEL CAB ASS'Y | 10001-10011 | ||
| (19M-979-0020) | STEEL CAB ASS'Y | 10017-10017 | ||

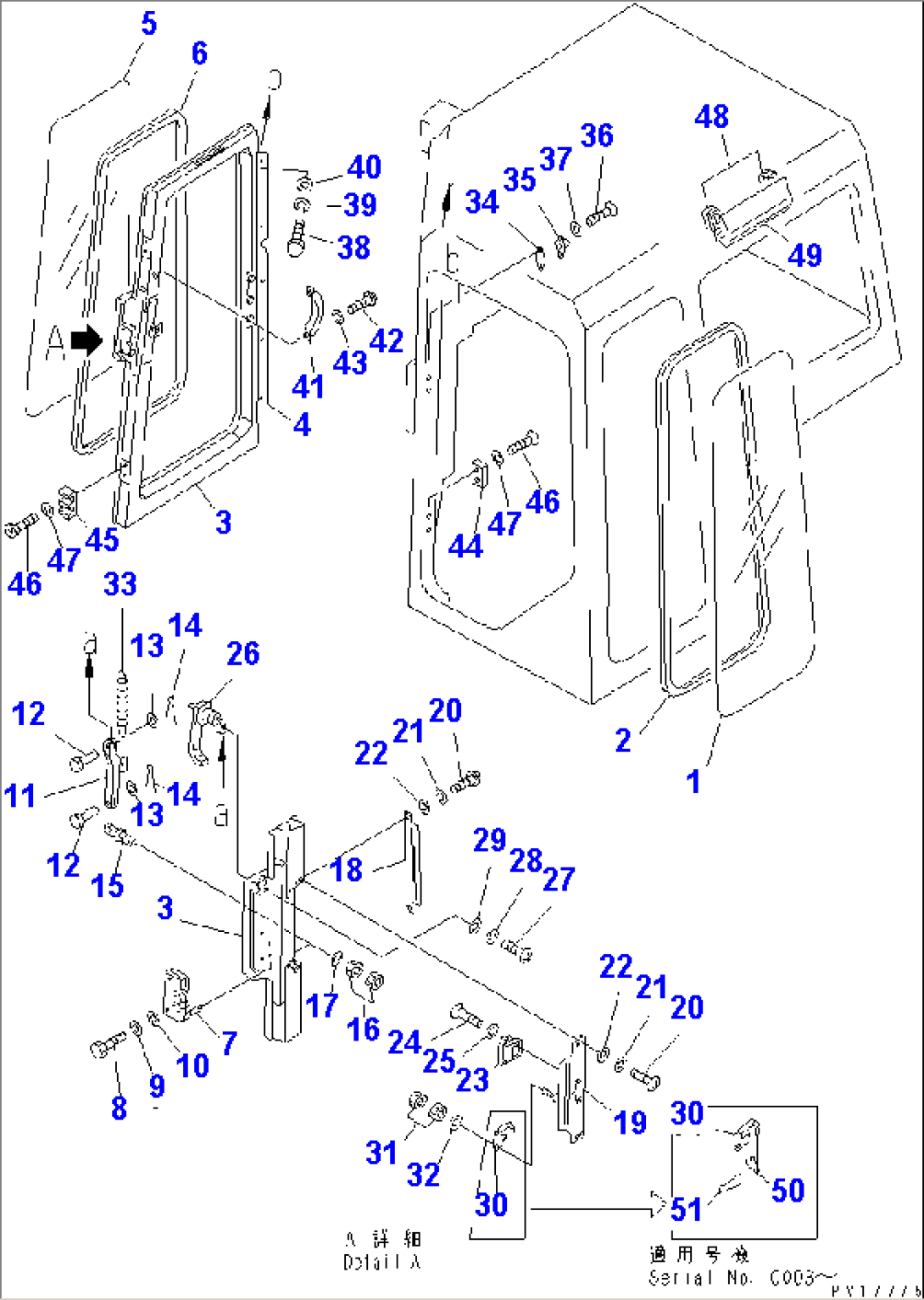

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-09A0. | ||||
| 1 | 19M-979-3161 | GLASS | 10001- | |
| 2 | 19M-979-3171 | STRIP,WEATHER | 10001- | |
| 3 | 195-Z11-1132 | DOOR,R.H. | 10001- | |
| 4 | 195-Z11-1791 | HINGE (WELDED) | 10001- | |
| 5 | 195-Z11-1220 | GLASS | 10001- | |
| 6 | 195-Z11-1150 | STRIP,WEATHER | 10001- | |
| 7 | 195-Z11-4520 | LOCK | 10001- | |
| 8 | 01010-80635 | BOLT | 10001- | |
| 9 | 01643-30623 | WASHER | 10001- | |
| 10 | 702-25-21710 | SEAT | 10001- | |
| 11 | 195-Z11-4550 | ROD | 10001- | |
| 12 | 04205-10516 | PIN | 10001- | |
| 13 | 01641-20508 | WASHER | 10001- | |
| 14 | 04050-11210 | PIN,COTTER | 10001- | |
| 15 | 195-Z11-4640 | ROD | 10001- | |
| 16 | 01580-10605 | NUT | 10001- | |
| 17 | 01643-30623 | WASHER | 10001- | |
| 18 | 195-Z11-1590 | COVER | 10001- | |
| 19 | 195-Z11-4620 | COVER | 10001- | |
| 20 | 195-Z11-1710 | SCREW | 10001- | |
| 21 | 01601-20513 | WASHER,SPRING | 10001- | |
| 22 | 01642-20508 | WASHER | 10001- | |
| 23 | 195-Z11-1610 | HANDLE | 10001- | |
| 24 | 195-Z11-1730 | SCREW | 10001- | |
| 25 | 195-Z11-1690 | WASHER | 10001- | |
| 26 | 195-Z11-1540 | HANDLE | 10001- | |
| 27 | 195-Z11-1710 | SCREW | 10001- | |
| 28 | 01601-20513 | WASHER,SPRING | 10001- | |
| 29 | 01641-20508 | WASHER | 10001- | |
| 30 | 195-Z11-4591 | LEVER | 10003- | |
| 30 | 195-Z11-4590 | LEVER | 10001-10002 | |
| 31 | 01580-10605 | NUT | 10001- | |
| 32 | 01643-30623 | WASHER | 10001- | |
| 33 | 6970-51-2221 | SPRING | 10001- | |
| 34 | 195-Z11-4570 | SHIM, 1.6MM | 10001- | |
| 35 | 195-Z11-4530 | STOPPER | 10001- | |
| 36 | 195-Z11-4560 | SCREW | 10001- | |
| 37 | 566-54-13570 | WASHER | 10001- | |
| 38 | 01010-80825 | BOLT | 10001- | |
| 39 | 01602-20825 | WASHER,SPRING | 10001- | |
| 40 | 01643-30823 | WASHER | 10001- | |
| 41 | 195-Z11-1980 | GRIP | 10001- | |
| 42 | 195-979-7710 | SCREW | 10001- | |
| 43 | 01601-20513 | WASHER,SPRING | 10001- | |
| 44 | 566-54-13410 | STRIKER | 10001- | |
| 44 | 19M-979-3270 | STRIKER,(REINFORCED TYPE) | 10018- | |
| 45 | 566-54-14420 | STOPPER | 10001- | |
| 46 | 195-Z11-1740 | SCREW | 10001- | |
| 47 | 566-54-13570 | WASHER | 10001- | |
| 48 | 195-Z11-2980 | SEAL | 10001- | |
| 49 | 195-Z11-3130 | SHEET | 10001- | |
| 50 | 195-Z11-1630 | CLIP | 10003- | |
| 51 | 04050-11210 | PIN,COTTER | 10003- |
