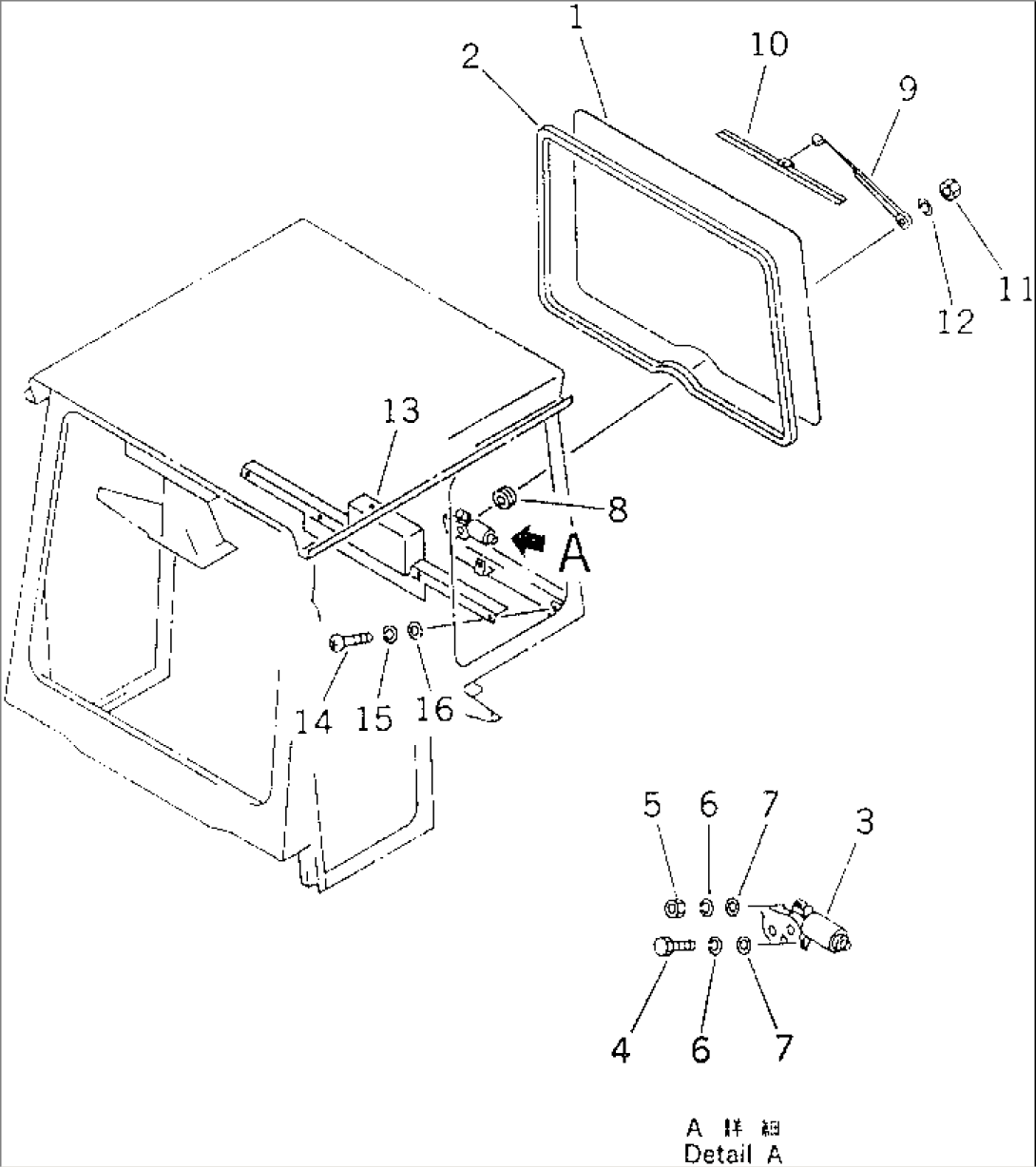

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 142-911-2280 | GLASS | 1188- | |
| 2 | 09410-40400 | STRIP,WEATHER | 1001- | |
| 3 | 142-979-2340 | WIPER MOTOR ASS'Y | 1001- | |
| 4 | 01010-50825 | BOLT | 1001- | |
| 5 | 01580-10806 | NUT | 1001- | |
| 6 | 01602-20825 | WASHER,SPRING | 1001- | |
| 7 | 01643-30823 | WASHER | 1001- | |
| 8 | 113-899-6380 | GROMMET | 1001- | |
| 9 | 142-979-2351 | ARM | 1001- | |
| 10 | 08185-00400 | BLADE | 1001- | |
| 11 | 01580-10806 | NUT | 1001- | |
| 12 | 01602-20825 | WASHER,SPRING | 1001- | |
| 13 | 142-911-2270 | COVER | 1188- | |
| 14 | 01220-40820 | SCREW | 1001- | |
| 15 | 01602-20825 | WASHER,SPRING | 1001- | |
| 16 | 01643-30823 | WASHER | 1001- |
