| Item | Part No. | Part Name | Qty | Serial No. |
| (273-955-0021) | CAB ASS'Y | 10302- | ||
| (273-955-0020) | CAB ASS'Y | 10011-10301 | ||

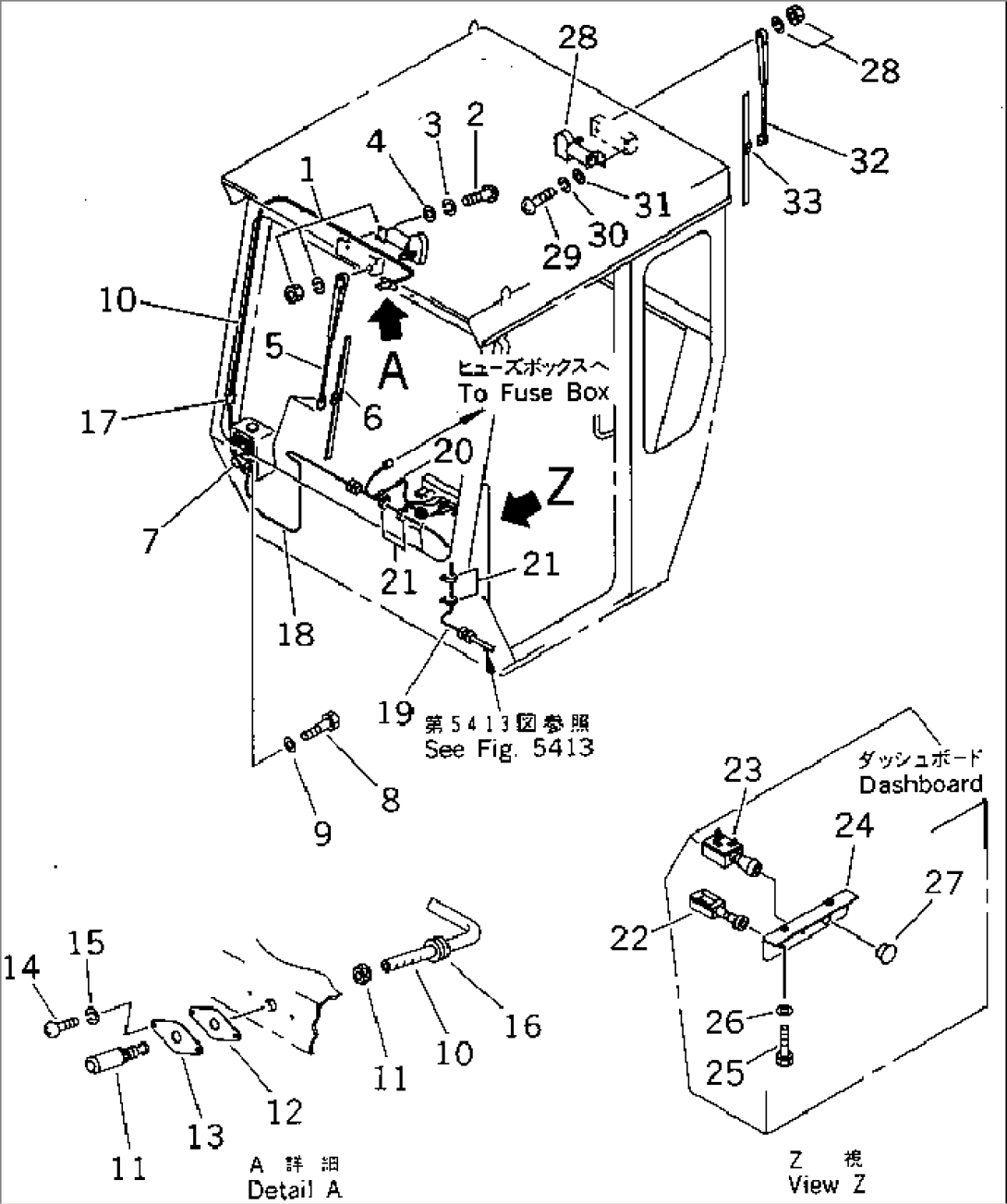

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5401 TO 5419. | ||||
| 1 | 08180-12410 | WIPER MOTOR ASS'Y | 10011- | |
| 2 | 01220-40512 | SCREW | 10011- | |
| 3 | 01601-20513 | WASHER,SPRING | 10011- | |
| 4 | 01641-20508 | WASHER | 10011- | |
| 5 | 08184-30500 | ARM | 10011- | |
| 6 | 205-06-62570 | BLADE | 10011- | |
| 7 | 206-06-15230 | TANK | 10011- | |
| 8 | 01010-50612 | BOLT | 10011- | |
| 9 | 01643-30623 | WASHER | 10011- | |
| 10 | 273-950-2240 | HOSE | 10011- | |
| 11 | 205-06-61220 | NOZZLE ASS'Y | 10011- | |
| 12 | 22W-54-18860 | SEAT | 10011- | |
| 13 | 22W-54-18850 | PLATE | 10011- | |
| 14 | 01220-40512 | SCREW | 10011- | |
| 15 | 01601-20513 | WASHER,SPRING | 10011- | |
| 16 | 08037-01008 | GROMMET | 10011- | |
| 17 | 232-856-5250 | CLIP | 10011- | |
| 18 | 273-950-2250 | HARNESS | 10011- | |
| 19 | 273-950-2111 | HARNESS | 10011- | |
| 20 | 232-856-5250 | CLIP | 10011- | |
| 21 | 08034-00310 | BAND | 10011- | |
| 22 | 205-06-61160 | SWITCH,FRONT WIPER | 10011- | |
| 23 | 08183-00000 | SWITCH,REAR WIPER | 10011- | |
| 24 | 273-950-2310 | BRACKET | 10011- | |
| 25 | 01010-50616 | BOLT | 10011- | |
| 26 | 01643-30623 | WASHER | 10011- | |
| 27 | 09415-01610 | CAP | 10011- | |
| 28 | 08180-12411 | WIPER MOTOR ASS'Y,REAR | 10011- | |
| 29 | 01220-40512 | SCREW | 10011- | |
| 30 | 01601-20513 | WASHER,SPRING | 10011- | |
| 31 | 01641-20508 | WASHER | 10011- | |
| 32 | 08184-30400 | ARM | 10011- | |
| 33 | 08185-00400 | BLADE | 10011- |
