| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\154-Z11-X330) | STEEL CAB GROUP | 35001-35951 | |
| ==================== | ||||
| 154-Z11-0032 | STEEL CAB ASS'Y | 36467- | ||
| 154-Z11-0031 | STEEL CAB ASS'Y | 35952-36466 | ||
| \0\154-Z11-0030 | STEEL CAB ASS'Y | 35001-35951 | ||

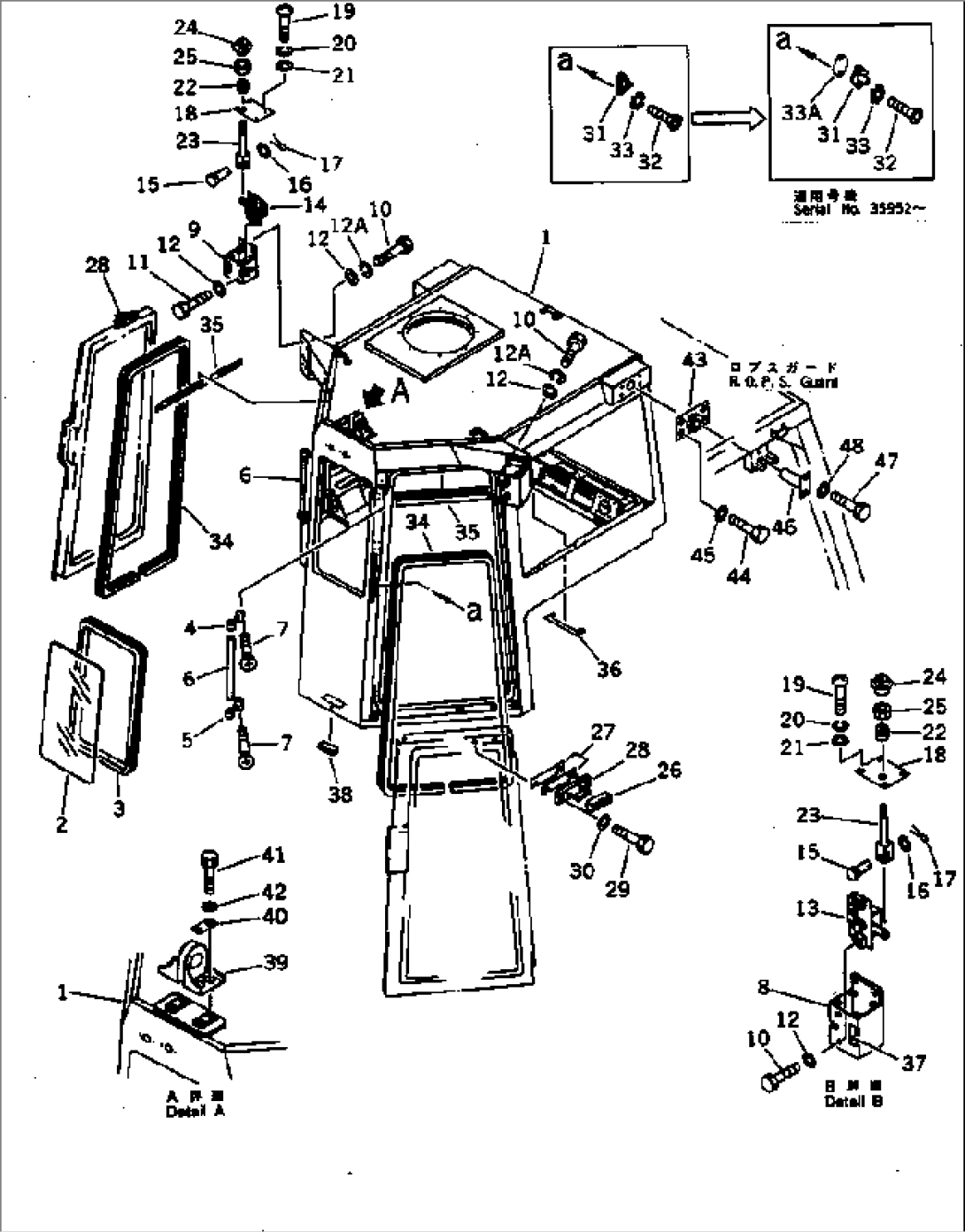

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5531 TO 5539. | ||||
| 1 | 154-Z11-5782 | CAB | 36467- | |
| 1 | 154-Z11-5780 | CAB | 35001-36466 | |
| 2 | 195-Z11-1211 | GLASS | 35952- | |
| 2 | 195-Z11-1210 | GLASS | 35001-35951 | |
| 3 | 195-Z11-1161 | STRIP,WEATHER | 35952- | |
| 3 | 195-Z11-1160 | STRIP,WEATHER | 35001-35951 | |
| 4 | 195-Z11-1510 | BRACKET | 35001- | |
| 5 | 195-Z11-1520 | BRACKET | 35001- | |
| 6 | 195-Z11-1530 | PIPE | 35001- | |
| 7 | 01225-30512 | SCREW | 35001- | |
| 8 | 154-Z11-1120 | BRACKET,L.H. | 35001- | |
| 9 | 154-Z11-1130 | BRACKET,R.H. | 35001- | |
| 10 | 01010-51025 | BOLT | 35001- | |
| 11 | 01010-51030 | BOLT | 35001- | |
| 12 | 01643-31032 | WASHER | 35001- | |
| 12A | 01602-21030 | WASHER | 35952- | |
| 13 | 195-Z11-1430 | LOCK,L.H. | 35001- | |
| 14 | 195-Z11-1440 | LOCK,R.H. | 35001- | |
| 15 | 04205-10825 | PIN | 35001- | |
| 16 | 01641-20812 | WASHER | 35001- | |
| 17 | 04050-12012 | PIN | 35001- | |
| 18 | 195-Z11-1450 | PLATE | 35001- | |
| 19 | 01220-40616 | SCREW | 35001- | |
| 20 | 01602-20619 | WASHER,SPRING | 35001- | |
| 21 | 01643-30623 | WASHER | 35001- | |
| 22 | 08037-01008 | GROMMET | 35001- | |
| 23 | 195-Z11-1460 | ROD | 35001- | |
| 24 | 170-43-17110 | BUTTON,THROTTLE | 35001- | |
| 25 | 01580-30605 | NUT | 35001- | |
| 26 | 154-Z11-1340 | RUBBER,L.H. | 35001- | |
| 26 | 154-Z11-1350 | RUBBER,R.H. | 35001- | |
| 27 | 195-Z11-1480 | SHIM, 1.6MM | 35001- | |
| 28 | 195-Z11-2750 | BRACKET | 35001- | |
| 29 | 01010-51040 | BOLT | 35001- | |
| 30 | 01643-31032 | WASHER | 35001- | |
| 31 | 195-Z11-4530 | STOPPER | 35952- | |
| 31 | 195-Z11-1620 | STOPPER | 35001-35951 | |
| 32 | 195-Z11-4560 | SCREW | 35952- | |
| 32 | 195-Z11-1740 | SCREW | 35001-35951 | |
| 33 | 566-54-13570 | WASHER | 35001- | |
| 33A | 195-Z11-4570 | SHIM, 1.6MM | 35952- | |
| 34 | 195-Z11-2110 | SEAL | 35001- | |
| 35 | 195-Z11-1870 | COVER | 35001- | |
| 36 | 195-Z11-2710 | SEAT | 35001- | |
| 37 | 09685-00001 | PLATE, OPERATING,OPERATING | 35001- | |
| 38 | 195-Z11-2740 | SEAT | 35001- | |
| ==================== | ||||
| G-2 | (\8\154-Z11-X200) | TURN OVER GROUP | 35001- | |
| ==================== | ||||
| 39 | 154-Z11-1160 | BRACKET | 35001- | |
| 40 | 154-Z11-1170 | SPACER | 35001- | |
| 41 | 01010-51235 | BOLT | 35001- | |
| 42 | 01643-31232 | WASHER | 35001- | |
| 43 | 154-Z11-1150 | BRACKET | 35001- | |
| 44 | 01010-51645 | BOLT | 35001- | |
| 45 | 21T-54-16150 | WASHER | 35001- | |
| 46 | 154-Z11-1140 | PIN | 35001- | |
| 47 | 01016-51260 | BOLT | 35001- | |
| 48 | 01643-31232 | WASHER | 35001- | |
| ==================== |
