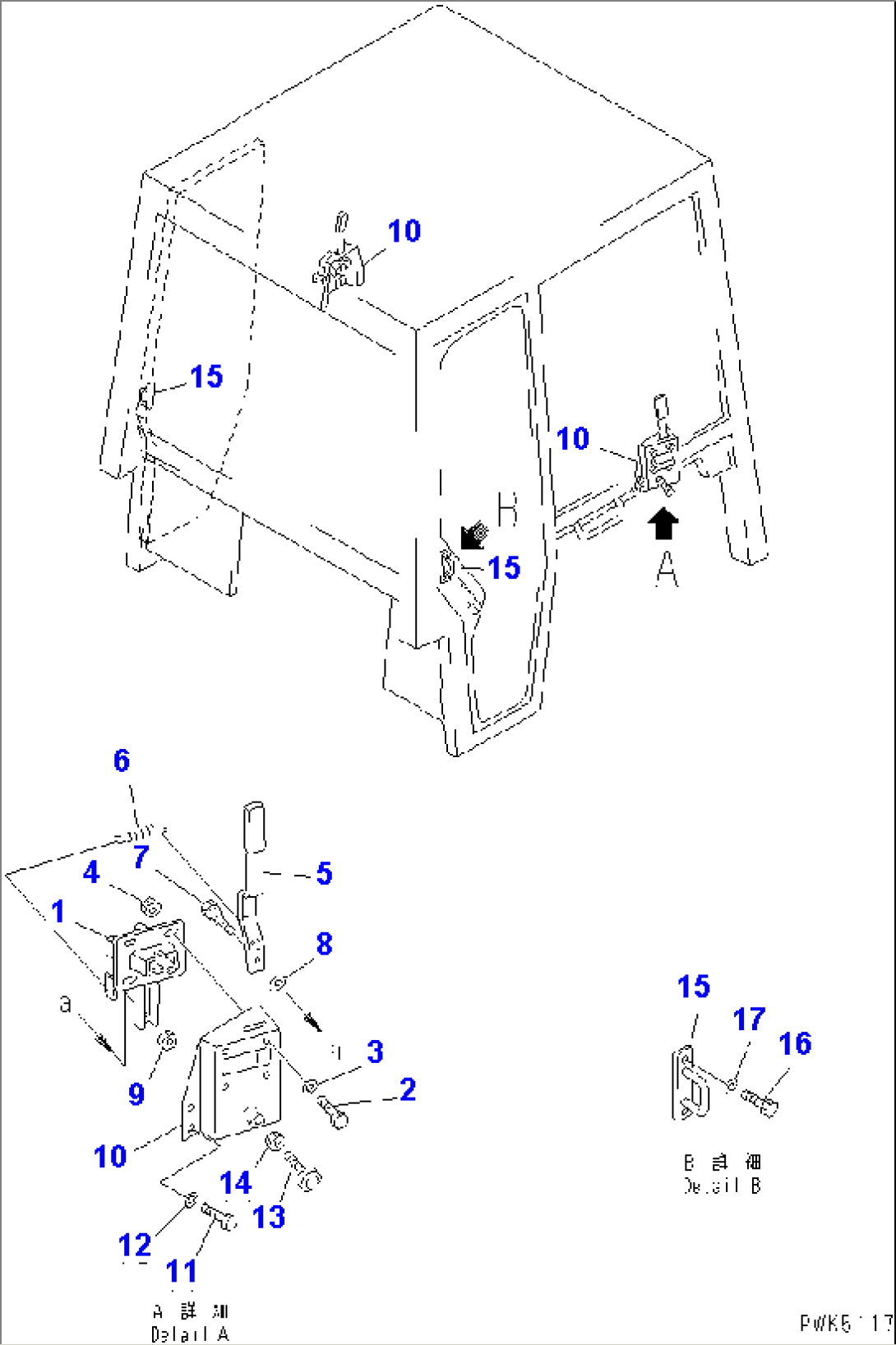

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 114-X11-1630 | LOCK ASS'Y,L.H. | 62454- | |
| 20T-54-74580 | LOCK ASS'Y,R.H. | 62454- | ||
| 2 | 01010-80825 | BOLT | 62454- | |
| 3 | 01643-30823 | WASHER | 62454- | |
| 4 | 01580-10806 | NUT | 62454- | |
| 5 | 114-X11-1660 | LEVER | 62454- | |
| 6 | 20Y-54-13550 | SPRING | 62454- | |
| 7 | 20Y-54-13560 | PIN | 62454- | |
| 8 | 01641-20812 | WASHER | 62454- | |
| 9 | 01580-10605 | NUT | 62454- | |
| 10 | 114-X11-1640 | BRACKET,L.H. | 62454- | |
| 114-X11-1650 | BRACKET,R.H. | 62454- | ||
| 11 | 01010-81020 | BOLT | 62454- | |
| 12 | 01643-31032 | WASHER | 62454- | |
| 13 | 20T-54-75290 | STOPPER | 62454- | |
| 14 | 20T-54-74550 | NUT | 62454- | |
| 15 | 114-X11-1590 | STRIKER | 62454- | |
| 16 | 01010-80820 | BOLT | 62454- | |
| 17 | 01643-30823 | WASHER | 62454- |
