| Item | Part No. | Part Name | Qty | Serial No. |
| 273-950-0012 | OPERATOR'S CAB ASS'Y | 10302- | ||
| 273-950-0011 | OPERATOR'S CAB ASS'Y | 10235-10301 | ||
| 273-950-0010 | OPERATOR'S CAB ASS'Y | 10011-10234 | ||

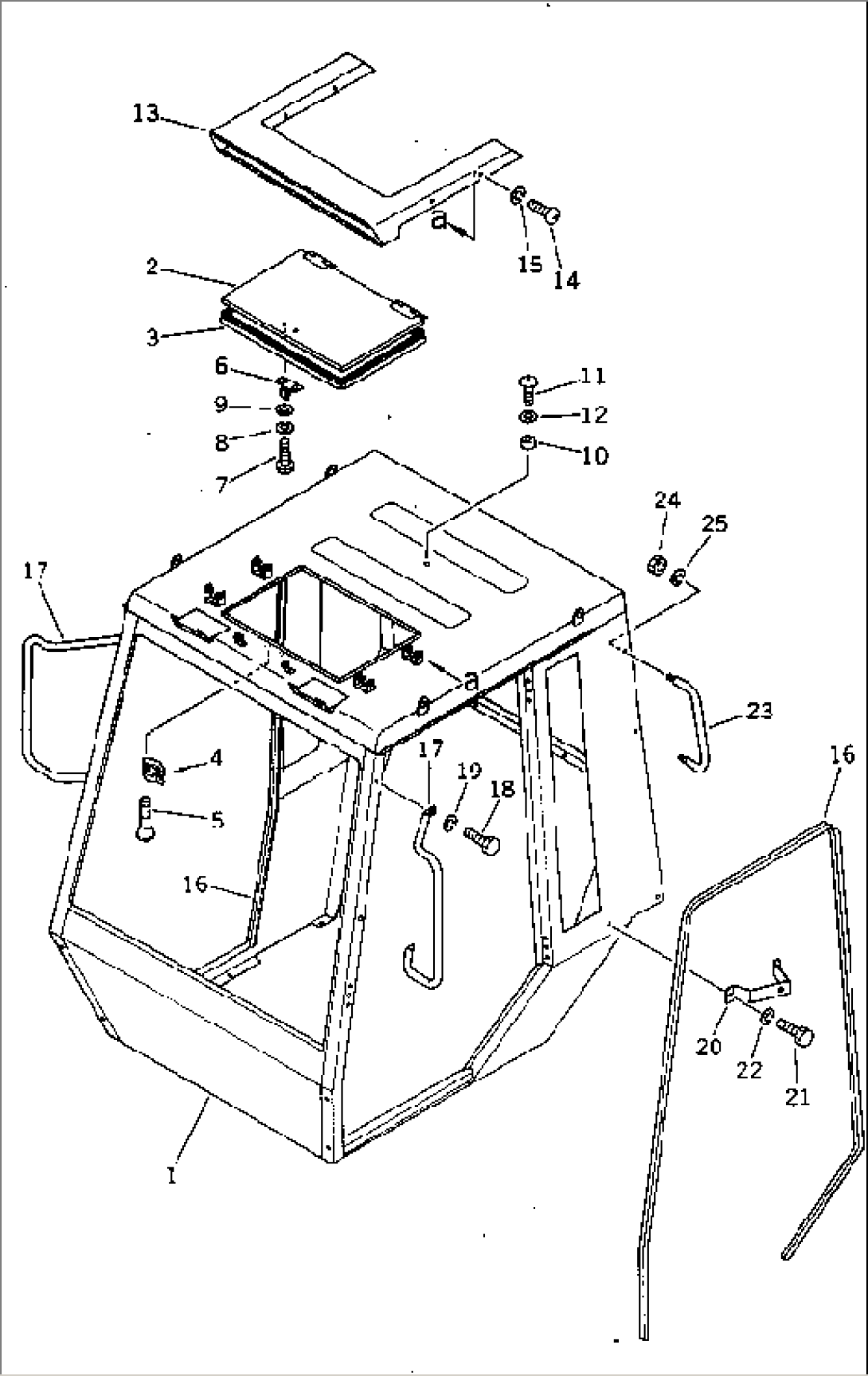

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5441 TO 5459. | ||||
| 273-950-1000 | CAB ASS'Y | 10011- | ||
| 1 | 273-950-1101 | CAB | 10235- | |
| 273-950-1100 | CAB | 10011-10234 | ||
| 2 | 273-950-1160 | DOOR | 10011- | |
| 3 | 273-950-1170 | TRIM | 10011- | |
| 4 | 273-950-1910 | CRESCENT | 10011- | |
| 5 | 01225-40510 | SCREW | 10011- | |
| 6 | 273-950-1920 | HOOK | 10011- | |
| 7 | 01220-40512 | SCREW | 10011- | |
| 8 | 01601-20513 | WASHER,SPRING | 10011- | |
| 9 | 01641-20508 | WASHER | 10011- | |
| 10 | 203-54-11280 | BOSS | 10011- | |
| 11 | 01220-40416 | SCREW | 10011- | |
| 12 | 01641-20405 | WASHER | 10011- | |
| 13 | 273-950-1181 | COVER | 10235- | |
| 273-950-1180 | COVER | 10011-10234 | ||
| 14 | 01220-40512 | SCREW | 10011- | |
| 15 | 01641-20508 | WASHER | 10011- | |
| 16 | 273-950-1380 | TRIM | 10011- | |
| 17 | 273-950-1410 | BRACKET,L.H. | 10011- | |
| 273-950-1420 | BRACKET,R.H. | 10011- | ||
| 18 | 01010-51020 | BOLT | 10011- | |
| 19 | 01643-31032 | WASHER | 10011- | |
| 20 | 273-950-1460 | BRACKET | 10011- | |
| 21 | 01010-51025 | BOLT | 10011- | |
| 22 | 01643-31032 | WASHER | 10011- | |
| 23 | 273-950-1450 | HANDLE | 10011- | |
| 24 | 01580-11008 | NUT | 10011- | |
| 25 | 01643-31032 | WASHER | 10011- |
