| Item | Part No. | Part Name | Qty | Serial No. |
| (273-950-0012) | OPERATOR'S CAB ASS'Y | 30046- | ||
| (273-950-0011) | OPERATOR'S CAB ASS'Y | 30003-30045 | ||

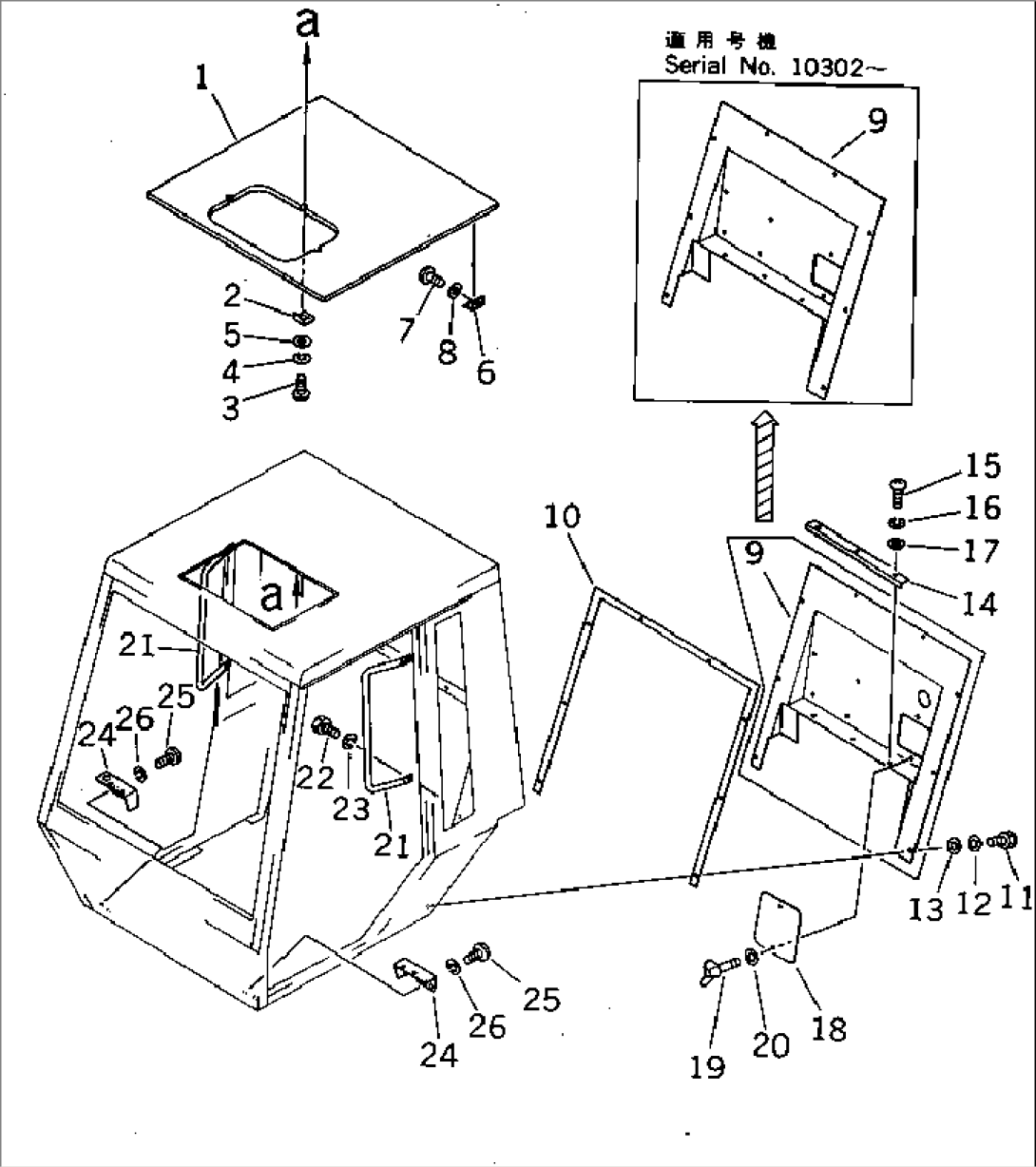

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5441 TO 5459. | ||||
| 1 | 273-950-2410 | BOARD | 30003- | |
| 2 | 20T-54-25440 | PLATE | 30003- | |
| 3 | 01220-40410 | SCREW | 30003- | |
| 4 | 01601-20410 | WASHER,SPRING | 30003- | |
| 5 | 01641-20405 | WASHER | 30003- | |
| 6 | 20T-54-25390 | PLATE | 30003- | |
| 7 | 01370-00508 | SCREW | 30003- | |
| 8 | 01641-20508 | WASHER | 30003- | |
| 9 | 273-950-1211 | COVER | 30046- | |
| 273-950-1210 | COVER | 30003-30045 | ||
| 10 | 273-950-1220 | PACKING | 30003- | |
| 11 | 01010-51020 | BOLT | 30003- | |
| 12 | 01643-31032 | WASHER | 30003- | |
| 13 | 01641-21016 | WASHER | 30003- | |
| 14 | 273-950-1260 | COVER | 30003- | |
| 15 | 01220-40510 | SCREW | 30003- | |
| 16 | 01601-20513 | WASHER,SPRING | 30003- | |
| 17 | 01641-20508 | WASHER | 30003- | |
| 18 | 273-950-1230 | COVER | 30003- | |
| 19 | 01434-00825 | BOLT¤ WING,WING | 30003- | |
| 20 | 01641-20812 | WASHER | 30003- | |
| 21 | 273-950-1440 | HANDLE | 30003- | |
| 22 | 01010-51020 | BOLT | 30003- | |
| 23 | 01602-21030 | WASHER,SPRING | 30003- | |
| 24 | 273-950-1240 | COVER,L.H. | 30003- | |
| 273-950-1250 | COVER,R.H. | 30003- | ||
| 25 | 01370-00408 | SCREW | 30003- | |
| 26 | 01641-20405 | WASHER | 30003- |
