| Item | Part No. | Part Name | Qty | Serial No. |
| (273-950-0012) | OPERATOR'S CAB ASS'Y | 10302- | ||
| (273-950-0011) | OPERATOR'S CAB ASS'Y | 10235-10301 | ||
| (273-950-0010) | OPERATOR'S CAB ASS'Y | 10011-10234 | ||

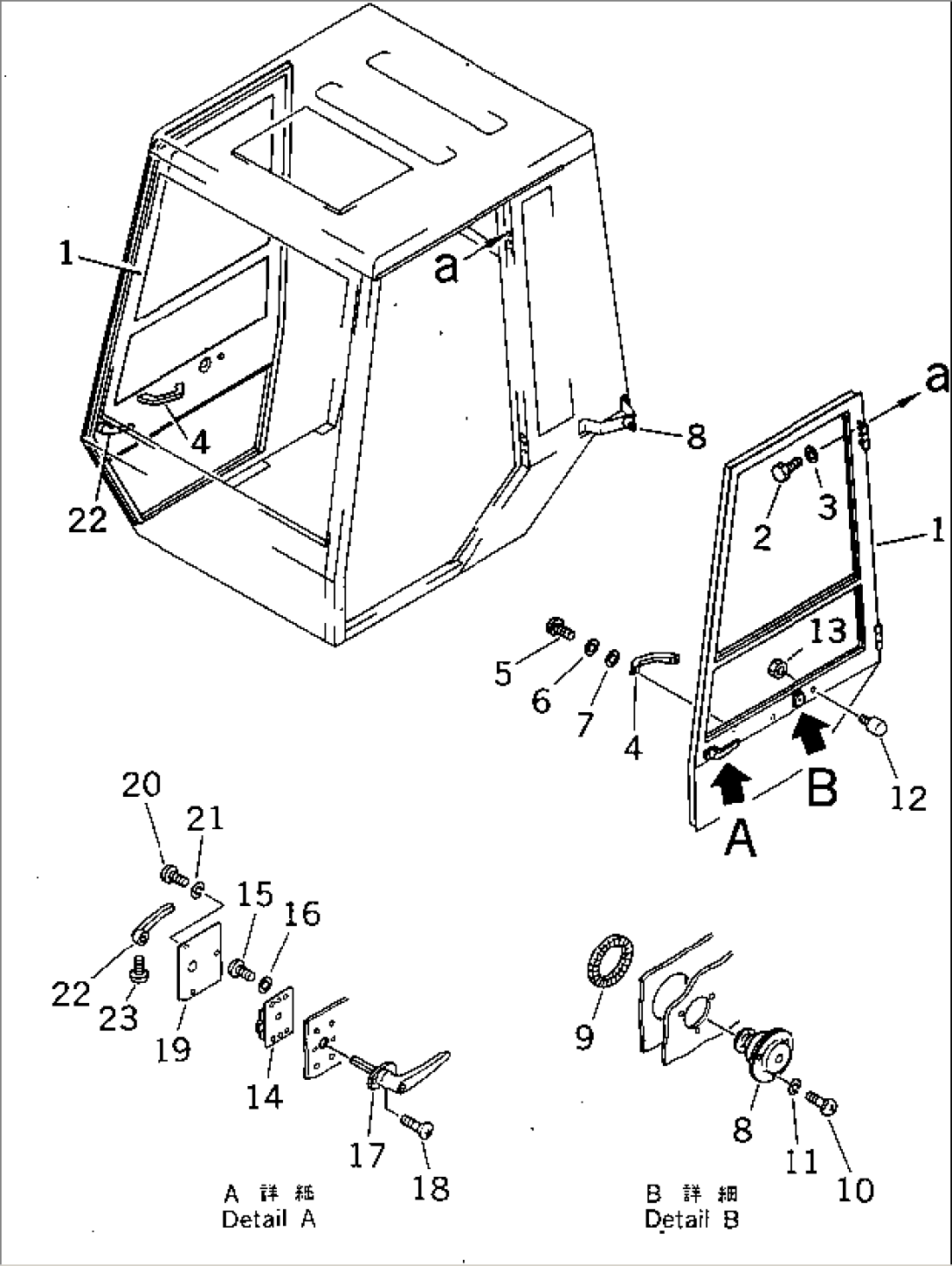

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5441 TO 5459. | ||||
| 1 | 273-950-1510 | DOOR,L.H. | 10011- | |
| 273-950-1520 | DOOR,R.H. | 10011- | ||
| 2 | 01010-51020 | BOLT | 10011- | |
| 3 | 01643-31032 | WASHER | 10011- | |
| 4 | 20N-54-39980 | GRIP | 10011- | |
| 5 | 01235-40616 | SCREW | 10011- | |
| 6 | 01641-20608 | WASHER | 10011- | |
| 7 | 01643-30623 | WASHER | 10011- | |
| 8 | 232-955-3370 | CATCHER ASS'Y | 10011- | |
| 9 | 273-950-1650 | GROMMET | 10011- | |
| 10 | 01220-40516 | SCREW | 10011- | |
| 11 | 01601-20513 | WASHER,SPRING | 10011- | |
| 12 | 21K-54-11310 | STOPPER | 10011- | |
| 13 | 01580-11210 | NUT | 10011- | |
| 14 | 26C-95-11850 | LOCK | .- | |
| \0\20T-54-25320 | LOCK | 10011-. | ||
| 15 | 01220-40612 | SCREW | 10011- | |
| 16 | 01643-30623 | WASHER | 10011- | |
| 17 | 273-950-1550 | HANDLE,L.H. | 10011- | |
| 273-950-1560 | HANDLE,R.H. | 10011- | ||
| 18 | 01225-40416 | SCREW | 10011- | |
| 19 | 273-950-1570 | COVER | 10011- | |
| 20 | 01220-40410 | SCREW | 10011- | |
| 21 | 01601-20410 | WASHER,SPRING | 10011- | |
| 22 | 09454-00011 | HANDLE,L.H. | 10011- | |
| 09454-00010 | HANDLE,R.H. | 10011- | ||
| 23 | 01220-40408 | SCREW | 10011- |
