| Item | Part No. | Part Name | Qty | Serial No. |
| (273-950-0012) | OPERATOR'S CAB ASS'Y | 30046- | ||
| (273-950-0011) | OPERATOR'S CAB ASS'Y | 30003-30045 | ||

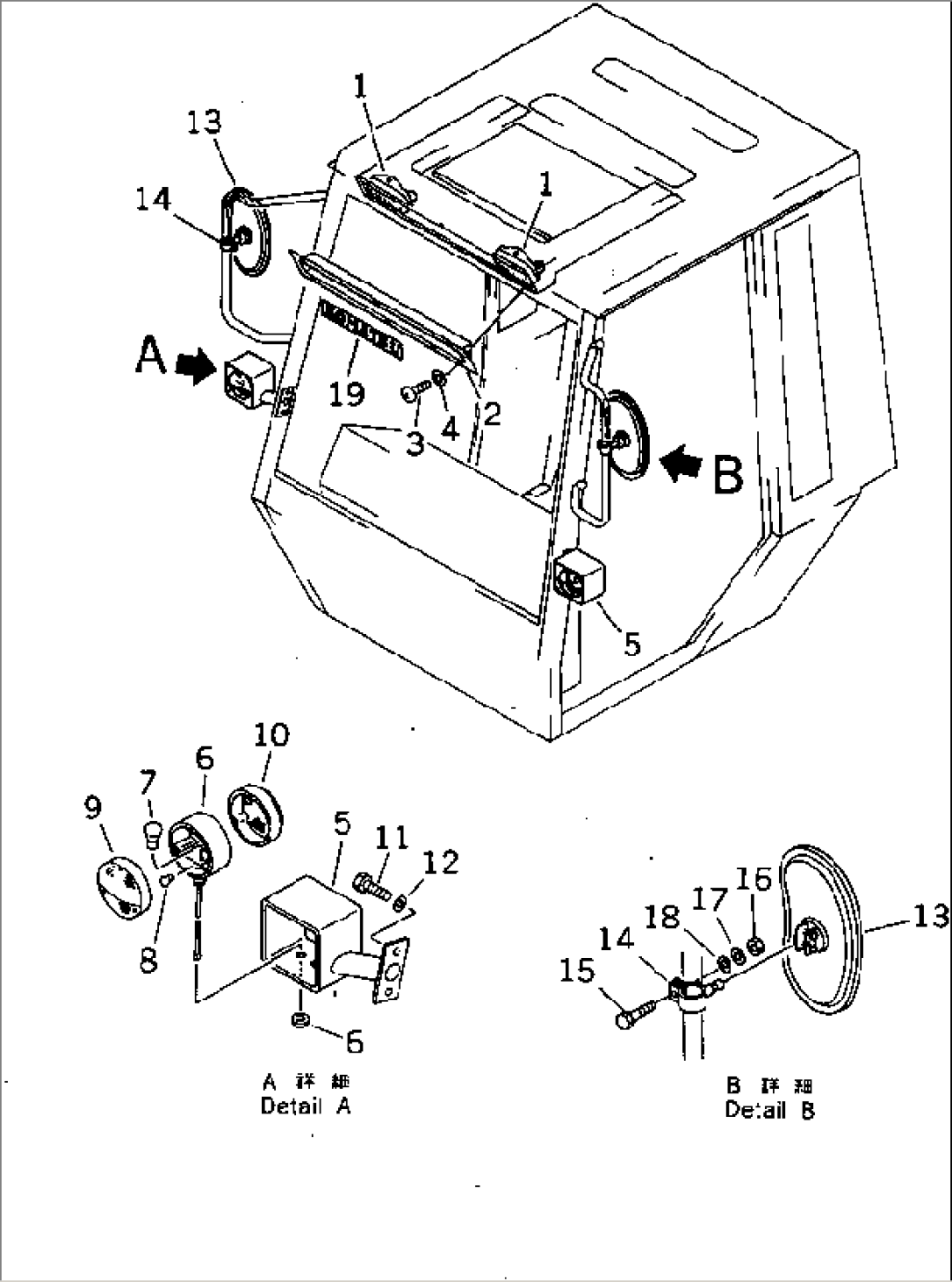

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5441 TO 5459. | ||||
| 1 | 23D-06-13350 | LAMP ASS'Y,WORK | ..- | |
| 22W-06-12381 | LAMP ASS'Y,WORK | .-.. | ||
| 273-950-2210 | LAMP ASS'Y,HEAD | 30003-. | ||
| 273-950-2220 | LENS | 30003- | ||
| 22W-06-12170 | BULB¤ 24V | .- | ||
| 08103-02460 | BULB¤ 35W | 30003-. | ||
| 2 | 273-950-2231 | COVER | 30003- | |
| 3 | 01370-00408 | SCREW | 30003- | |
| 4 | 01641-20405 | WASHER | 30003- | |
| 273-950-4100 | LAMP ASS'Y,COMBINATION | 30003- | ||
| 5 | 273-950-2330 | BRACKET,L.H. | 30003- | |
| 273-950-2340 | BRACKET,R.H. | 30003- | ||
| 6 | 273-06-12610 | LAMP ASS'Y | 30003- | |
| 7 | 08105-02420 | BULB¤ 25W | 30003- | |
| 8 | 08136-02405 | BULB¤ 5W | 30003- | |
| 9 | 08136-00006 | LENS,FRONT | 30003- | |
| 10 | 08136-00003 | LENS,REAR | 30003- | |
| 11 | 01010-51020 | BOLT | 30003- | |
| 12 | 01643-31032 | WASHER | 30003- | |
| 273-950-7100 | MIRROR ASS'Y,REAR VIEW | 30003- | ||
| 13 | 08174-10001 | MIRROR | 30003- | |
| 14 | 232-06-15151 | PIVOT | 30003- | |
| 15 | 01010-50820 | BOLT | 30003- | |
| 16 | 01580-10806 | NUT | 30003- | |
| 17 | 01643-30823 | WASHER | 30003- | |
| 18 | 01643-30823 | WASHER | 30003- | |
| 19 | 09690-10355 | PLATE¤ MARK,KOMATSU | 30003- |
