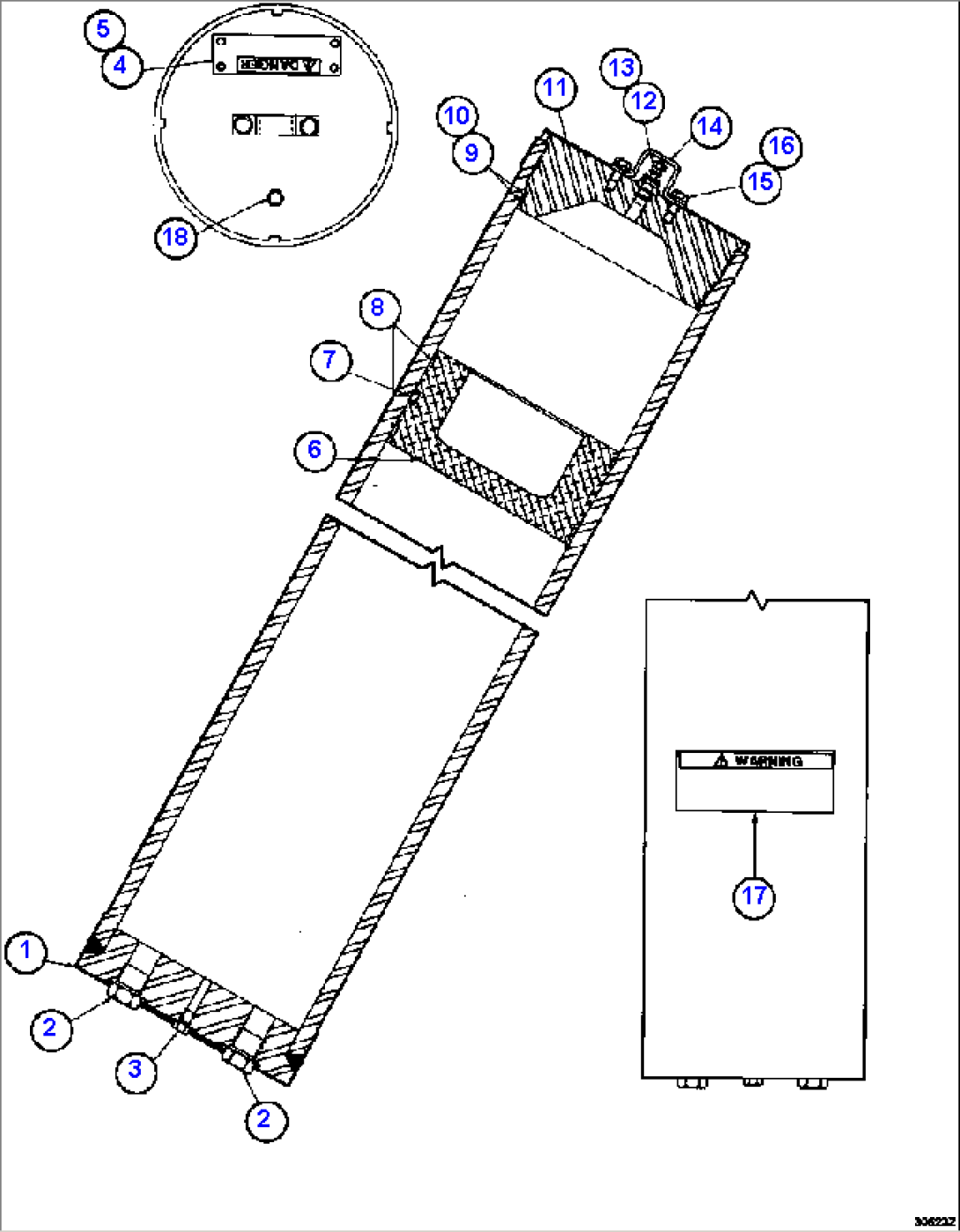

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | ED8928 | HOUSING | | |
| 2 | VM0317 | PLUG (1) | | |
| 3 | VM0313 | PLUG, O-RING BOSS (1) | | |
| 4 | WA2988 | PLATE, DANGER (ENGLISH) (1) | | |
| 4 | EG4016 | PLATE, HYDRAULIC HIGH PRESSURE WARNING (BAHASHA) | | |
| 5 | R1073 | SCREW, DRIVE | | |
| 6 | EF5497 | PISTON | | |
| 7 | PB6709 | SEAL ASSEMBLY (1) | | |
| 8 | PB6708 | BEARING (1) | | |
| 9 | WA0265 | O-RING (1) | | |
| 10 | WA1265 | RING, BACKUP (1) | | |
| 11 | EC2252 | GLAND | | |
| 12 | PB2194 | CHARGING VALVE ASSEMBLY (1) | | |
| 12 | TR9993 | CAP, VALVE | | |
| 12 | TD7179 | CORE, VALVE | | |
| 12 | WA0052 | O-RING | | |
| 12 | TF1144 | O-RING | | |
| 13 | VD5076 | GASKET (1) | | |
| 14 | TV1294 | GUARD, VALVE | | |
| 15 | VN9014 | CAPSCREW - 3/8" - 16NC X 5/8" | | |
| 16 | C0312 | LOCKWASHER - 3/8" | | |
| 17 | TY5888 | DECAL, WARNING (ENGLISH) (1) | | |
| 17 | WB2647 | DECAL, WARNING (BAHASHA) | | |
| 18 | VM0314 | PLUG, O-RING BOSS (1) | | |
| NS|25 | AK7793 | NOTE: (1) INCLUDED IN AK7793 STEERING ACCUMULATOR | | |
| NS|26 | | MAINTENANCE KIT. | | |
