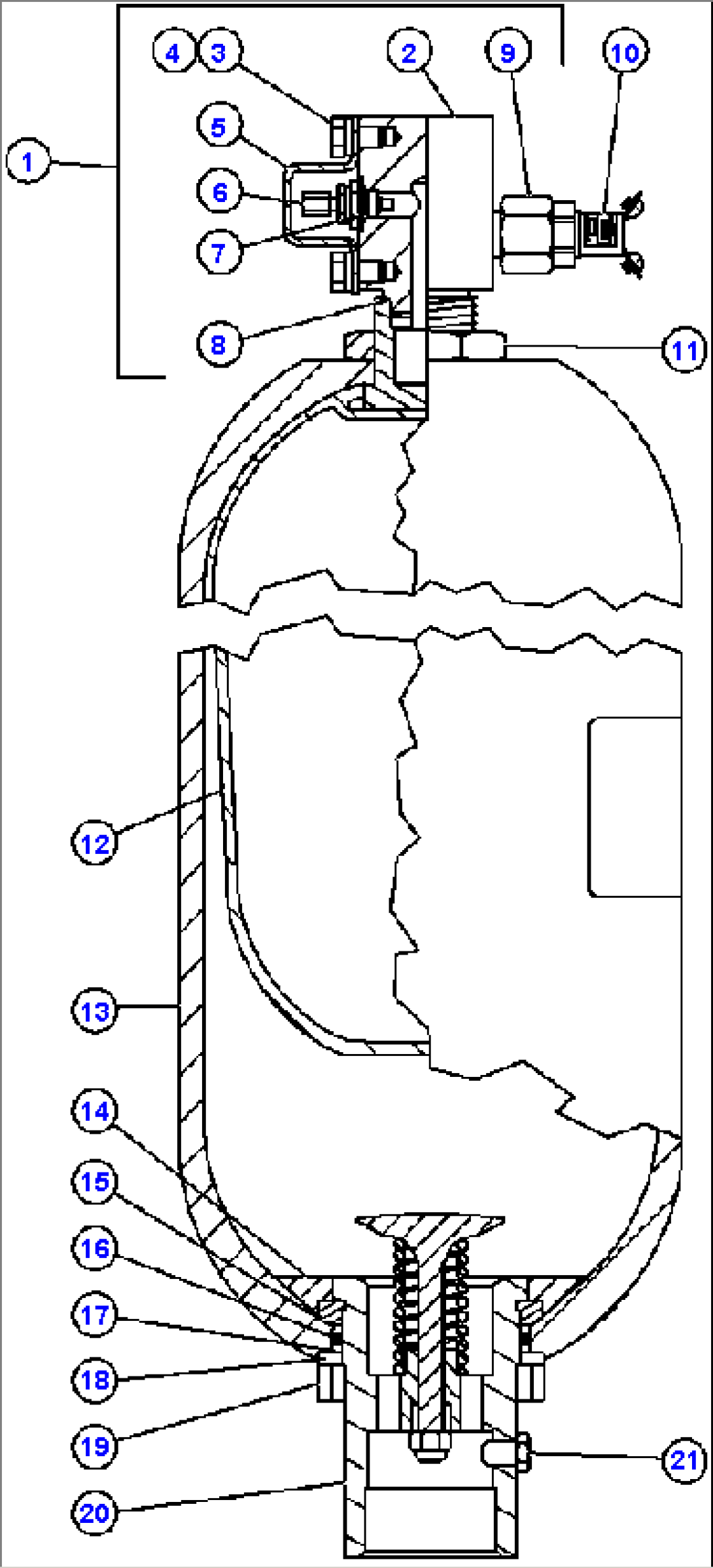

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XA2283 | GAS MANIFOLD KIT | ||
| 2 | EJ7887 | MANIFOLD, GAS VALVE | ||
| 3 | MM0603 | CAPSCREW - M10 X 1.50 | ||
| 4 | MM0471 | LOCKWASHER - M10 | ||
| 5 | TV1294 | GUARD | ||
| 6 | PB2194 | CHARGING VALVE ASSEMBLY (1) | ||
| 6 | TR9993 | CAP, VALVE | ||
| 6 | TD7179 | CORE, VALVE | ||
| 6 | TF1144 | O-RING - HOUSING | ||
| 6 | WA0052 | O-RING - VALVE STEM | ||
| 7 | VD5076 | GASKET (1) | ||
| 8 | TC9899 | O-RING | ||
| 9 | EC1015 | GAS VALVE ASSEMBLY | ||
| 9 | TD7179 | CORE, VALVE | ||
| 9 | EC1447 | BODY, VALVE | ||
| 9 | TL3995 | O-RING | ||
| 10 | PB8333 | SWITCH, PRESSURE (NOT INCLUDED IN ASSEMBLY) | ||
| 11 | XA0069 | NUT | ||
| 12 | XA0065 | BLADDER ASSEMBLY | ||
| 12 | AK4788 | KIT, BLADDER REPAIR | ||
| 13 | XA0068 | SHELL | ||
| 14 | XA0067 | RING, ANTI-EXTRUSHION | ||
| 15 | XA1929 | WASHER, BACKUP | ||
| 16 | XA0071 | O-RING | ||
| 17 | XA0072 | RING, BACKUP | ||
| 18 | XA0073 | SPACER | ||
| 19 | XA0074 | RING, LOCKING | ||
| 20 | XA0066 | VALVE PORT ASSEMBLY | ||
| 21 | XA0077 | PLUG, BLEED | ||
| NS|30 | RK1887 | NOTE: (1) INCLUDED IN RK1887 REPAIR KIT. |
