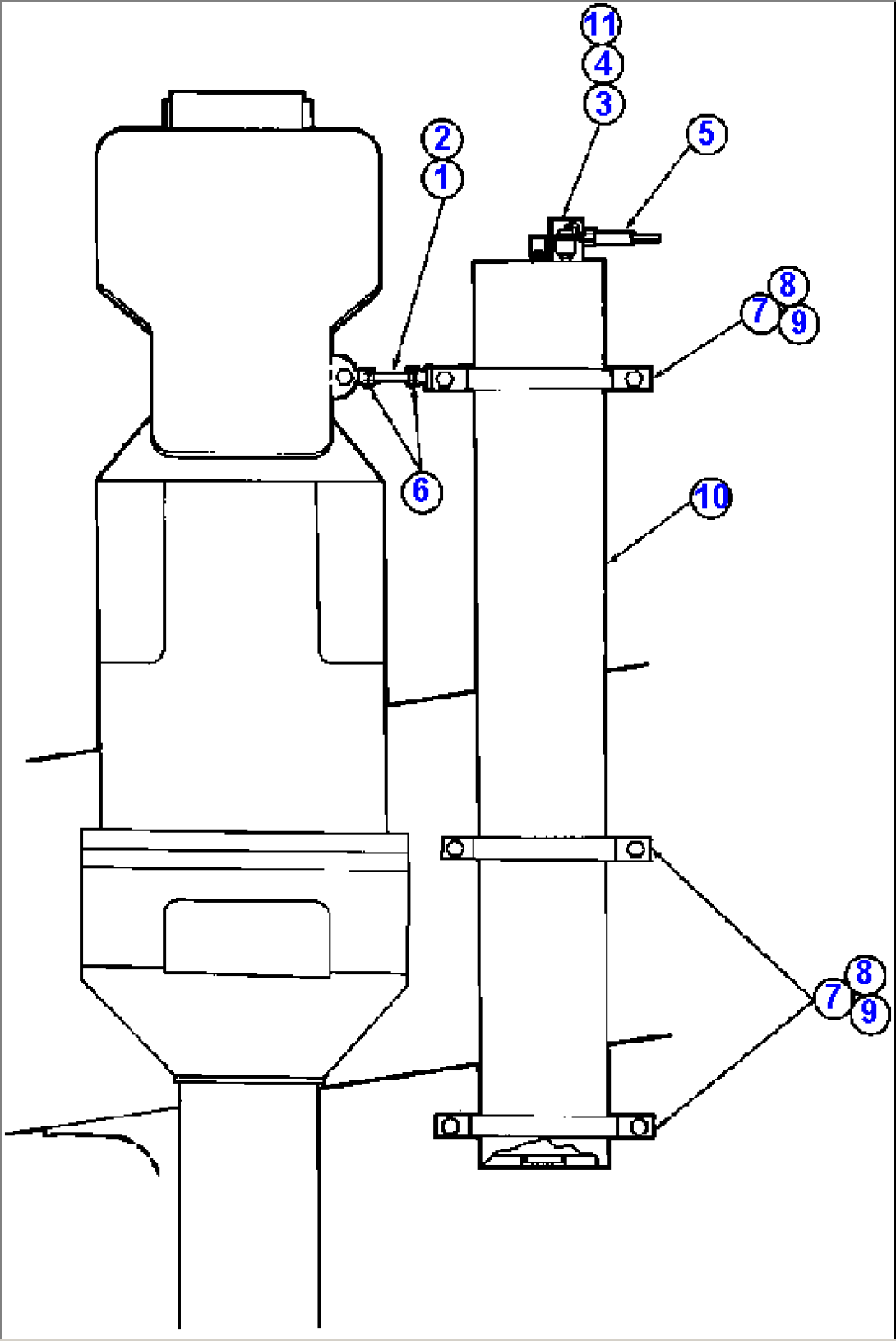

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TY8660 | ROD, THREADED | ||
| 2 | VC3040 | NUT, JAM - 3/4" - 16NF | ||
| 3 | TN6999 | COVER | ||
| 4 | PB8333 | SWITCH, PRESSURE (1) | ||
| 5 | CABLE, (TO INSTRUMENT PANEL) | |||
| 6 | WA1606 | END, ROD | ||
| 7 | VF8334 | CAPSCREW - 3/4" - 10NC X 2 3/4" | ||
| 8 | VL2993 | LOCKNUT - 3/4" - 10NC | ||
| 9 | TY8653 | BRACKET | ||
| 10 | TY3541 | ACCUMULATOR ASSEMBLY (SEE INDEX) | ||
| 11 | EC1015 | LOAD WEIGHING VALVE ASSEMBLY (1) | ||
| 11 | EC1447 | BODY, VALVE (2) | ||
| 11 | TD7179 | CORE, VALVE (2) | ||
| 11 | TL3995 | O-RING (2) | ||
| NS|15 | AK8290 | NOTE: (1) INCLUDED IN AK8290 REPAIR KIT. | ||
| NS|16 | EC1015 | (2) INCLUDED IN EC1015 REPAIR KIT. |
