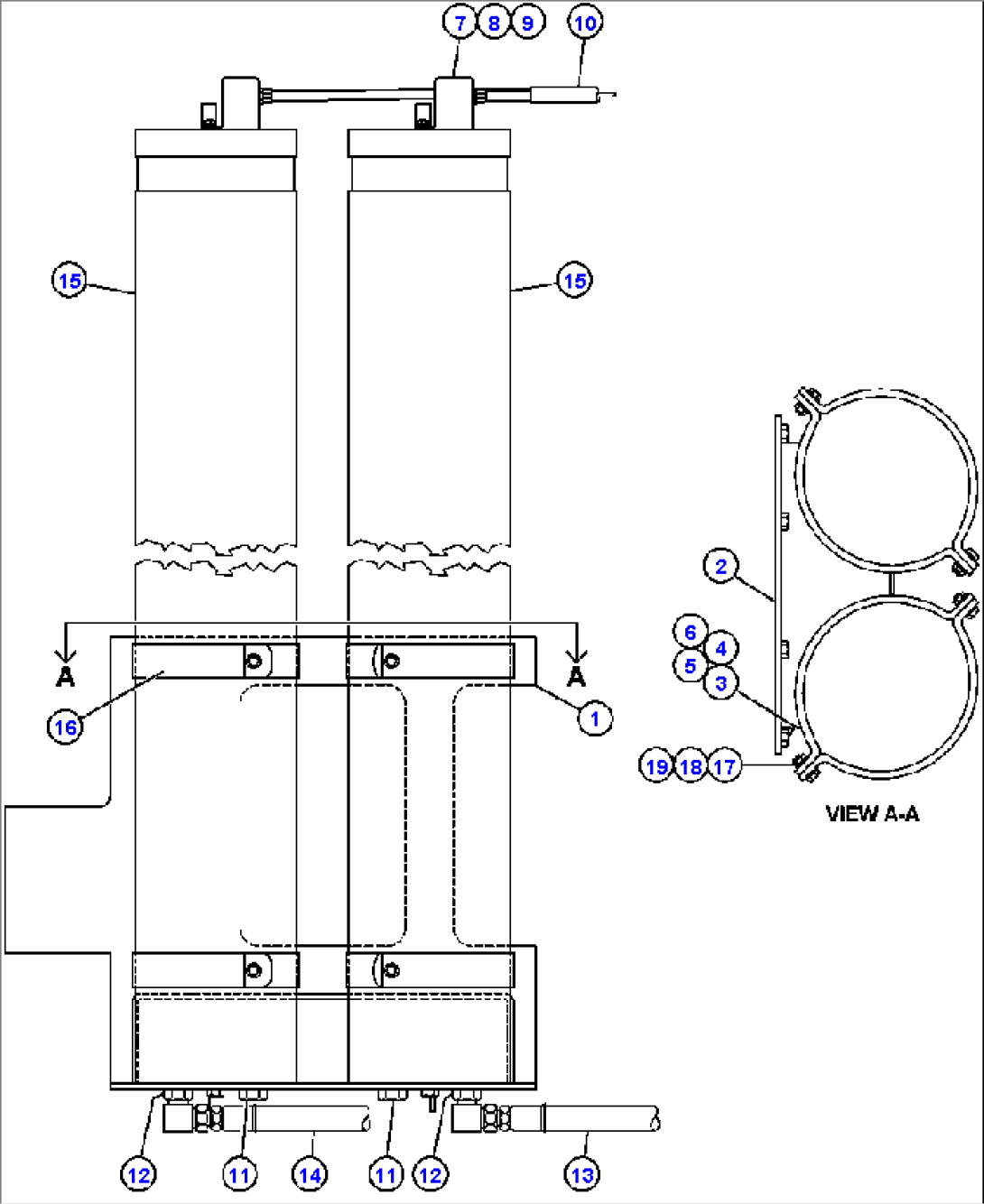

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EF9875 | BRACKET | ||
| 2 | EG3874 | CLAMP | ||
| 3 | C1602 | CAPSCREW - 3/8" - 16NC X 1" | ||
| 4 | WA0720 | FLAT WASHER - 3/8" | ||
| 5 | C0312 | LOCKWASHER - 3/8" | ||
| 6 | C1521 | NUT - 3/8" - 16NC | ||
| 7 | EC1015 | CHECK VALVE ASSEMBLY | ||
| 7 | EC1447 | BODY, VALVE | ||
| 7 | TD7179 | CORE, VALVE | ||
| 7 | TL3995 | O-RING | ||
| 8 | PB8333 | SWITCH, PRESSURE | ||
| 9 | TN6999 | COVER | ||
| 10 | EF4244 | HARNESS | ||
| 11 | VM0317 | PLUG, O-RING | ||
| 12 | WB0520 | FITTING, O-RING - 90 DEG | ||
| 13 | HA5514 | HOSE | ||
| 14 | HA3278 | HOSE | ||
| 15 | ED8926 | ACCUMULATOR ASSEMBLY (SEE INDEX) | ||
| 16 | EC3036 | CLAMP, HALF | ||
| 17 | C1633 | CAPSCREW - 5/8" - 11NC X 2 3/4" | ||
| 18 | WA0361 | FLAT WASHER - 5/8" | ||
| 19 | VN9952 | NUT, LOCKING - 5/8" - 11NC |
