| Item | Part No. | Part Name | Qty | Serial No. |
| (702-13-27000) | VALVE ASS'Y | 1242- | ||

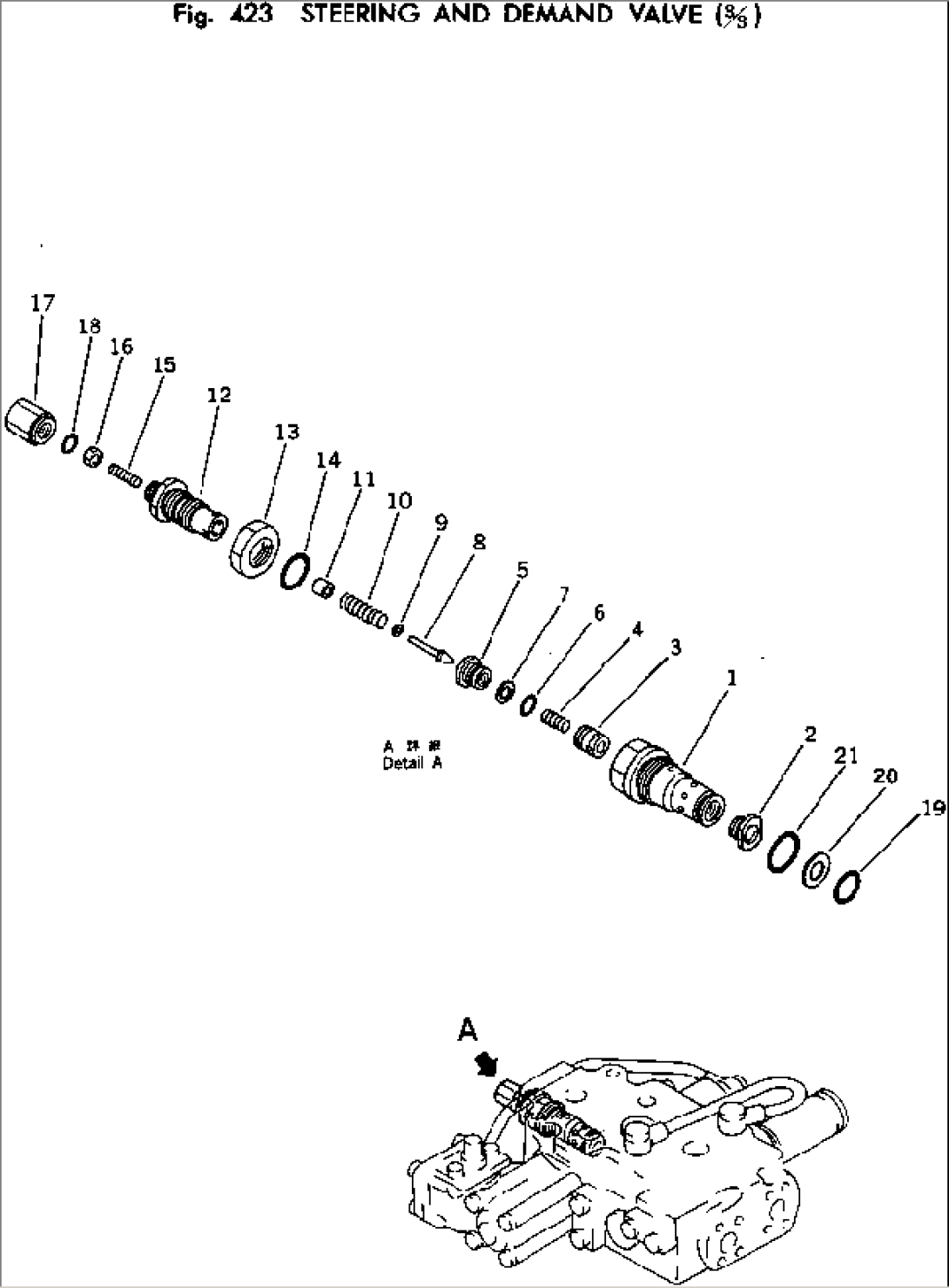

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.421A TO 423. | ||||
| (702-13-23000) | VALVE ASS'Y | 1102-1241 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.421, 422 AND 423. | ||||
| 700-81-52001 | VALVE ASS'Y,RELIEF | 1102- | ||
| 1 | \6\ | SLEEVE | 1102- | |
| 2 | \6\ | PLUG | 1102- | |
| 3 | \6\ | VALVE | 1102- | |
| 4 | \6\ | SPRING | 1102- | |
| 5 | \6\ | SEAT | 1102- | |
| 6 | \6\ | O-RING | 1102- | |
| 7 | \6\ | RING | 1102- | |
| 8 | \6\ | POPPET | 1102- | |
| 9 | \6\ | SPACER | 1102- | |
| 10 | \6\ | SPRING | 1102- | |
| 11 | \6\ | RETAINER | 1102- | |
| 12 | \6\ | HOLDER | 1102- | |
| 13 | \6\ | NUT | 1102- | |
| 14 | \6\ | O-RING | 1242- | |
| 14 | \6\ | O-RING | 1102-1241 | |
| 15 | \6\ | SCREW | 1102- | |
| 16 | \6\ | NUT | 1102- | |
| 17 | \6\ | COVER | 1102- | |
| 18 | \6\ | O-RING | 1242- | |
| 18 | \6\ | O-RING | 1102-1241 | |
| 19 | 700-13-31161 | O-RING | 1102- | |
| 20 | 700-80-51190 | RING | 1102- | |
| 21 | 07002-03334 | O-RING | 1242- | |
| 21 | 07002-23334 | O-RING | 1102-1241 |
