| Item | Part No. | Part Name | Qty | Serial No. |
| 702-21-21500 | Valve, Relief | 30001- | ||
| 1 | 702-21-21510 | Body, Valve | 30001- | |
| 2 | 706-73-85600 | Valve Assembly, Relief | 30001- | |
| 3 | 07000-22016 | O-ring | 30001- | |
| 4 | 07001-02016 | Ring, Back-up | 30001- | |
| 5 | 07002-22434 | O-ring | 30001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd465 8 s/n 30001 up
- Hydraulic system
- Steering and hoist hydraulic piping, cross over relief valve (#30001 )
Поиск по каталогу

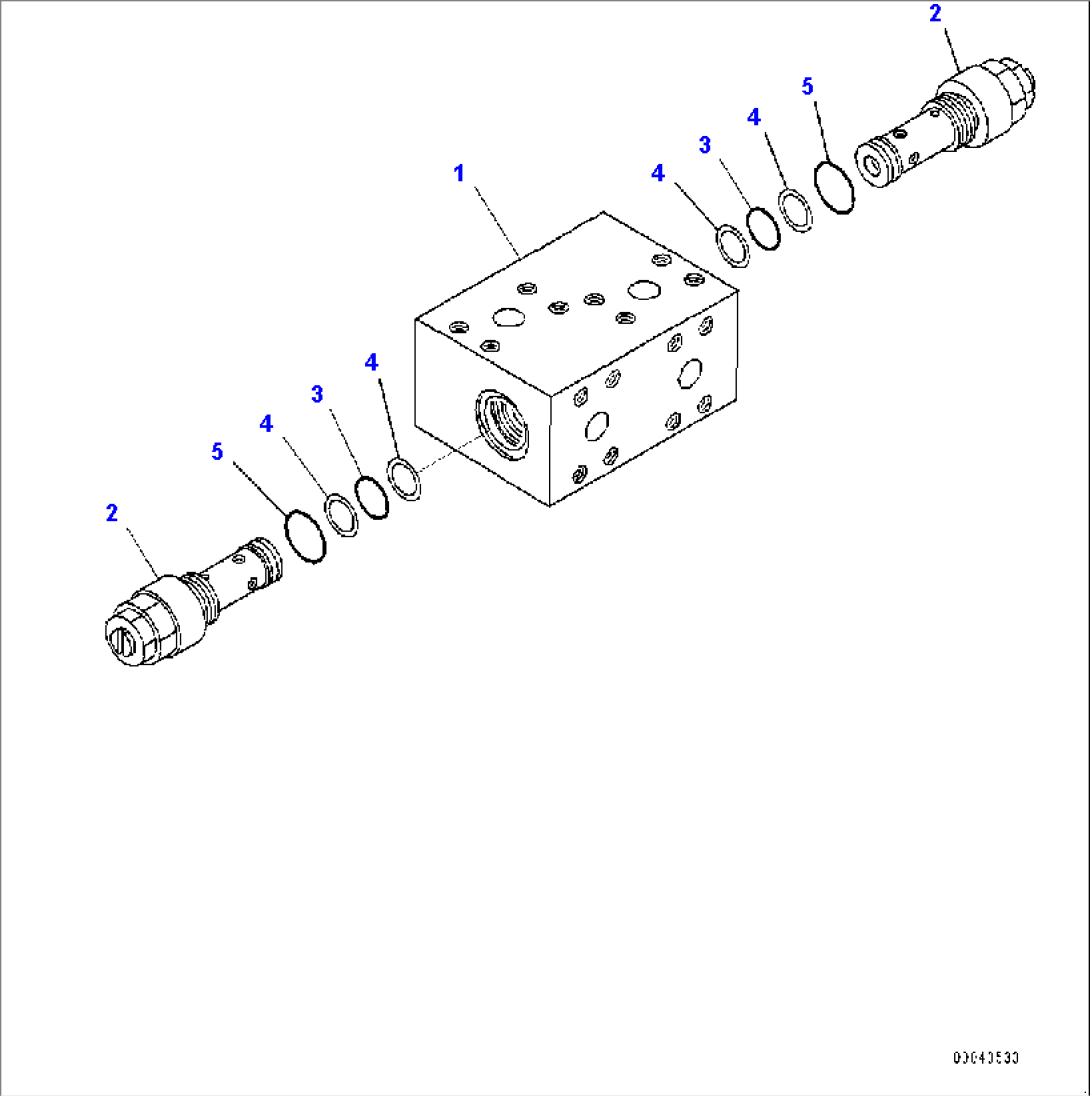

Steering and Hoist Hydraulic Piping, Cross Over Relief Valve (#30001-)
