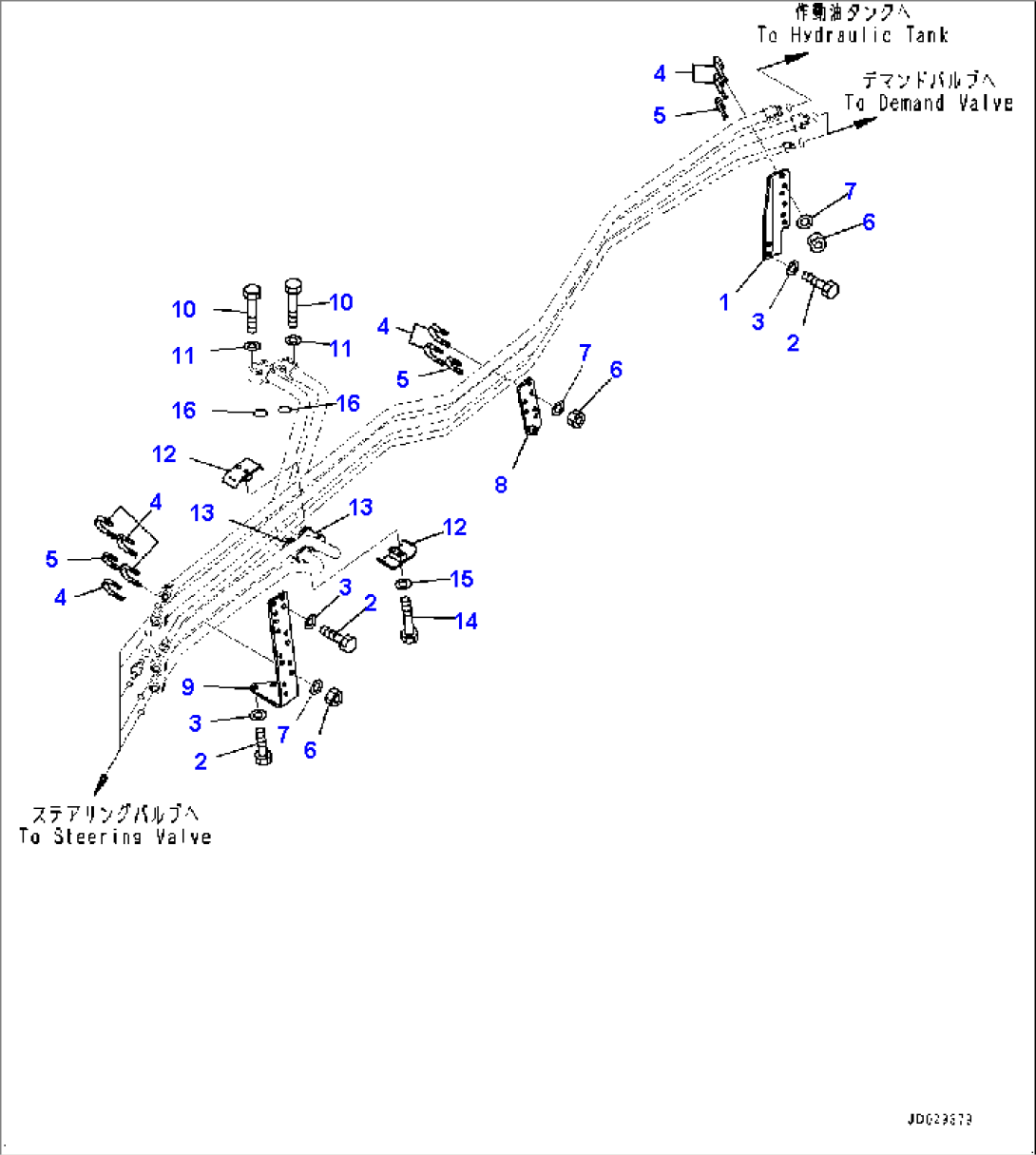

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-61-84210 | Bracket | 8173- | |
| 2 | 01010-81230 | Bolt | 8173- | |
| 3 | 01643-31232 | Washer | 8173- | |
| 4 | 07283-33442 | Clip, Pipe | 8173- | |
| 5 | 07283-32236 | Clip, Pipe | 8173- | |
| 6 | 01597-01009 | Nut | 8173- | |
| 7 | 01643-31032 | Washer | 8173- | |
| 8 | 561-44-87470 | Plate | 8173- | |
| 9 | 561-61-84230 | Bracket | 8173- | |
| 10 | 01010-81060 | Bolt | 8173- | |
| 11 | 01643-31032 | Washer | 8173- | |
| 12 | 07094-31024 | Clamp | 8173- | |
| 13 | 07095-01033 | Cushion | 8173- | |
| 14 | 01010-81275 | Bolt | 8173- | |
| 15 | 01643-31232 | Washer | 8173- | |
| 16 | 07000-F3035 | O-ring | 8173- |
