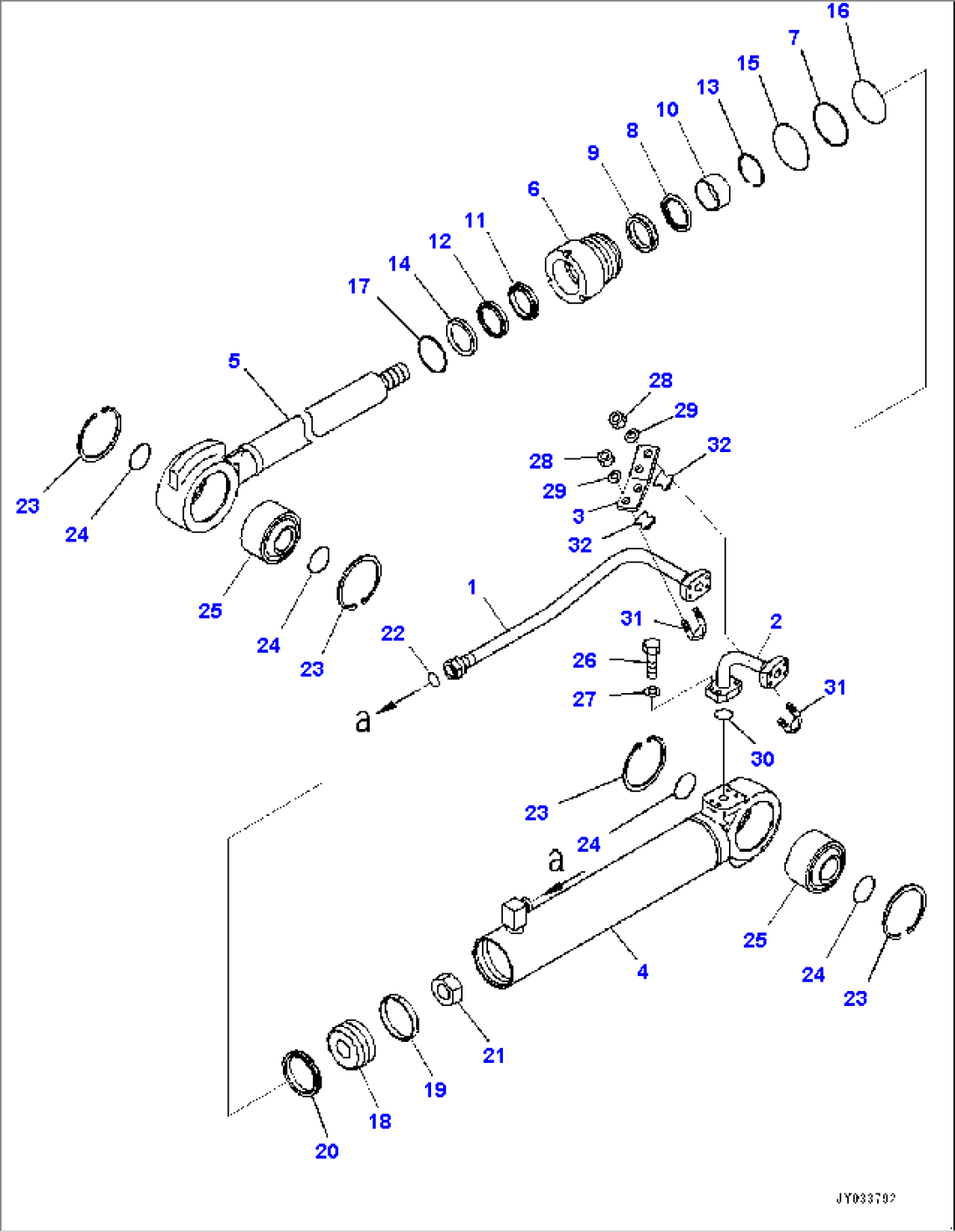

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 707-86-56330 | Tube | | 30001- |
| 2 | 707-86-56360 | Tube | | 30001- |
| 3 | 707-88-86790 | Plate | | 30001- |
| 3 | 707-G0-02450 | Cylinder Assembly | | 30001- |
| 4 | 707-11-85780 | Cylinder | | 30001- |
| 5 | 707-58-55C80 | Rod, Piston | | 30001- |
| 6 | 707-29-85400 | Head, Cylinder | | 30001- |
| 7 | 707-35-10810 | Ring, Back-up, (Kit : K04) | | 30001- |
| 8 | 707-51-55650 | Ring, Buffer, (Kit : K04) | | 30001- |
| 9 | 707-51-55860 | Packing, Rod, (Kit : K04) | | 30001- |
| 10 | 707-52-90301 | Bushing | | 30001- |
| 11 | 707-56-55740 | Seal, Dust, (Kit : K04) | | 30001- |
| 12 | 707-56-55820 | Seal, Dust, (Kit : K04) | | 30001- |
| 13 | 707-75-55110 | Ring, Snap | | 30001- |
| 14 | 707-88-41680 | Ring | | 30001- |
| 15 | 07000-12085 | O-ring, (Kit : K04) | | 30001- |
| 16 | 07000-B2080 | O-ring, (Kit : K04) | | 30001- |
| 17 | 07179-12069 | Ring, Snap | | 30001- |
| 18 | 707-36-85170 | Piston | | 30001- |
| 19 | 707-39-85120 | Ring, Wear, (Kit : K04) | | 30001- |
| 20 | 707-44-85150 | Ring, Piston, (Kit : K04) | | 30001- |
| 21 | 707-67-33040 | Nut | | 30001- |
| 22 | 02896-61015 | O-ring, (Kit : K04) | | 30001- |
| 23 | 04065-01030 | Ring, Snap | | 30001- |
| 24 | 07000-13045 | O-ring, (Kit : K04) | | 30001- |
| 25 | 07137-04507 | Bushing | | 30001- |
| 26 | 01010-80830 | Bolt | | 30001- |
| 27 | 01643-30823 | Washer | | 30001- |
| 28 | 01597-01009 | Nut | | 30001- |
| 29 | 01643-31032 | Washer | | 30001- |
| 30 | 07000-B3025 | O-ring, (Kit : K04) | | 30001- |
| 31 | 07283-32244 | Clip | | 30001- |
| 32 | 07283-52232 | Seat | | 30001- |
