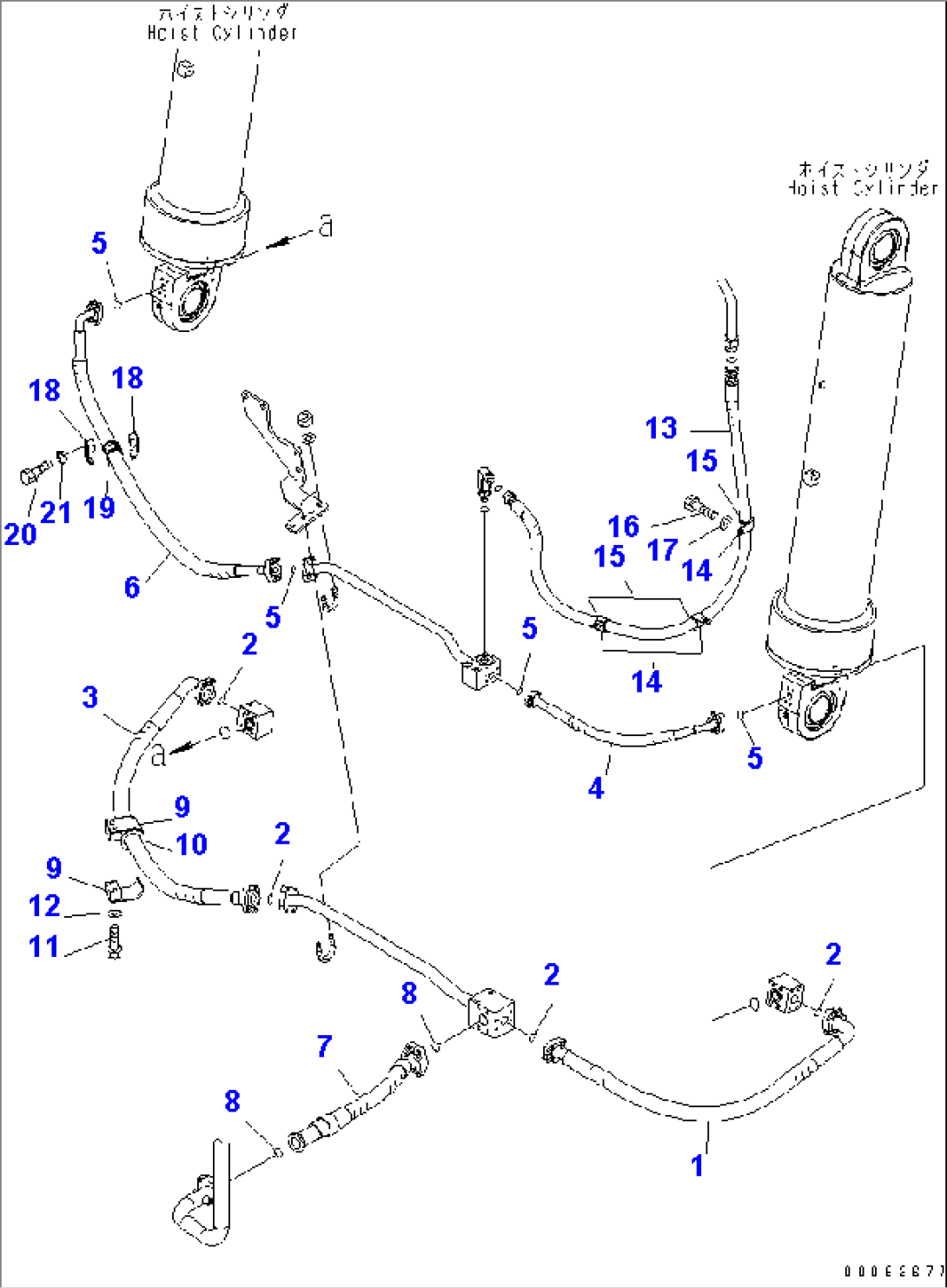

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07088-412A9 | HOSE | A10001- | |
| 2 | 07000-F3038 | O-RING | A10001- | |
| 3 | 07088-41212 | HOSE | A10001- | |
| 4 | 07088-406A6 | HOSE | A10001- | |
| 5 | 07000-F3025 | O-RING | A10001- | |
| 6 | 07088-406A9 | HOSE | A10001- | |
| 7 | 07087-01409 | HOSE | A10001- | |
| 8 | 07000-F3048 | O-RING | A10001- | |
| 9 | 07094-11432 | CLAMP | A10001- | |
| 10 | 07095-01449 | CUSHION | A10001- | |
| 11 | 01010-81290 | BOLT | A10001- | |
| 12 | 01643-31232 | WASHER | A10001- | |
| 13 | 02765-00619 | HOSE | A10001- | |
| 14 | 04434-53412 | CLIP | A10001- | |
| 15 | 07095-20627 | CUSHION | A10001- | |
| 16 | 01010-81220 | BOLT | A10001- | |
| 17 | 01643-31232 | WASHER | A10001- | |
| 18 | 07094-10620 | CLAMP | A10001- | |
| 19 | 07095-00630 | CUSHION | A10001- | |
| 20 | 01010-81275 | BOLT | A10001- | |
| 21 | 01643-31232 | WASHER | A10001- |
