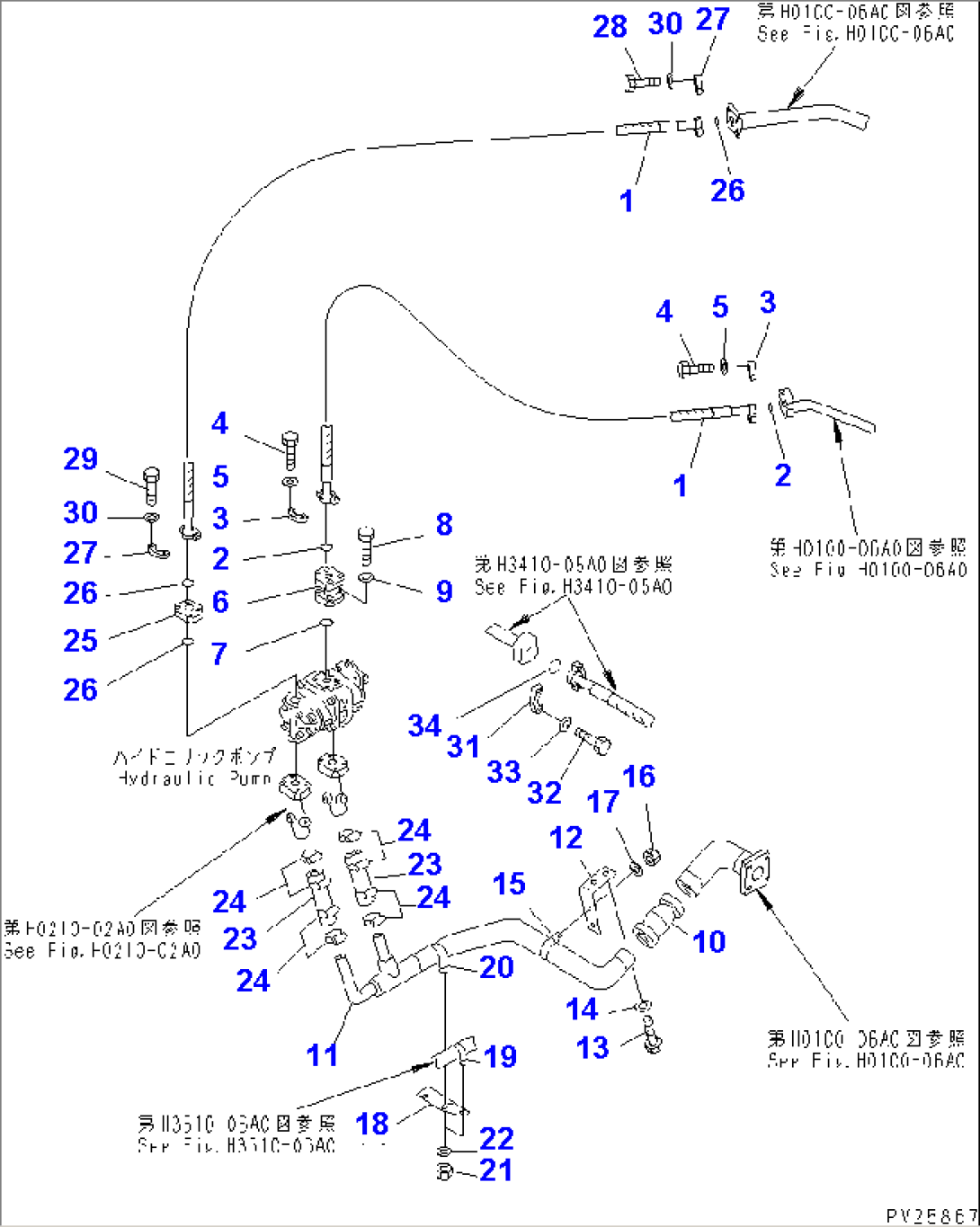

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07088-01408 | HOSE | 4001- | |
| 2 | 07000-23048 | O-RING | 4001- | |
| 3 | 07371-31465 | FLANGE | 4001- | |
| 4 | 07372-21240 | BOLT | 4001- | |
| 5 | 01643-51232 | WASHER | 4001- | |
| 6 | 561-61-62230 | TUBE | 4001- | |
| 7 | 07000-F3048 | O-RING | 4001- | |
| 8 | 07372-21245 | BOLT | 4001- | |
| 9 | 01643-51232 | WASHER | 4001- | |
| 10 | 07332-03400 | COUPLING | 4001- | |
| 07332-53400 | GASKET | 4001- | ||
| 07332-63400 | CLAMP | 4001- | ||
| 11 | 561-61-61131 | TUBE | 4001- | |
| 12 | 561-61-61250 | BRACKET | 4001- | |
| 13 | 01010-81025 | BOLT | 4001- | |
| 14 | 01643-31032 | WASHER | 4001- | |
| 15 | 07283-21079 | CLIP | 4001- | |
| 16 | 01597-01211 | NUT | 4001- | |
| 17 | 01643-31232 | WASHER | 4001- | |
| 18 | 561-61-61151 | PLATE | 4001- | |
| 19 | 07283-27663 | CLIP | 4001- | |
| 20 | 07283-21079 | CLIP | 4001- | |
| 21 | 01599-01214 | NUT | 4001- | |
| 22 | 01643-31232 | WASHER | 4001- | |
| 23 | 07260-25822 | HOSE | 4001- | |
| 24 | 205-09-61120 | CLAMP | 4001- | |
| 25 | 07373-11400 | SPACER | 4001- | |
| 26 | 07000-23048 | O-RING | 4001- | |
| 27 | 07371-31465 | FLANGE | 4001- | |
| 28 | 07372-21240 | BOLT | 4001- | |
| 29 | 07372-21245 | BOLT | 4001- | |
| 30 | 01643-51232 | WASHER | 4001- | |
| 31 | 07371-31465 | FLANGE | 4001- | |
| 32 | 07372-21240 | BOLT | 4001- | |
| 33 | 01643-51232 | WASHER | 4001- | |
| 34 | 07000-F3048 | O-RING | 4001- |
