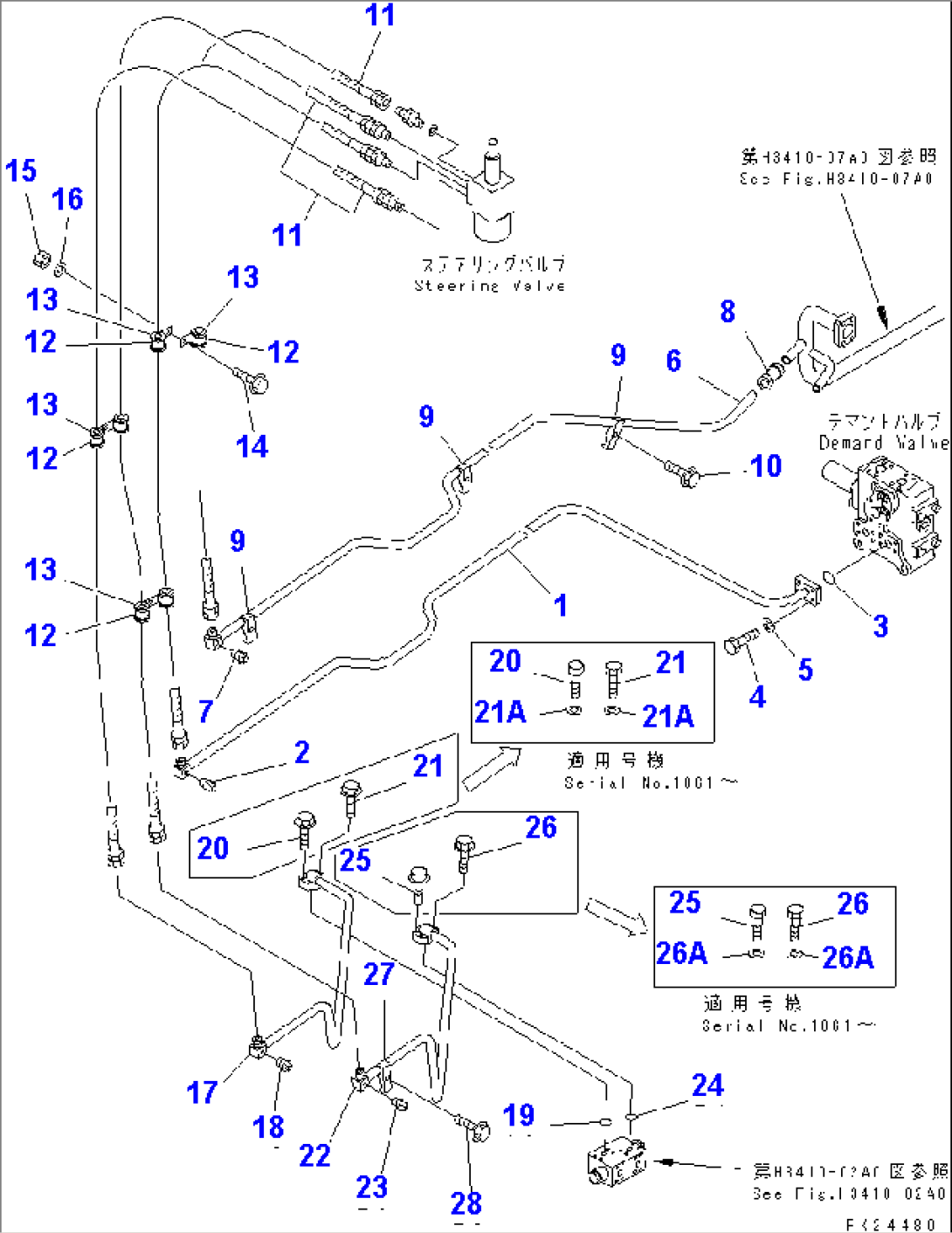

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-61-71210 | TUBE | 1001-1600 | |
| 2 | 07042-20108 | PLUG | 1001-1600 | |
| 3 | 07000-F3032 | O-RING | 1001-@ | |
| 4 | 07372-21040 | BOLT | 1001-@ | |
| 5 | 01643-51032 | WASHER | 1001-@ | |
| 6 | 567-61-71220 | TUBE | 1001-1600 | |
| 7 | 07042-20108 | PLUG | 1001-1600 | |
| 8 | 07332-00400 | COUPLING ASS'Y | 1001-@ | |
| 8 | 07332-50400 | GASKET | 1001-@ | |
| 8 | 07332-60400 | CLAMP | 1001-@ | |
| 9 | 208-62-17630 | CLAMP | 1001-@ | |
| 10 | 01435-01235 | BOLT | 1001-@ | |
| 11 | 07086-00410 | HOSE | 1201-@ | |
| 11 | 07086-40410 | HOSE | 1001-1200 | |
| 12 | 08036-03014 | CLIP | 1201-@ | |
| 12 | 281-01-13180 | CLIP | 1001-1200 | |
| 13 | 566-06-41290 | INSULATOR | 1001-@ | |
| 14 | 01435-01016 | BOLT | 1001-@ | |
| 15 | 01643-31032 | WASHER | 1001-@ | |
| 16 | 01580-11008 | NUT | 1001-@ | |
| 17 | 567-61-71230 | TUBE | 1001-1600 | |
| 18 | 07042-20108 | PLUG | 1001-1600 | |
| 19 | 07000-F3025 | O-RING | 1001-@ | |
| 20 | 01010-80835 | BOLT | 1061-1600 | |
| 20 | 01435-00830 | BOLT | 1001-1060 | |
| 21 | 01010-80845 | BOLT | 1061-@ | |
| 21 | 01435-00840 | BOLT | 1001-1060 | |
| 21A | 01643-30823 | WASHER | 1061-@ | |
| 22 | 567-61-71240 | TUBE | 1001-1600 | |
| 23 | 07042-20108 | PLUG | 1001-1600 | |
| 24 | 07000-F3025 | O-RING | 1001-@ | |
| 25 | 01010-80845 | BOLT | 1061-@ | |
| 25 | 01435-00840 | BOLT | 1001-1060 | |
| 26 | 01010-80835 | BOLT | 1061-1600 | |
| 26 | 01435-00830 | BOLT | 1001-1060 | |
| 26A | 01643-30823 | WASHER | 1061-@ | |
| 27 | 208-62-17630 | CLAMP | 1001-@ | |
| 28 | 01435-01235 | BOLT | 1001-@ |
