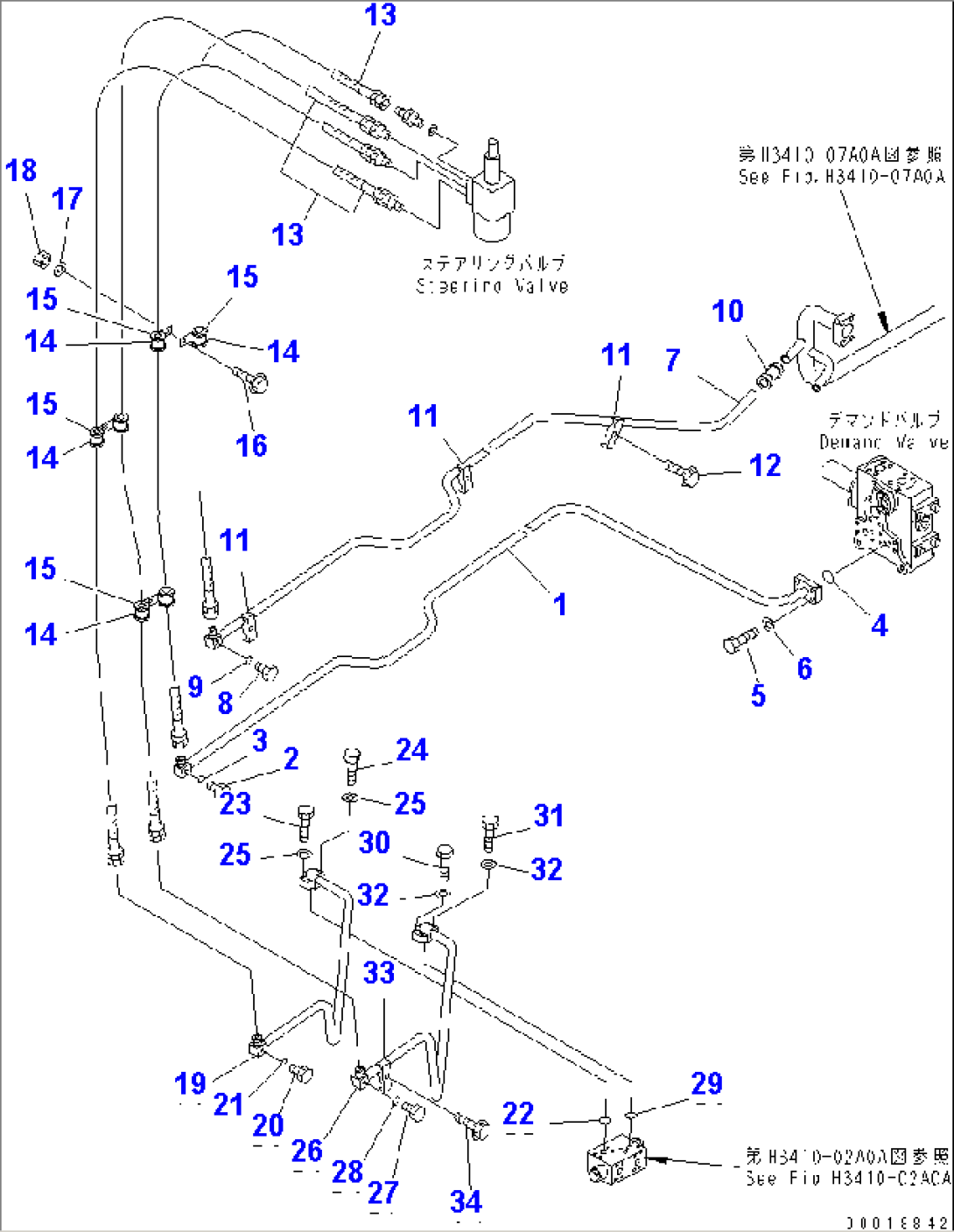

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-61-71211 | TUBE | 1601- | |
| 2 | 07040-11007 | PLUG | 1601- | |
| 3 | 07002-21023 | O-RING | 1601- | |
| 4 | 07000-F3032 | O-RING | 1001- | |
| 5 | 07372-21040 | BOLT | 1001- | |
| 6 | 01643-51032 | WASHER | 1001- | |
| 7 | 567-61-71221 | TUBE | 1601- | |
| 8 | 07040-11007 | PLUG | 1601- | |
| 9 | 07002-21023 | O-RING | 1601- | |
| 10 | 07332-00400 | COUPLING ASS'Y | 1001- | |
| 07332-50400 | GASKET | 1001- | ||
| 07332-60400 | CLAMP | 1001- | ||
| 11 | 208-62-17630 | CLAMP | 1001- | |
| 12 | 01435-01235 | BOLT | 1001- | |
| 13 | 02765-00410 | HOSE | 1201- | |
| 14 | 08036-03014 | CLIP | 1201- | |
| 15 | 566-06-41290 | INSULATOR | 1001- | |
| 16 | 01435-01016 | BOLT | 1001- | |
| 17 | 01643-31032 | WASHER | 1001- | |
| 18 | 01580-11008 | NUT | 1001- | |
| 19 | 567-61-71231 | TUBE | 1601- | |
| 20 | 07040-11007 | PLUG | 1601- | |
| 21 | 07002-21023 | O-RING | 1601- | |
| 22 | 07000-F3025 | O-RING | 1001- | |
| 23 | 01010-80840 | BOLT | 1601- | |
| 24 | 01010-80845 | BOLT | 1061- | |
| 25 | 01643-30823 | WASHER | 1061- | |
| 26 | 567-61-71241 | TUBE | 1601- | |
| 27 | 07040-11007 | PLUG | 1601- | |
| 28 | 07002-21023 | O-RING | 1601- | |
| 29 | 07000-F3025 | O-RING | 1061- | |
| 30 | 01010-80845 | BOLT | 1061- | |
| 31 | 01010-80840 | BOLT | 1601- | |
| 32 | 01643-30823 | WASHER | 1061- | |
| 33 | 208-62-17630 | CLAMP | 1001- | |
| 34 | 01435-01235 | BOLT | 1001- |
