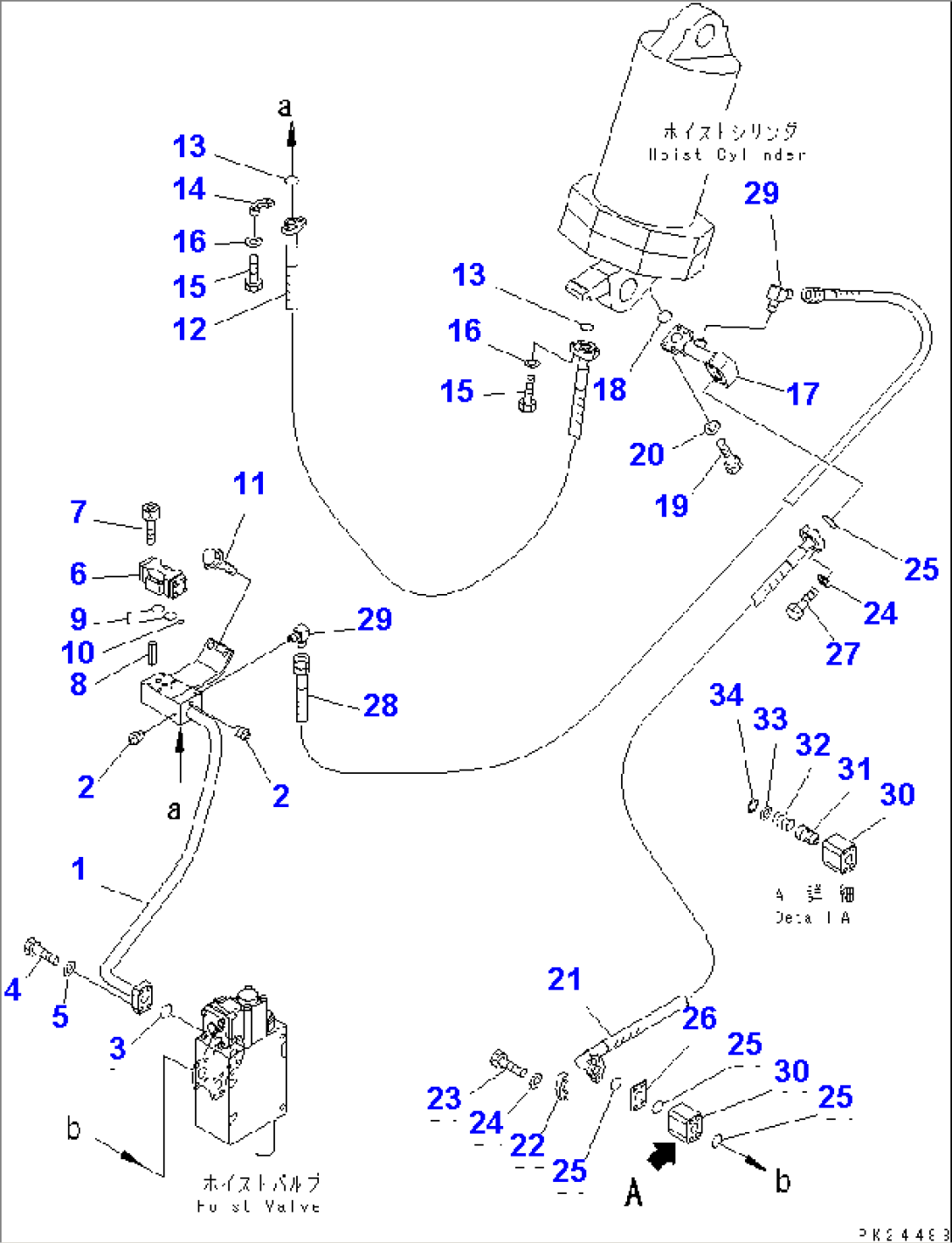

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-61-71410 | TUBE | 1001-1030 | |
| 2 | 07042-20108 | PLUG | 1001-1030 | |
| 3 | 07000-F3032 | O-RING | 1001-@ | |
| 4 | 07372-21040 | BOLT | 1001-@ | |
| 5 | 01643-51032 | WASHER | 1001-@ | |
| 6 | 567-60-71310 | VALVE | 1001-1030 | |
| 7 | 567-60-71320 | BOLT | 1001-1030 | |
| 8 | 567-60-71330 | PIN,SPRING | 1001-1030 | |
| 9 | 567-60-71340 | O-RING | 1001-1030 | |
| 10 | 567-60-71350 | O-RING | 1001-1030 | |
| 11 | 01435-01225 | BOLT | 1001-1030 | |
| 12 | 07088-00607 | HOSE | 1001-@ | |
| 13 | 07000-F3025 | O-RING | 1001-@ | |
| 14 | 07371-30638 | FLANGE | 1001-@ | |
| 15 | 01010-80830 | BOLT | 1001-@ | |
| 16 | 01643-50823 | WASHER | 1001-@ | |
| 17 | 567-61-71430 | TUBE | 1001-@ | |
| 18 | 07000-F3035 | O-RING | 1001-@ | |
| 19 | 07372-21060 | BOLT | 1001-1030 | |
| 20 | 01643-51032 | WASHER | 1001-@ | |
| 21 | 07088-01014 | HOSE | 1001-@ | |
| 22 | 07371-31049 | FLANGE,SPLIT | 1001-@ | |
| 23 | 07372-21035 | BOLT | 1001-@ | |
| 24 | 01643-51032 | WASHER | 1001-@ | |
| 25 | 07000-F3032 | O-RING | 1001-@ | |
| 26 | 566-61-43810 | FLANGE | 1001-@ | |
| 27 | 07372-21050 | BOLT | 1001-1030 | |
| 28 | 07086-00208 | HOSE | 1001-1030 | |
| 29 | 567-35-12160 | ELBOW | 1001-1030 | |
| 567-61-71340 | VALVE ASS'Y | 1001-@ | ||
| 30 | 205-60-51280 | BODY | 1001-@ | |
| 31 | 567-61-71350 | POPPET | 1001-@ | |
| 32 | 205-60-51310 | SPRING | 1001-@ | |
| 33 | 205-60-51320 | SEAT | 1001-@ | |
| 34 | 04065-02812 | RING,SNAP | 1001-@ |
